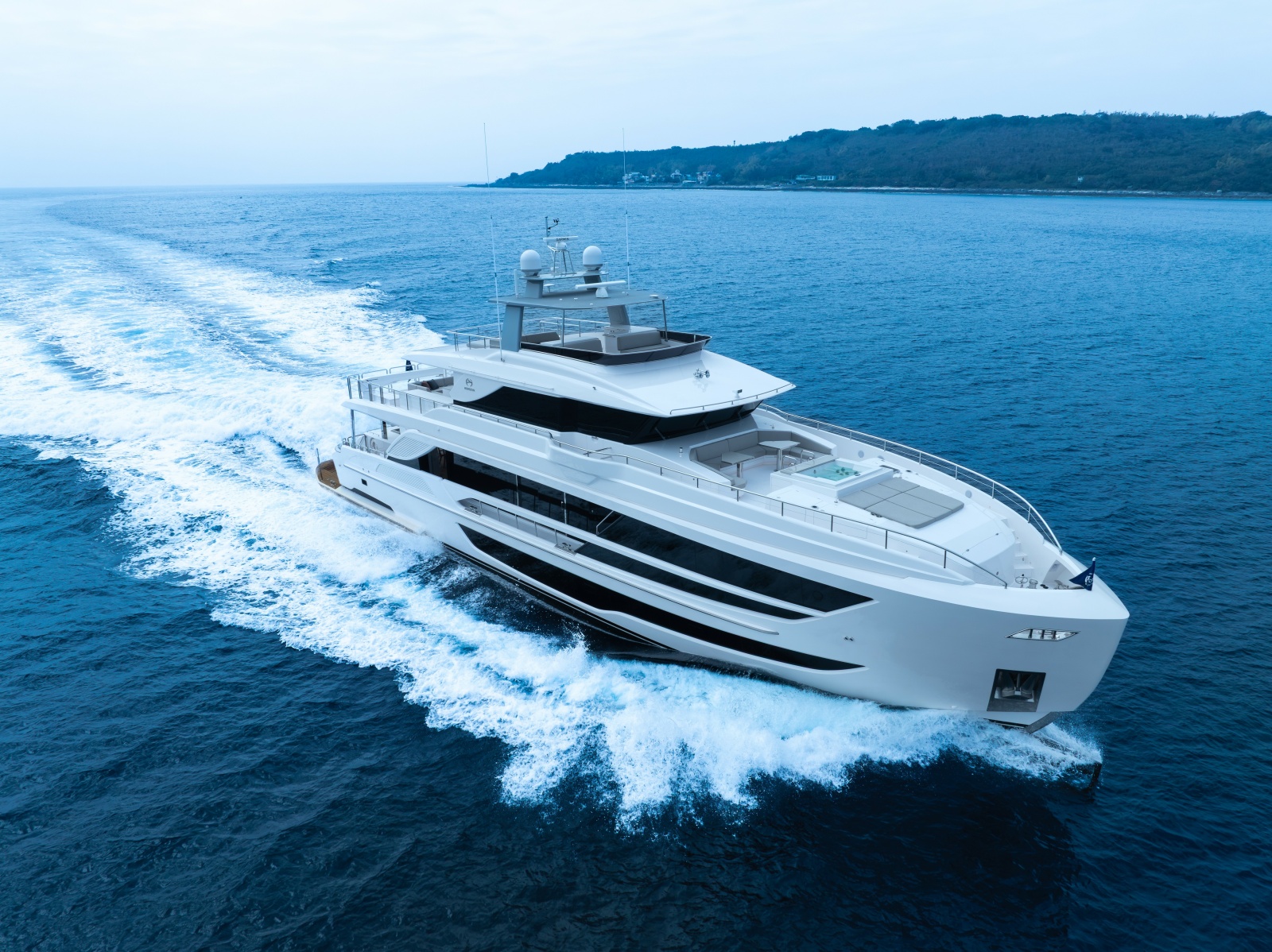

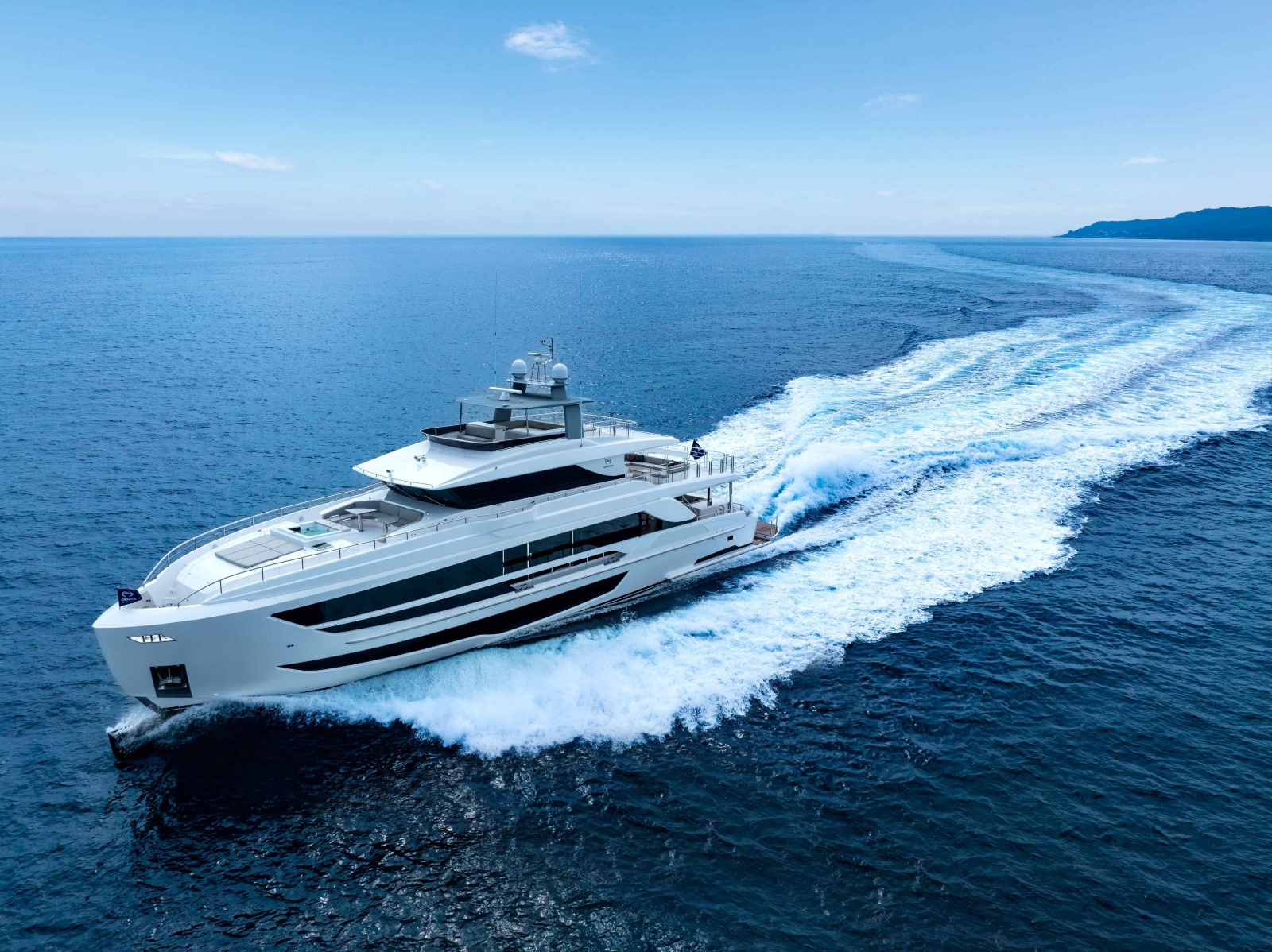

2027 Horizon FD110

ABS/DNV type approval fiber/resin & sandwich core material applied

White gelcoat finish for hull above water line, exterior decks, and furniture

One-piece hull and superstructure utilizing SCRIMPTM technology with Horizon patented 6D infusion, incl. longitudinal and transverse stingers

Hull, deck & superstructure are built with licensed process SCRIMPTM for improved strength and less weight

Hybrid design hull bottom with sandwich construction and solid fiberglass

High-density Divinycell or equivalent foam cored hull sides, decks, and superstructure

Stringers with high-density foam coring, interior structural components, all properly bonded to the hull

Strong collision bulkhead structure for extra safety. International anti-fouling bottom paint with anti-osmosis treatment

PropSpeed/PropGold metal paint for underwater appendages

Tunnels for reduced draft

High Performance Piercing Bow (HPPB) with S/S protection plates

Upper deck with bump-out design at PORT and STBD side

BV Certificates (Stability and Structure) Asymmetrical skylounge design (STBD side wide body, incl. 1’ a non-skid ledge and grab rail above)

Paint hardtop, hardtop posts, & mast in PU Awlgrip G1007 Medium Grey

Teak aft deck, teak swim platform, and teak steps to the boat deck and swim platform. Non-skid for the rest

FRP cap rail

Maxwell VWC6000 vertical hydraulic anchor winches (x2) with band brakes (x2) and local foot switches and remote

Maxwell VC3500 electric rope winches (x2) with rope roller on aft deck

Maxwell electrical rope capstan (VC3500) at bow (x1) Chain counters (x2) located in pilothouse

165m STUDLINK 12.5mm anchor chains (x2) w/ chain stopper and tensioner

160kg S/S anchors (x2)

S/S rollers and chain stoppers

Heavy-duty 316 S/S cleats and fairlead w/ rollers, Bulwarks w/flush-mounted courtesy lights

Aft deck corner hawsers (x2)

Bulwark side doors (x2) at aft deck for boarding. Freshwater/seawater anchor chain washdown system by manual operation

2” handrail with 1-1/2” S/S stanchions and steel cable around entire boat

S/S flagpole at bow

Standard lines and ProStock fenders (PF8 x4EA & PF36x48 x1EA), incl. Horizon logo covers

Portuguese bridge with sofa seats & pop-up lights (x2) as per layout

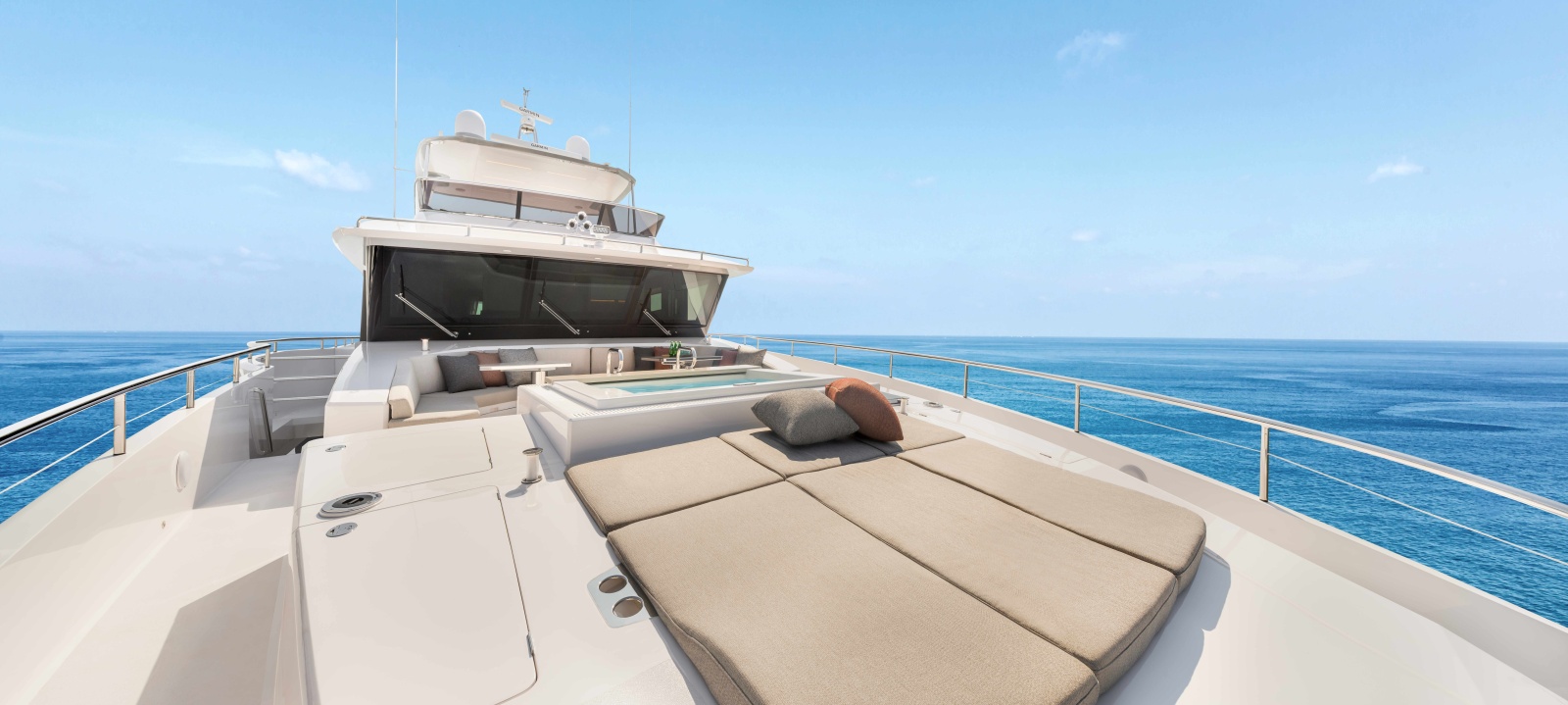

Foredeck sunpad cushion with adjustable back rests, cup holders, and pop-up lights (x2)

A hot tub (incl. splash guard and a shower head) to the foredeck, incl. Booster water heater "Stiebel-Eltron CE PLUS 12kW 208Vac 3ph" for hot tub

One hidden sink to the FWD PORT sidewalk

Frameless windows, slightly tinted tempered laminated Low-E glass for the windshield

Frameless windows with tinted tempered laminated glass for side windows

Stairs from aft deck to swim platform w/ S/S gate doors and handrails

Salon local-made S/S electric sliding entrance door

Deckhouse sliding side doors with an inflatable seal around door frame (x2, one at each side)

A wind door on each side of the aft deck to its side walkway (x2)

One watertight escape hatch from the engine room to aft deck

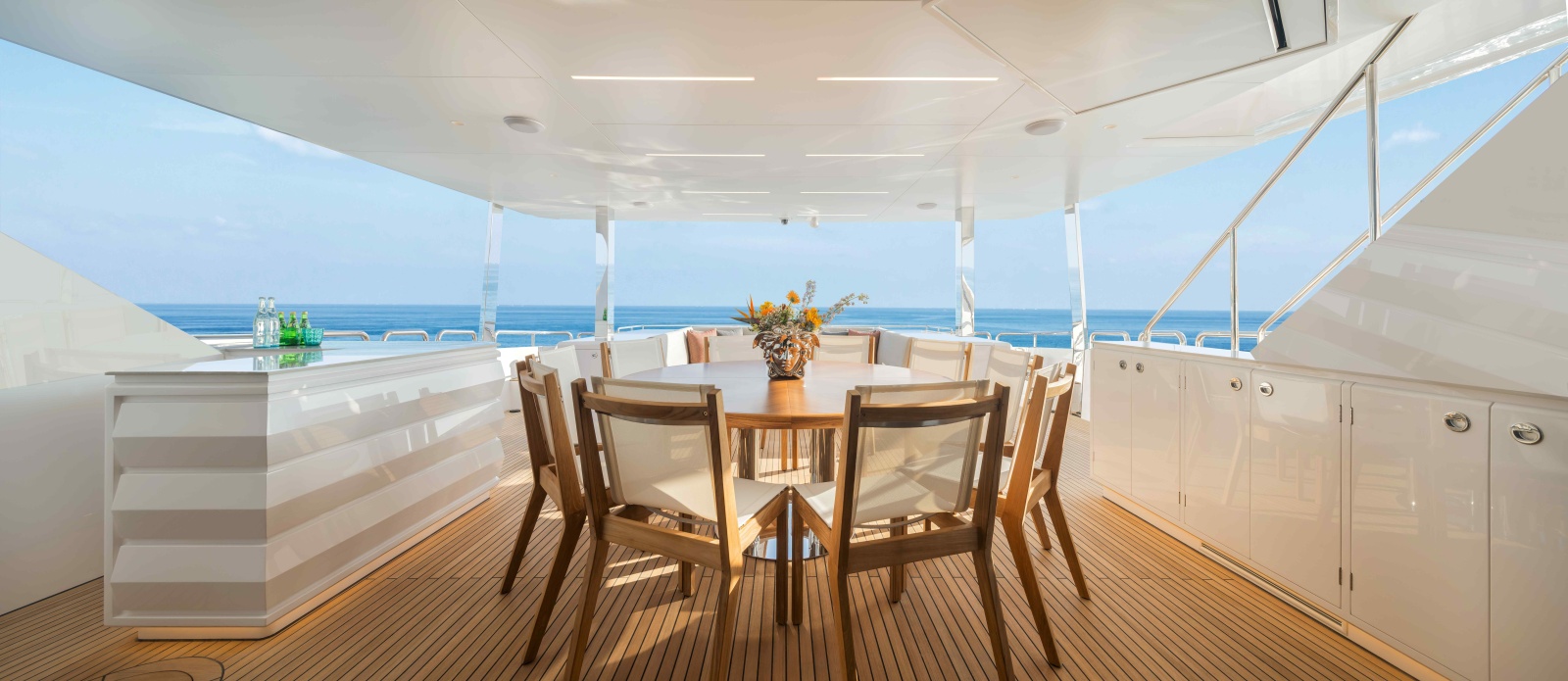

Aft deck round table for 10-person as GA

Aft deck U-shaped seating with multi-used table as per design

Two life rings with a recessed box at each end of aft deck seating

One integrated stair from PORT aft deck to upper deck Replace STBD aft deck stair to upper deck with a bar with a hidden sink, a Vitrifrigo C85IXD4X-1 refrigerator, and a Raritan 8B515-1 ice maker, and a utility storage as layout

A staircase from PORT aft deck to stern utility room

A prism at aft deck for illuminating the hallway of beach club

Hydraulic Hi-Lo swim platform with function as tender lift up to max 3000lbs, including 6” extension of fixed teak platform

Two pop-up cleats on Hi-Lo swim platform

Recessed steps at transom area for getting from swim platform to beach club

Hydraulic gangway (Besenzoni PI883, 6.33M)

MarQuipt 8-step carbon fiber side boarding sea stairs (incl. teak planks on steps, two removable handrails, FRP storage box

Boat hooks (x2, ship loose)

Built-in shower with hot/cold water above swim platform

A rain shower on the underside of the stern hydraulic door

One extractable or foldable swim ladder

Sun awning to foredeck & boat deck (total 2 sets)

Rub rail around hull side

S/S portholes

Three openable portholes (two in the master head and one in the galley)

Exterior LED step lights

2” removable corner rails on the swim platform (with extra 4 sockets on the fixed platform)

Prewire LED boat name on PORT, STBD, and stern (3 sets, max.8 letters/set)

Doors to exterior area with screen if applicable (except curved door, L-shaped hatch door, and pantograph door)

Teak beach club and swim platform; teak steps to boat deck and swim platform

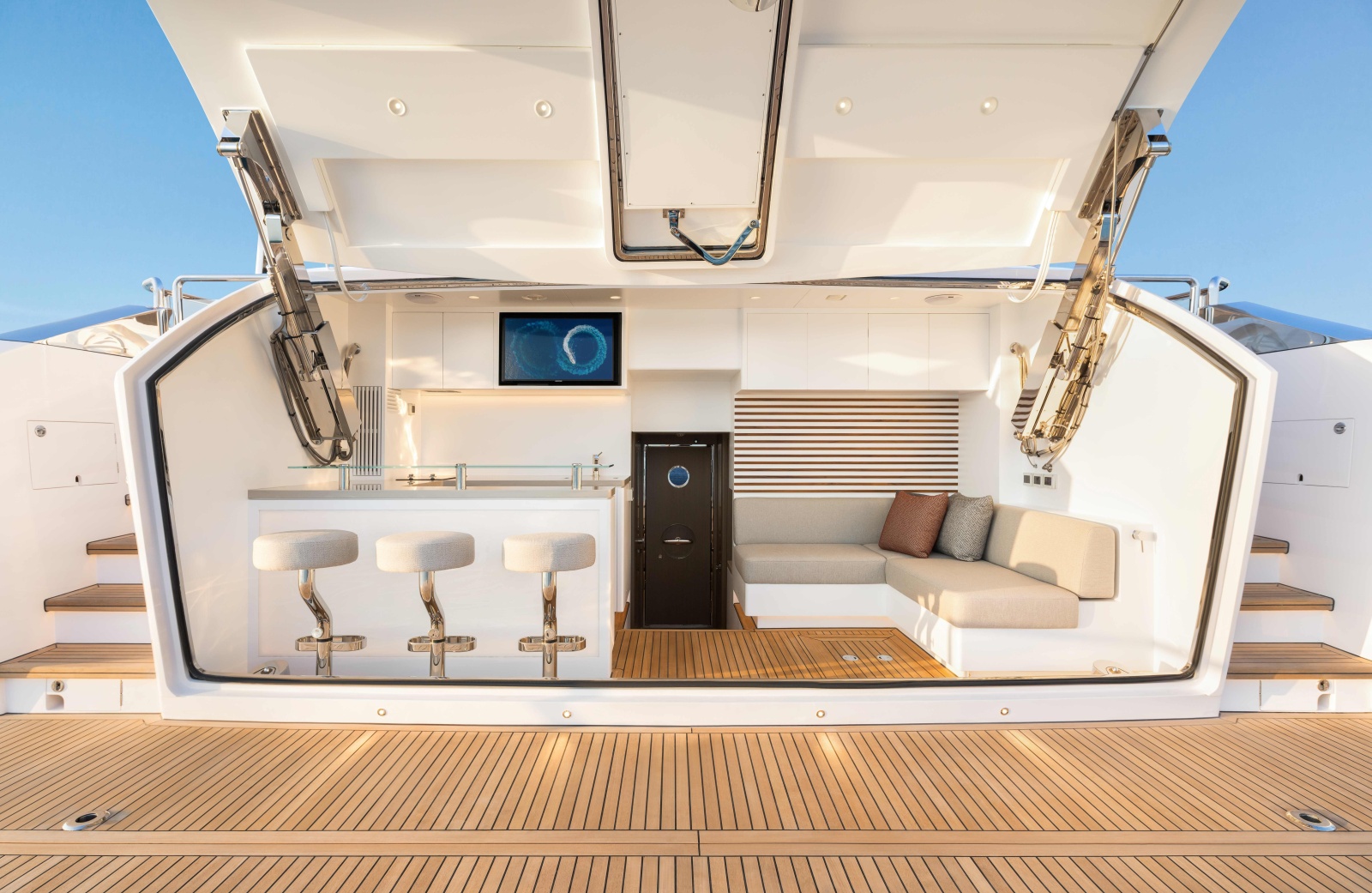

Hydraulic door w/ pantograph door in the middle & rain shower on the underside of the door

Hydraulic Hi-Lo swim platform (1,360kg/3,000lbs lifting capacity) w/ two removable corner rails

L-shaped seating & custom bar w/ 3 stools, conventional microwave, refrigerator/freezer, burner, and sink

32” TV

Utility room w/ dayhead, wet locker, wet storage room, diving tank storage, washer/dryer combo

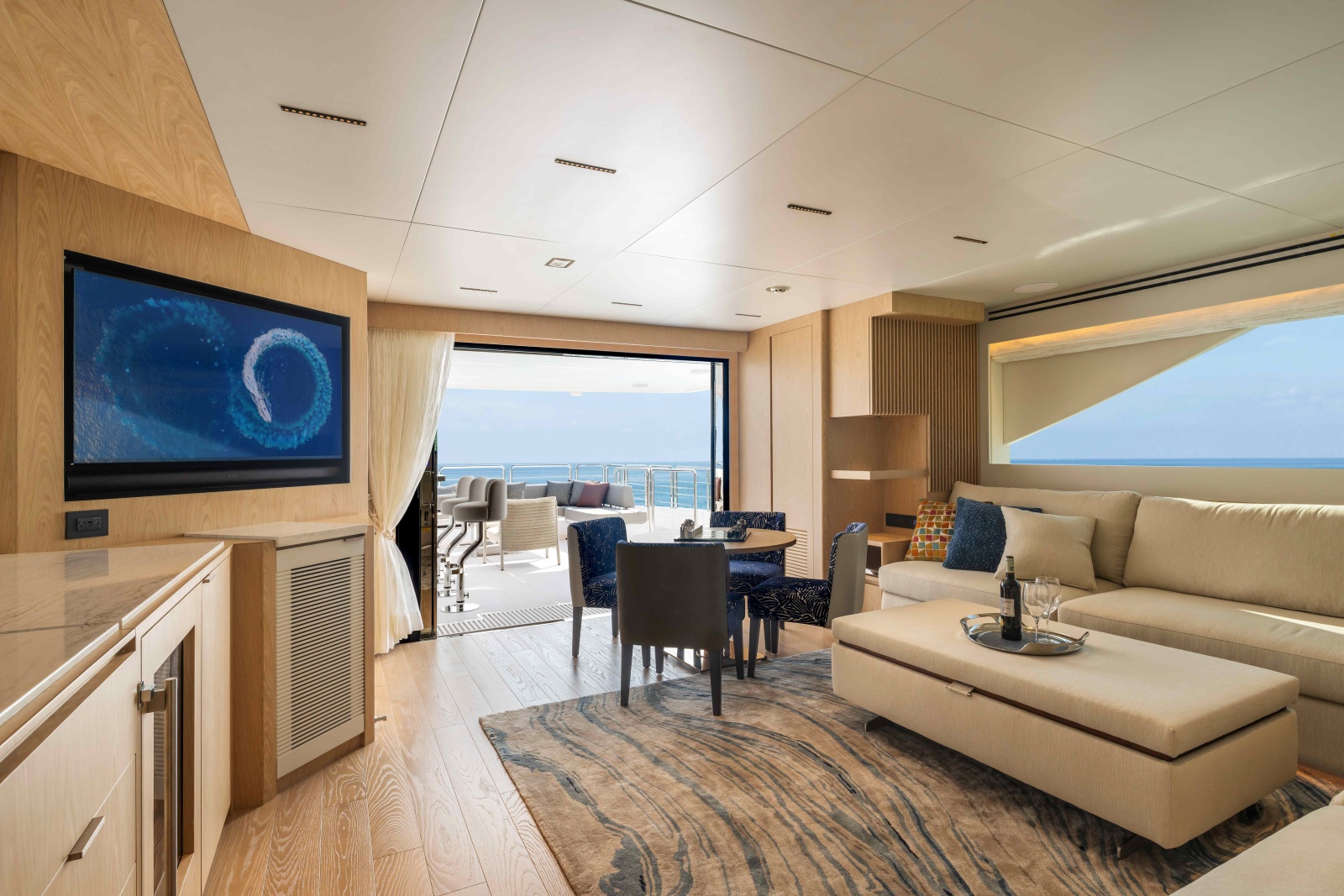

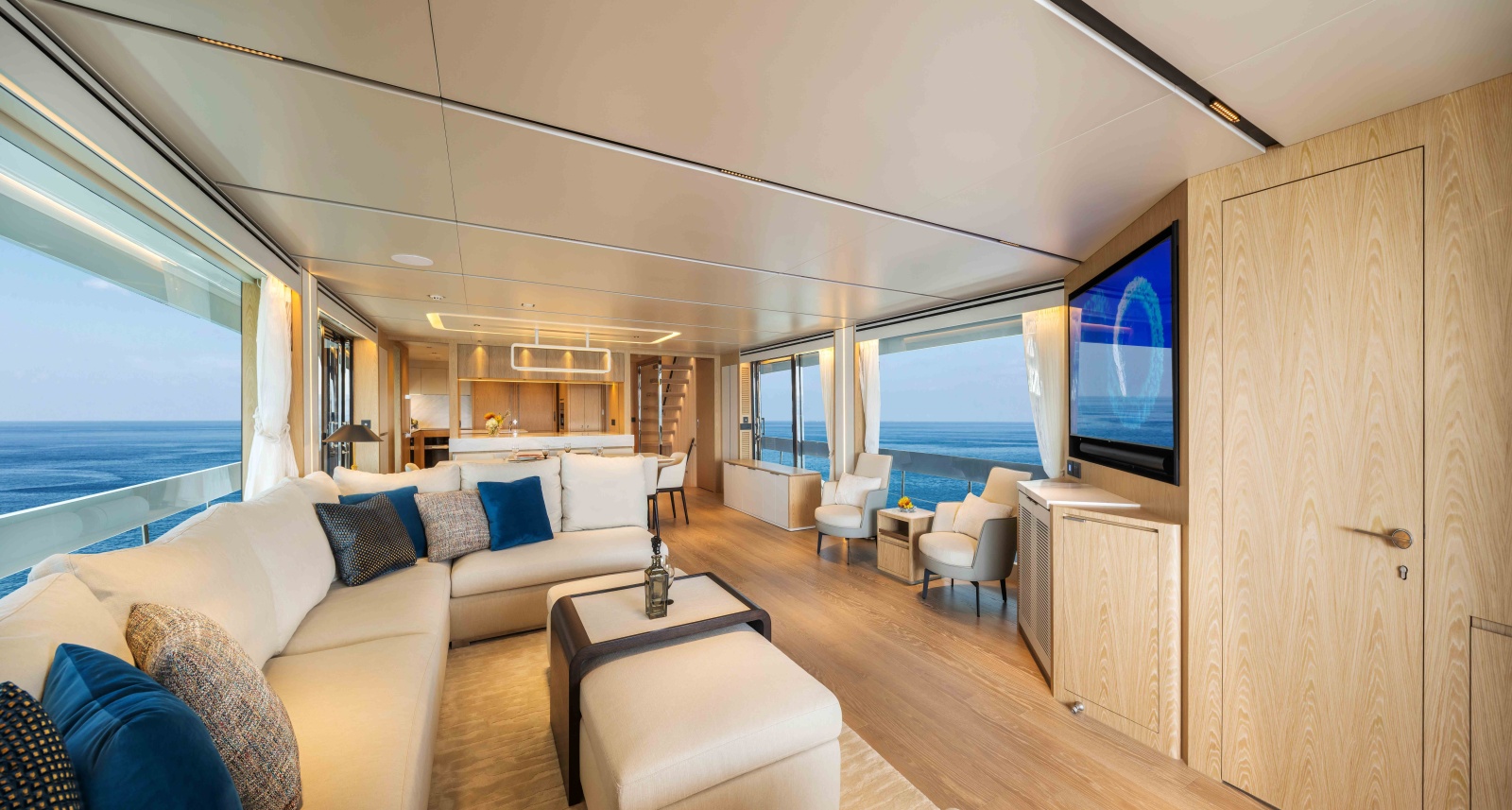

Enclosed Skylounge design w/ L-shaped sofa w/ coffee table, dayhead, round table for 4, wet bar w/ wine cooler, Ref/freezer, and sink

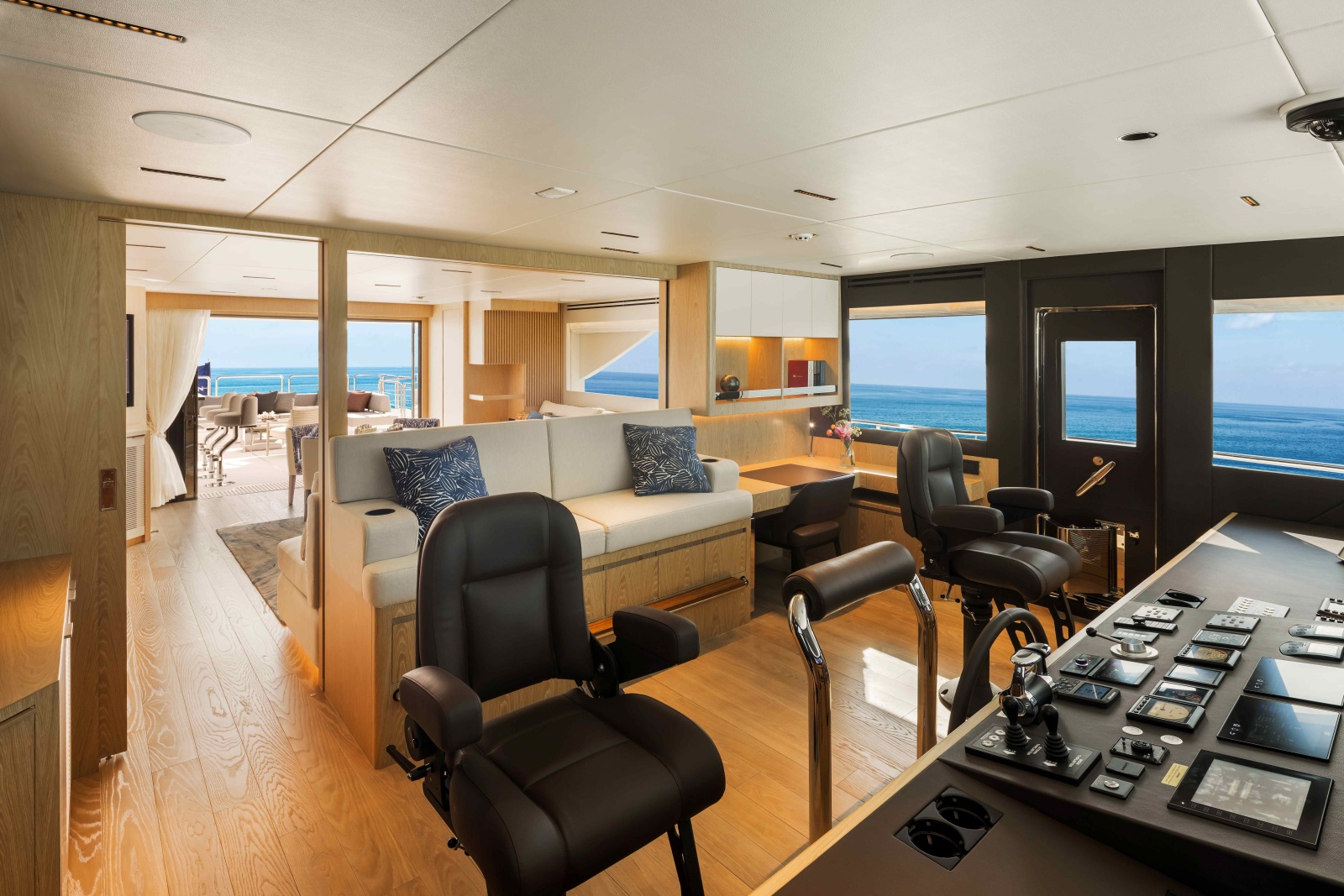

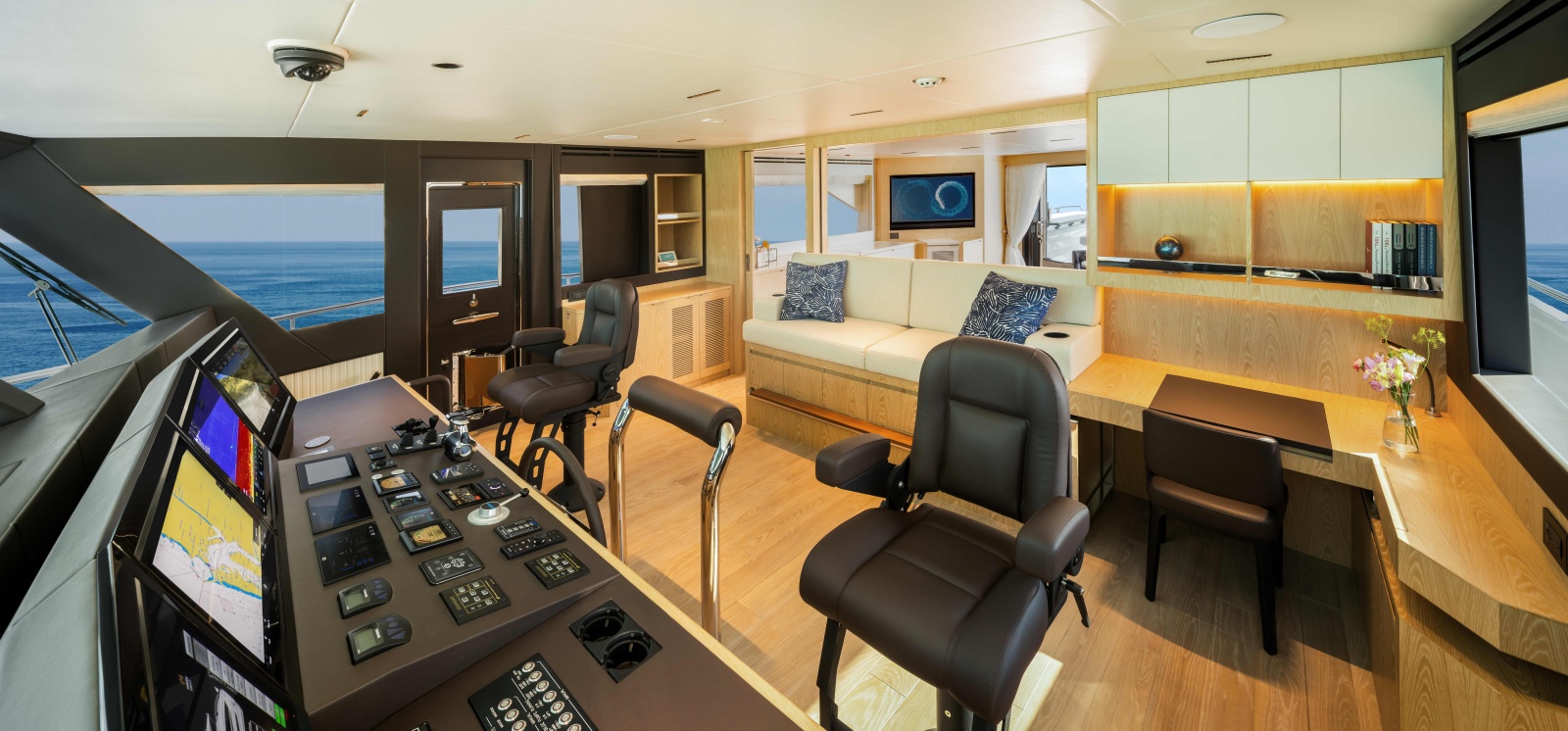

Enclosed pilothouse forward w/ 2 helm chairs, a leaning post, sofa, and deck

Custom designed helm w/ full set of engine gauges, monitoring system for important equipment, fuel & water gauges, Ritchie magnetic compass, surveillance camera system, bilge pump panel & navigational lights

Walk-around bridge design— PORT side bridge leads forward to bow deck

Refrigerator and icemaker to FWD PORT sidewalk

Hi-lo glass screen and pocket door to separate skylounge and pilothouse

Electric Roman blinds

49" TV

Non-skid upper deck

Standard choices of Sunbrella fabrics or equivalent for exterior cushions and sunpads

Standard choices of Stamoid covers (“Smart 1” or equivalent, White color) for flybridge, helm seats, aft deck seat, sunpads, and foredeck cushions and seats

Standard choice of Corian/ Granite/ Quartz for counter/table top I/O FRP (excl. extended design)

One hidden Propane 24" BBQ w/ manual Hi-Lo

One 48" FRIGID-RIGID freezer

Oversized drains w/ strainers on each corner of upper deck, Tri-deck/flybridge, and internal overboard drains

Tokai Sanshin LED search lights (x2)

Lumitec flooding lights (x4; 2 for mast & 2 for boat deck)

Chrome-plated Buell air horns on top of radar arch

S/S flagpole at stern

Hydraulic davit 3000lbs (Steelhead CT3000)

LED warm white lights Horizon logo PORT and STBD sides

Indirect lighting system under all furniture, bars and seats

One outlet of pressurized air (from E/R air compressor) inside the cabinet of boat deck bar

One-off extend STD F/B overhang by 6ft with two posts as GA

10-person life raft with bracket (ZODIAC, A pack, 2 units, installs in USA)

Non-skid deck

Radar arch w/ antenna bracket

Windshield w/ S/S frame & S/S rails

Staircase from boat deck to flybridge

Handheld remote plug-in receptacle location, per layout

Forward extra large sunpad

Large L-shaped sofa w/ coffee table

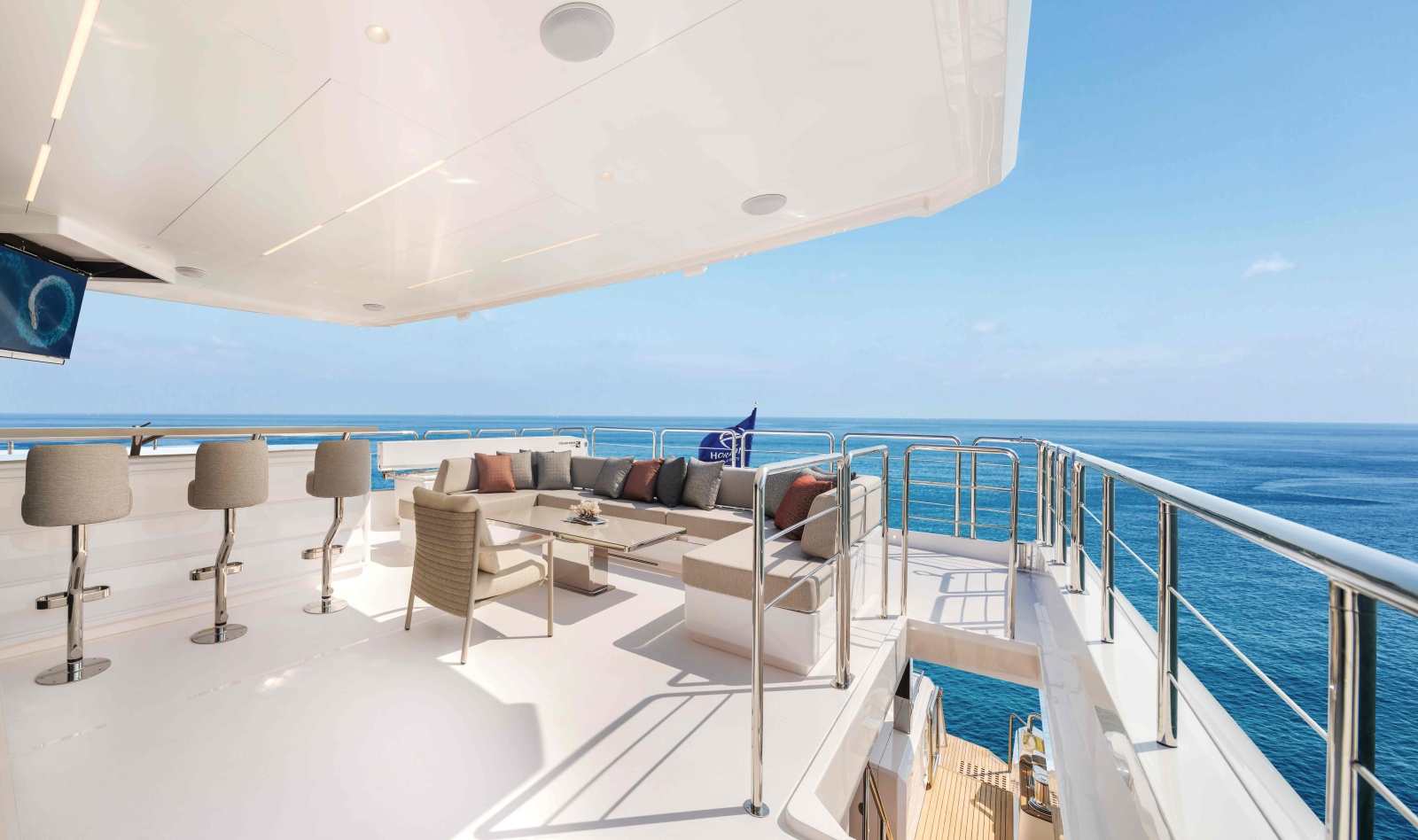

Aft sunbed w/ upright cushion backs & side tables

Wet bar w/ sink, refrigerator, icemaker & storage

Twin CAT C32B 2,400hp

NAIAD At Speed and At Rest stabilizers (Model 525)

NAIAD hydraulic bow and stern thrusters (16LHT/710kg & 16SHT/580kg)

Humphree Interceptor system (HE1150*2 & HE1100*2)

Engine load distributed through flexible mountings on S/S engine bed bonded to FRP hull girder

Engine alarm system as per engine standard

Jastram digital electric control as well as emergency manual hydraulic steering system

High performance S-class VEEM Superyacht Propeller Bronze struts w/ backing plates

(2) Aqualoy 22 HS S/S shafts

Shaft and Rudder packing glands w/ Tides Marine dripless seals

Tethered engine remote handheld controller w/ plug on tri-deck, boat deck, aft deck, and pilothouse Underwater exhaust system for engines w/ bypass mufflers

Engine room clean designed with lightweight honeycomb floor

Heavy-duty Insulated engine room door

S/S overhead grab rail on each side of engine

Anti-noise treatment to exhaust system

Delta-T engine room demisters

Air compressor

GFI protection for all AC outlets in exterior, heads, galley, and engine room

Electrolysis bonding system

Cathodic protection with zinc anodes for shafts, struts, etc.

LED lighting system throughout interior & exterior

(8) Underwater lights

(2) Kohler Generators 55kW (60Hz) with sound shield

Yacht controller (Supremo w/ speed button and joystick)

Octoplex multiplexing power distribution system

Maretron monitoring and control system

Magnus Air-cooled frequency convertor (model SP150 80kVA)

Glendinning shore power Cablemasters (x2) 100Amp w/ 75' power cable each

Shore power connection w/ 100Amp ISO boost transformers which will be wired as polarization transformers (x2)

Pre-wired for LED boat name on Stern & PORT & STBD flybridge sides

Sonos stereo system w/ Control4 system

Pre-wired for O/S FLIR M364C night vision

A cable conduit with a spare breaker for O/S Starlink

5,500 US gal (20,800 ltrs) fuel tanks w/ sight & electrical gauges

(3) Racor 79/1000 MA fuel filters/water separators for each engine

(2) Racor 500 MA fuel filters, one on each generator

(2) Electric fuel transfer pumps

(1) Fuel polishing system (210GPH)

800 US gal (3,025 ltrs) freshwater tank

(3) 40 US gal water heaters

High-volume AC freshwater pressure pump & backup DC pump

Spot Zero SeaXchange XTC II 1800 & Spot Zero ZTC II 2000 watermaker

Charcoal filters are plumbed into the freshwater line: shore water inlet and galley

Hot water circulation pump

Marine Air chilled water conditioning system w/ VFD

Air handlers for the interior area, with 18K BTU unit in the engine room and 24K BTU unit in the beach club

Headhunter toilet system

Headhunter sanitary treatment system (TW-HMX 6001LP)

Dive compressor (Bauer Junior II)

Pre-wiring for Electrosea (CL-2000-X2.0)

Honeywell dehumidification system (Honeywell DR65A3000, 5 units)

200-gal holding tank & deck fitting for dockside pump-out 200 gals sump tank w/ pump for each shower & water drainage area

Electric level indicators for holding tank and sump tank

Electric Rule bilge pump

High water level bilge alarm

Bilge exhaust ventilation fans

Deck wash-down pump with outlets at chain lockers and transom

Fire insulation in engine room

Fire-resistant treatment for pipe penetrations

Automatic fire damper system

Fire pump, incl. four outlets & hydrants, a mutual backup system

(5) Portable fire extinguishers

(3) Fire blankets Integrated fire alarm system in pilothouse, with CO and smoke detectors in accommodation space, heat detector in galley and Engine Room

Guest accommodations include On-Deck master, mirror VIP, STBD. & PORT guest staterooms, all ensuite

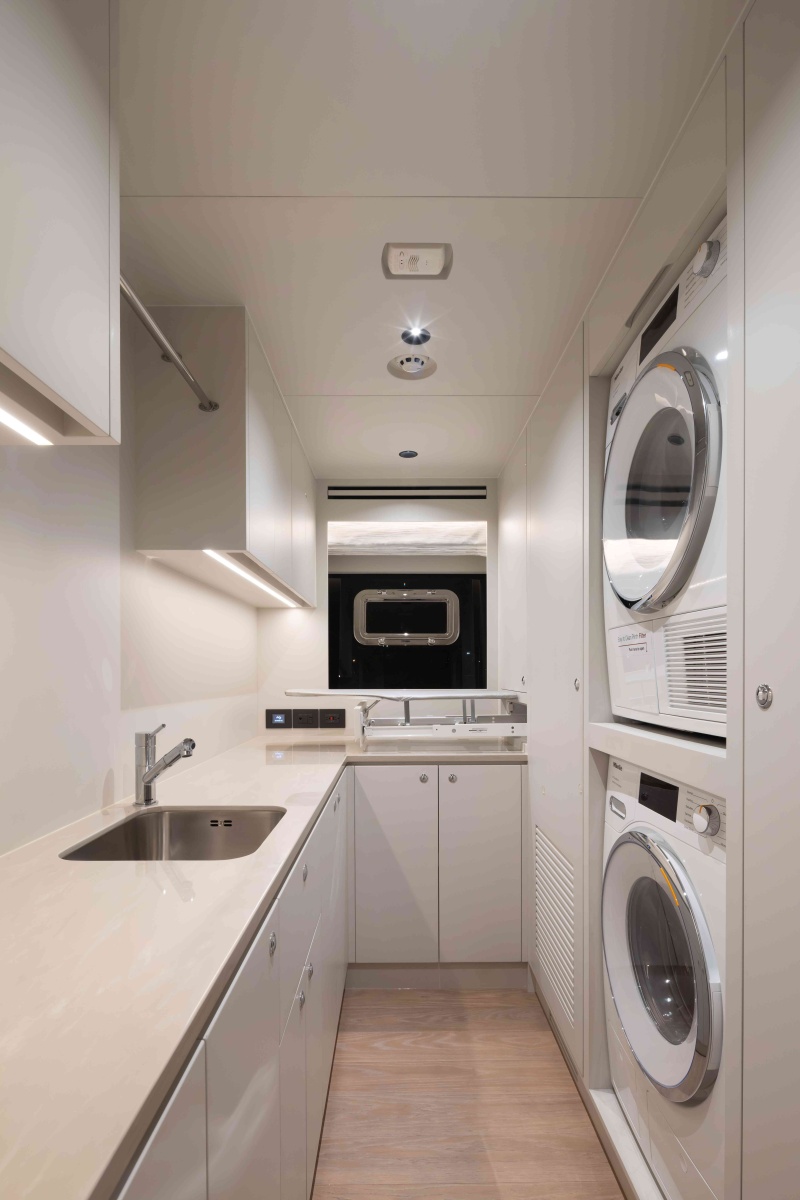

Laundry room w/ washer/dryer, linen locker, storage, ironing board, and sink

Forward crew area w/ 3 crew ensuite cabins, crew mess w/ access to STBD side galley

Customized interior package for interior décor & lighting Main wood crown cut white oak

Full set of Wedgwood (GIO) tableware for 10, incl. dish holder, pot/pan, dishes, plates, knives, forks, glasses… etc

Extra set of bed sheets for all guest cabins, including crews

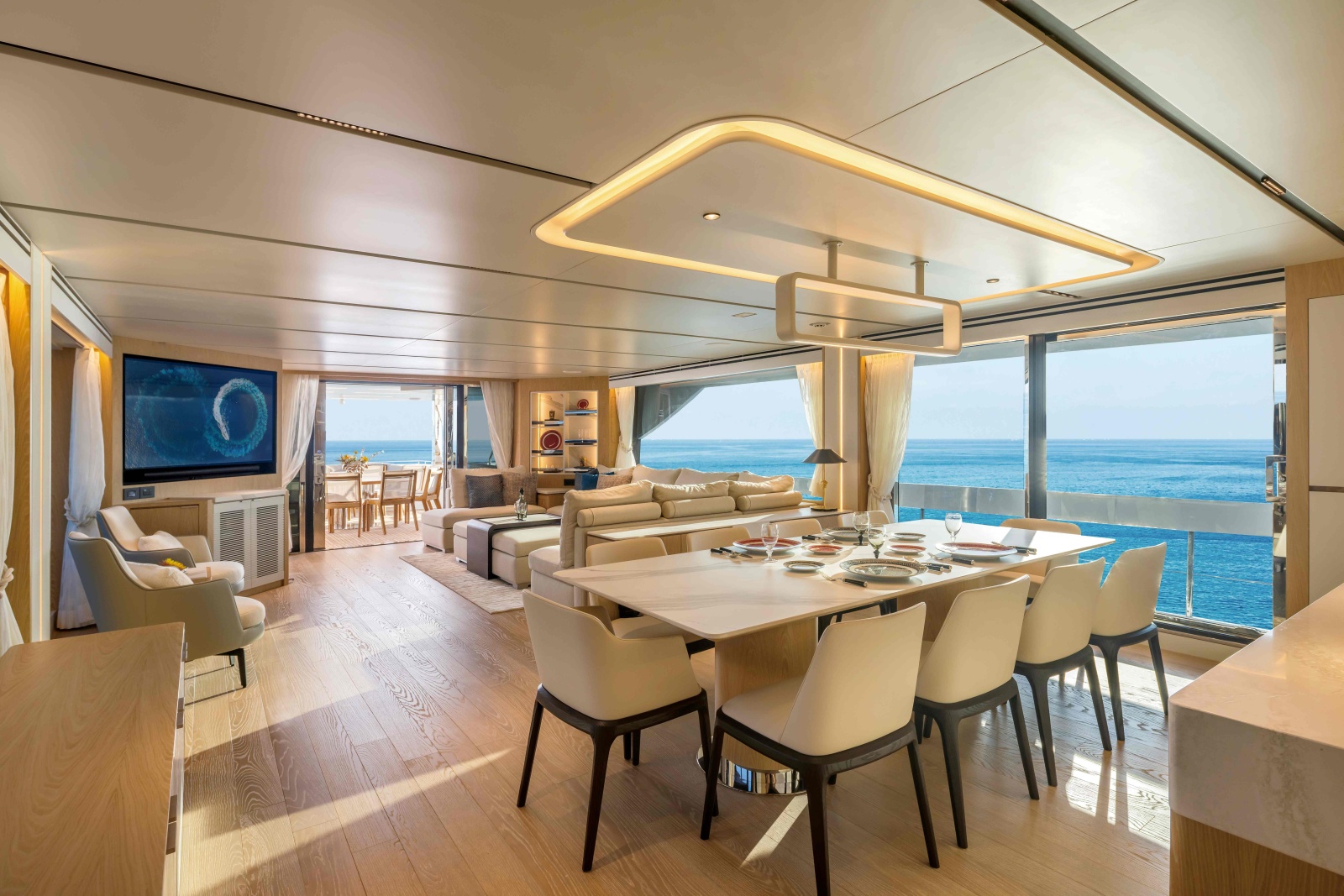

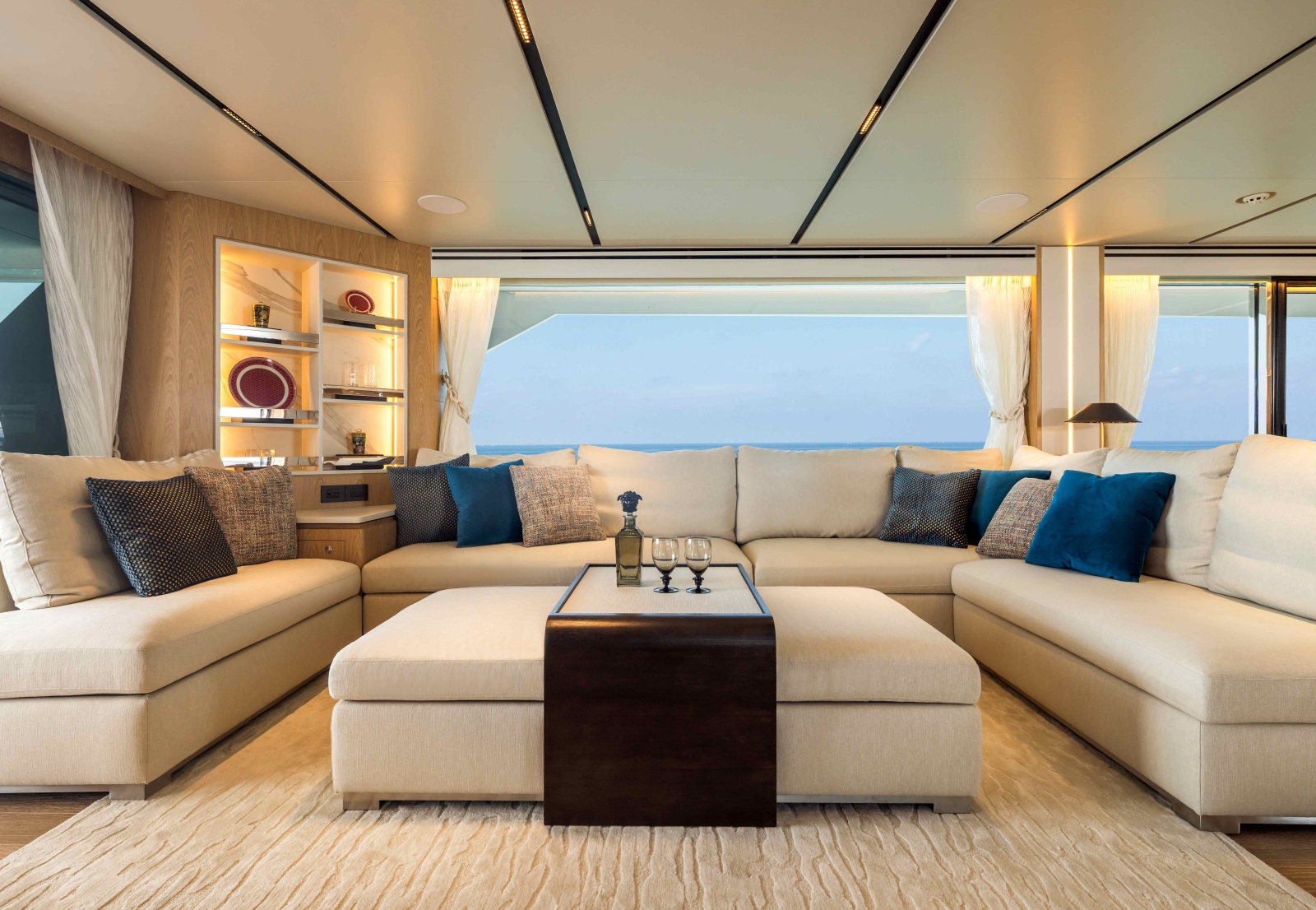

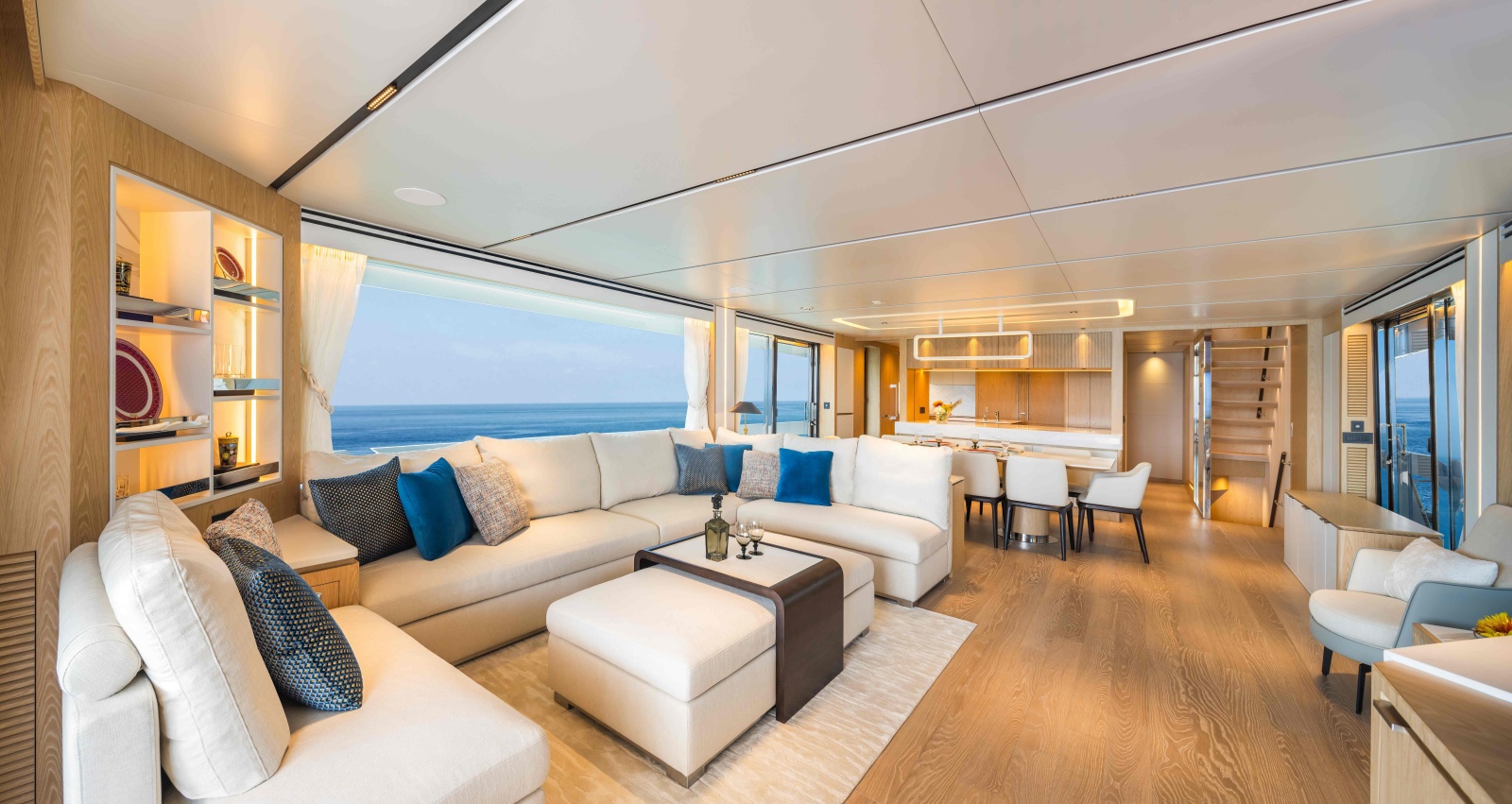

SALON

Local-made S/S electric sliding entrance door

Deckhouse sliding side doors at each side

Dayhead

U-shaped sofa w/ coffee table

Custom area rug

STBD coffee table w/ two swivel chairs

PORT buffet cabinet behind sofa

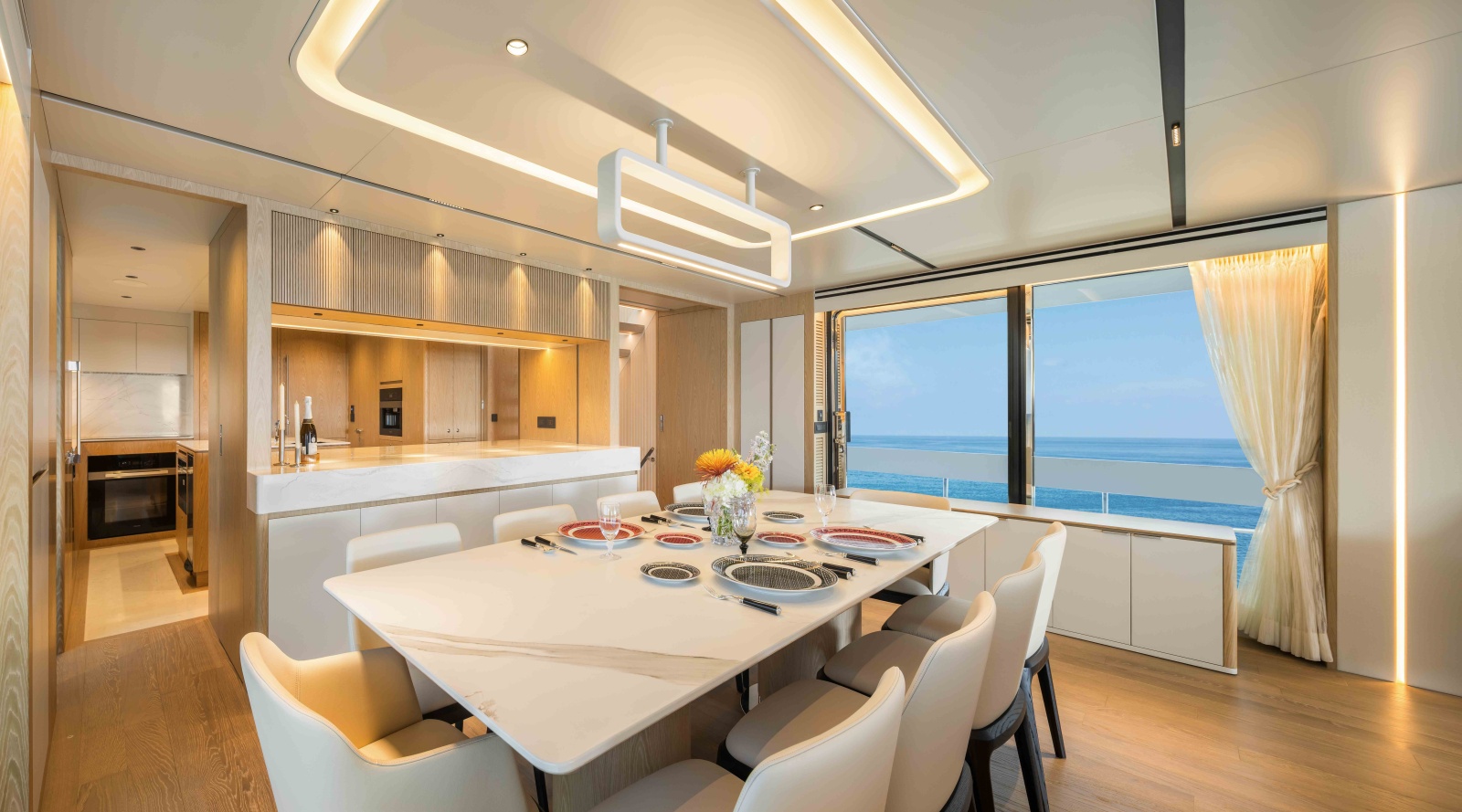

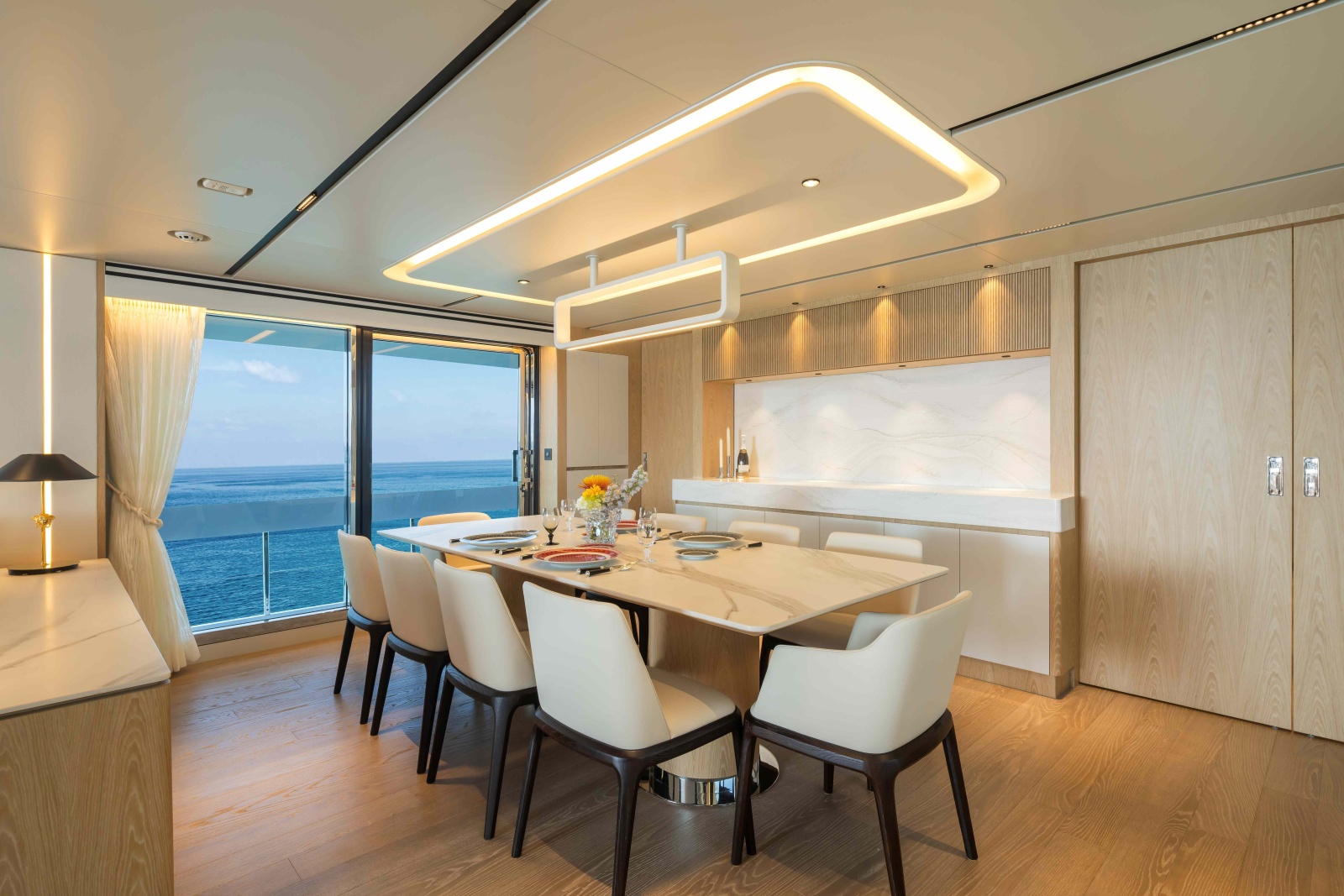

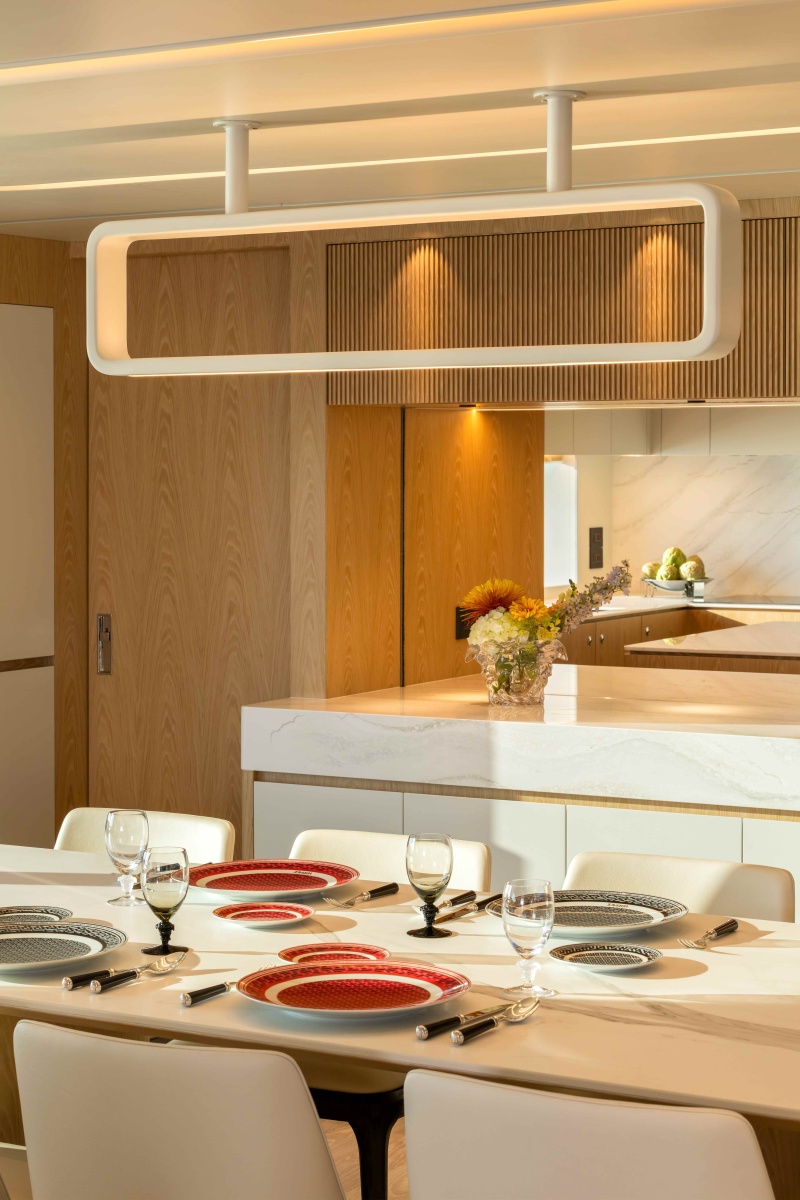

Custom formal dining table w/ seating for 10

65" TV

Electric blinds

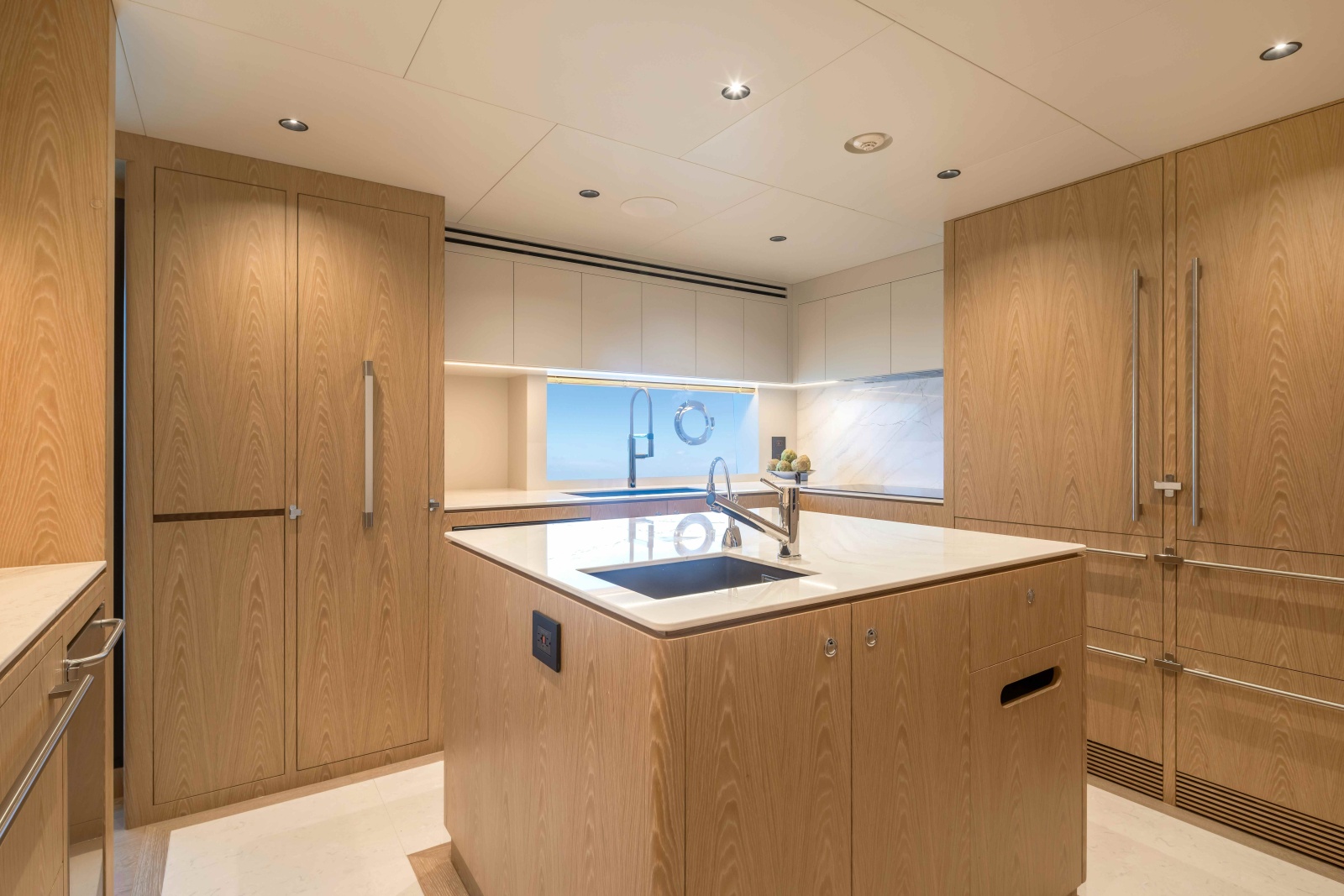

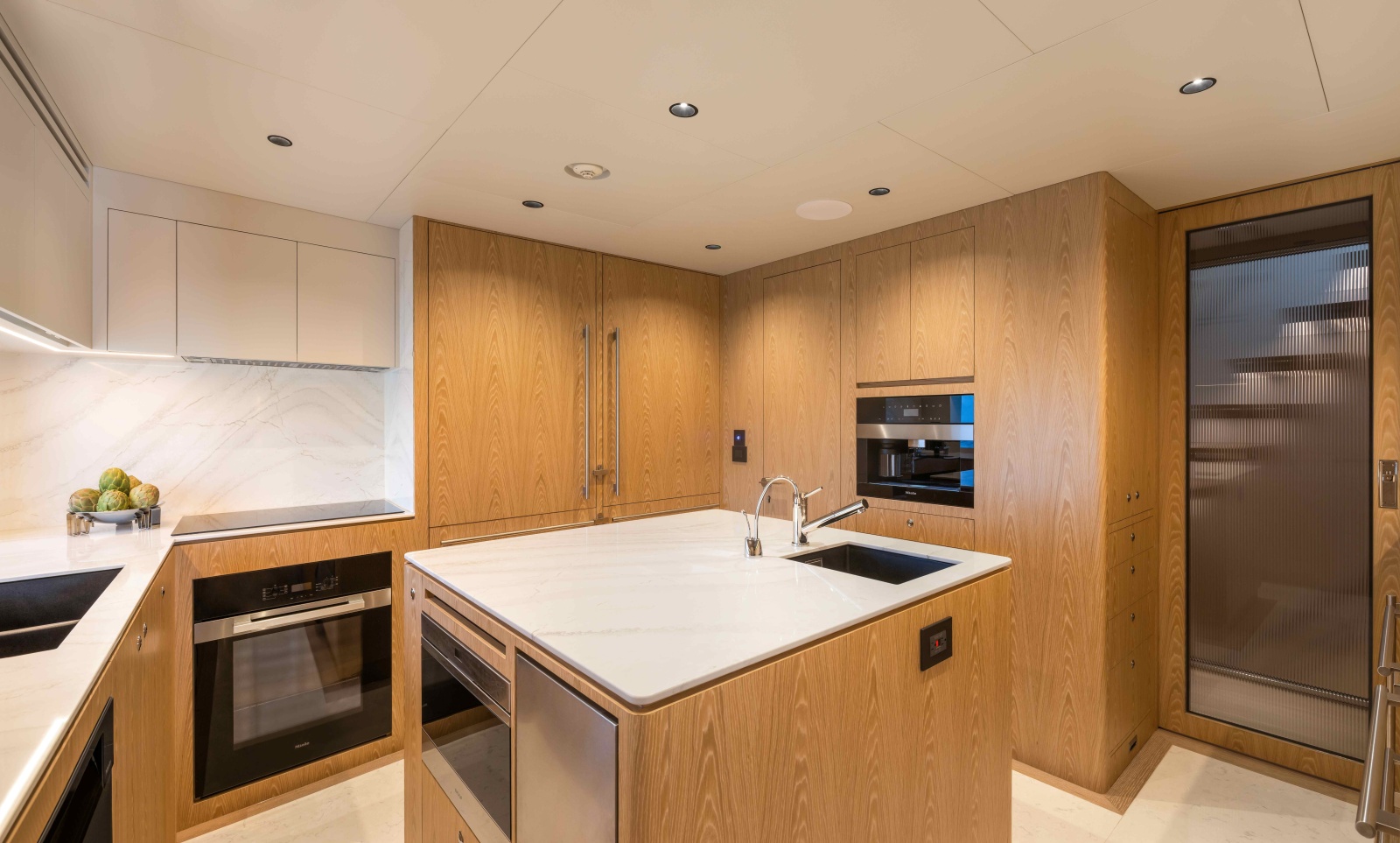

GALLEY

Enclosed galley design w/ Hi-lo privacy screen & pocket/hinged doors

Professional galley w/ island (w/ sink, cooktop, dishwasher, trash compactor, microwave, instant hot, and hidden chair)

Full height refrigerator + freezer

Undercounter refrigerator and freezer

Scotsman ice maker

Wine cooler

Coffee maker

(1) Opening portholes

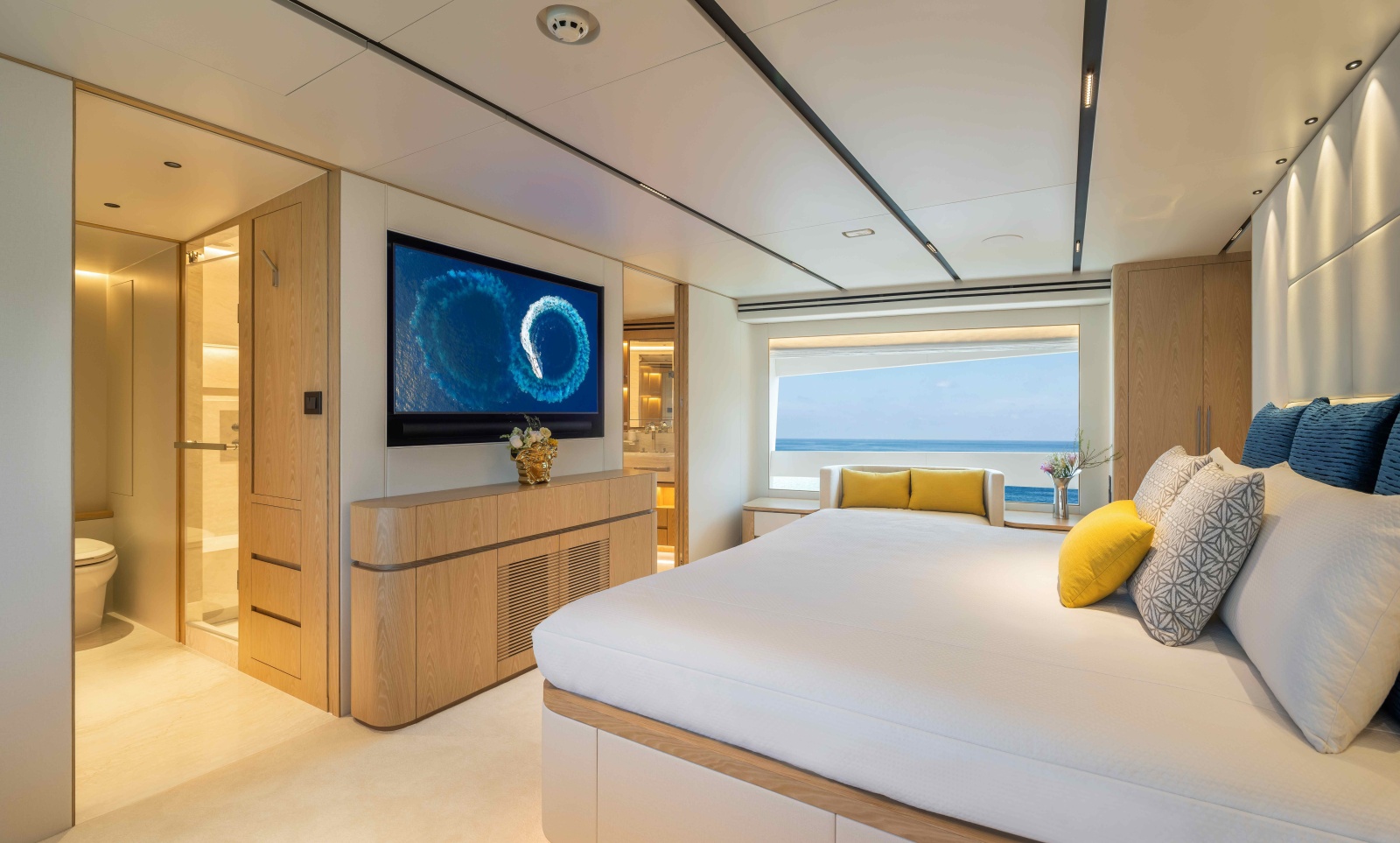

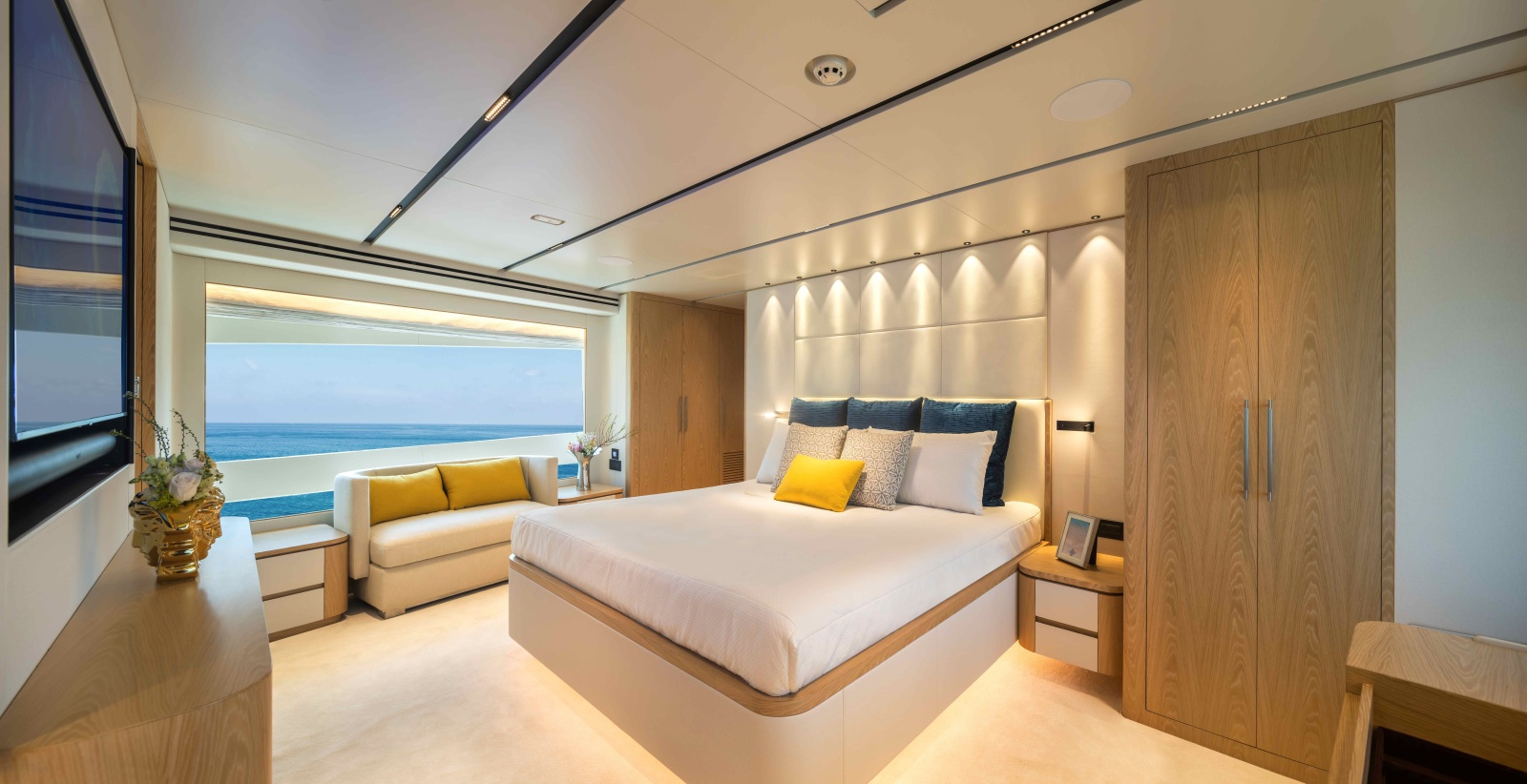

MASTER STATEROOM

King bed w/ drawers under, nightstands, and safe

STBD side love seat; vanity/desk at PORT; hanging lockers on PORT & STBD

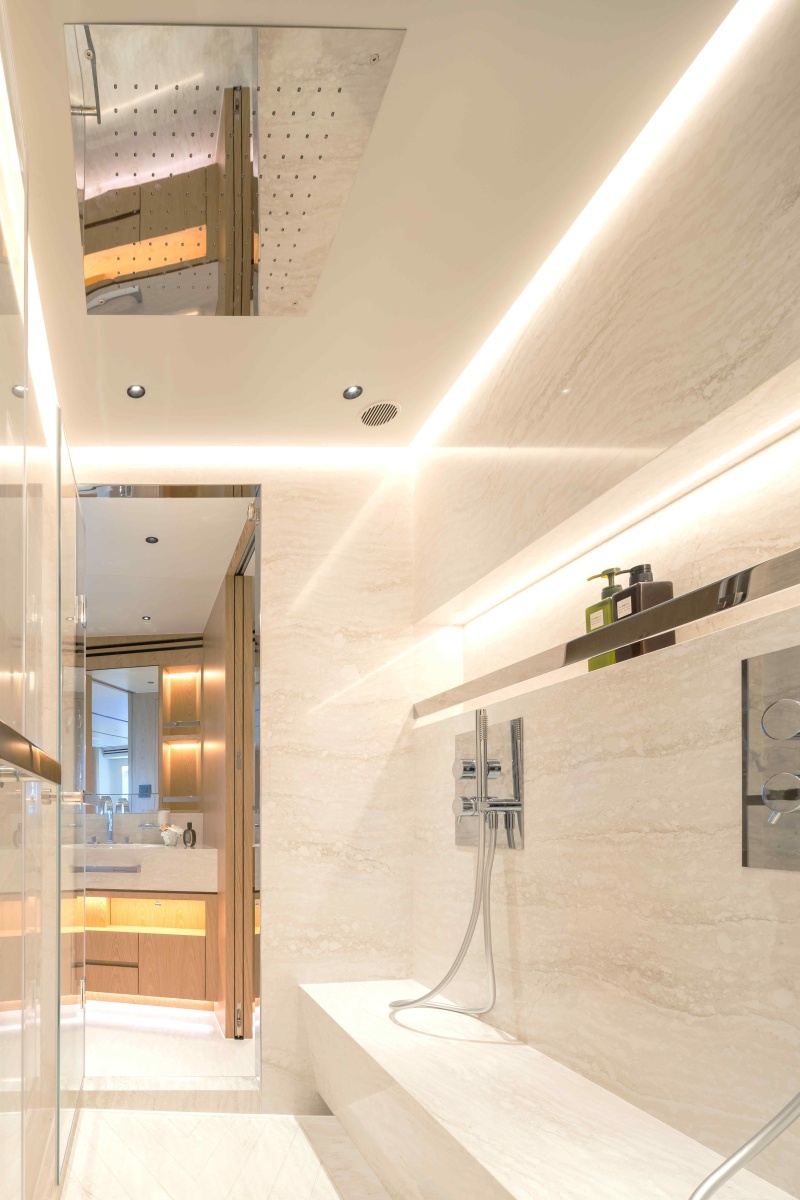

Ensuite head w/sink, rain shower, his & hers head with sink, toilet, towel heaters and storage

Electric blinds (4)

Opening portholes

55" TV

Escape hatch in Master w/ ladder

Home entertainment system

Extra wireless chargers

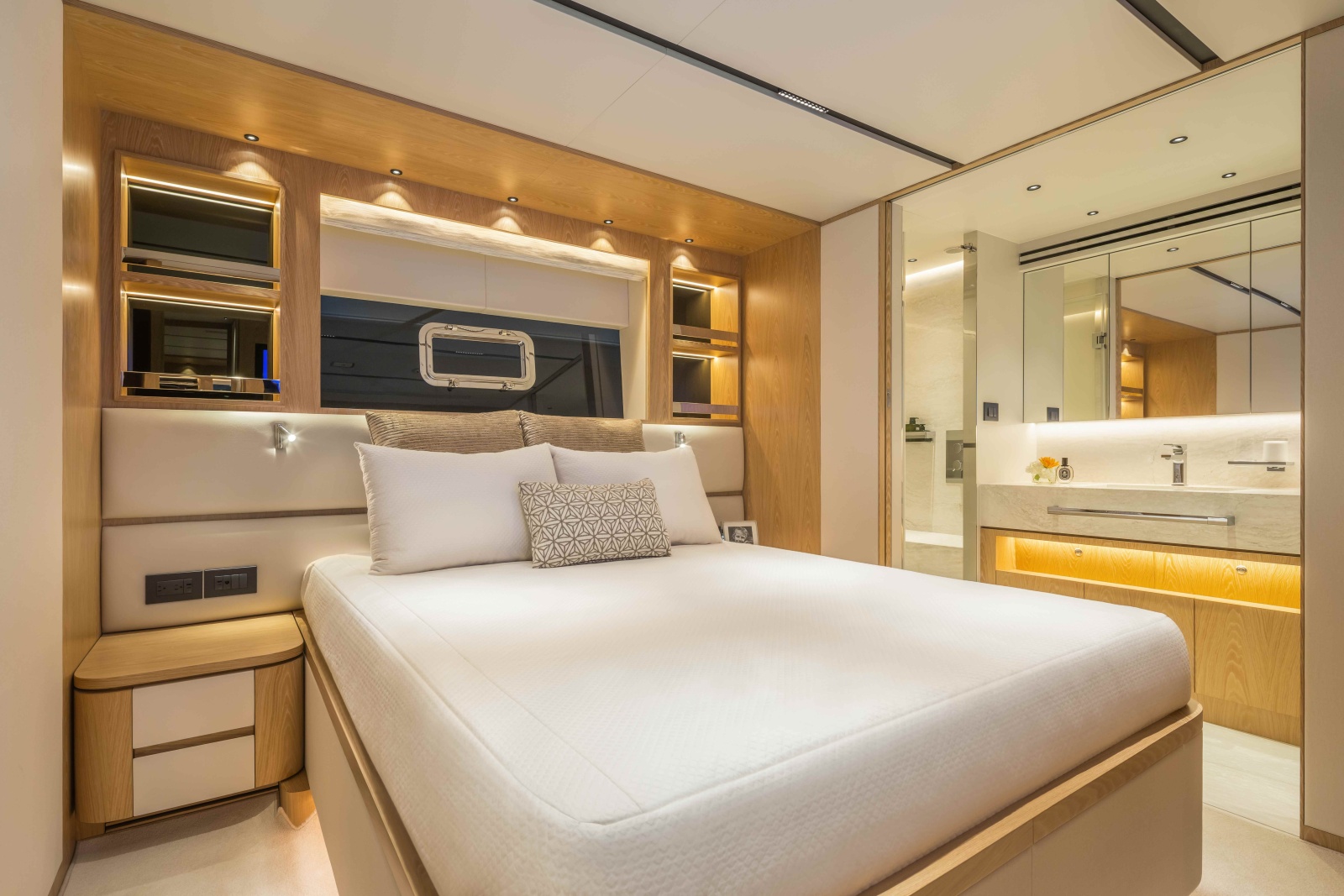

STBD. & PORT VIP STATEROOM

Queen bed w/ drawers under, nightstand, hanging locker & storage

Ensuite head w/ sink, rain shower & toilet

43" TV

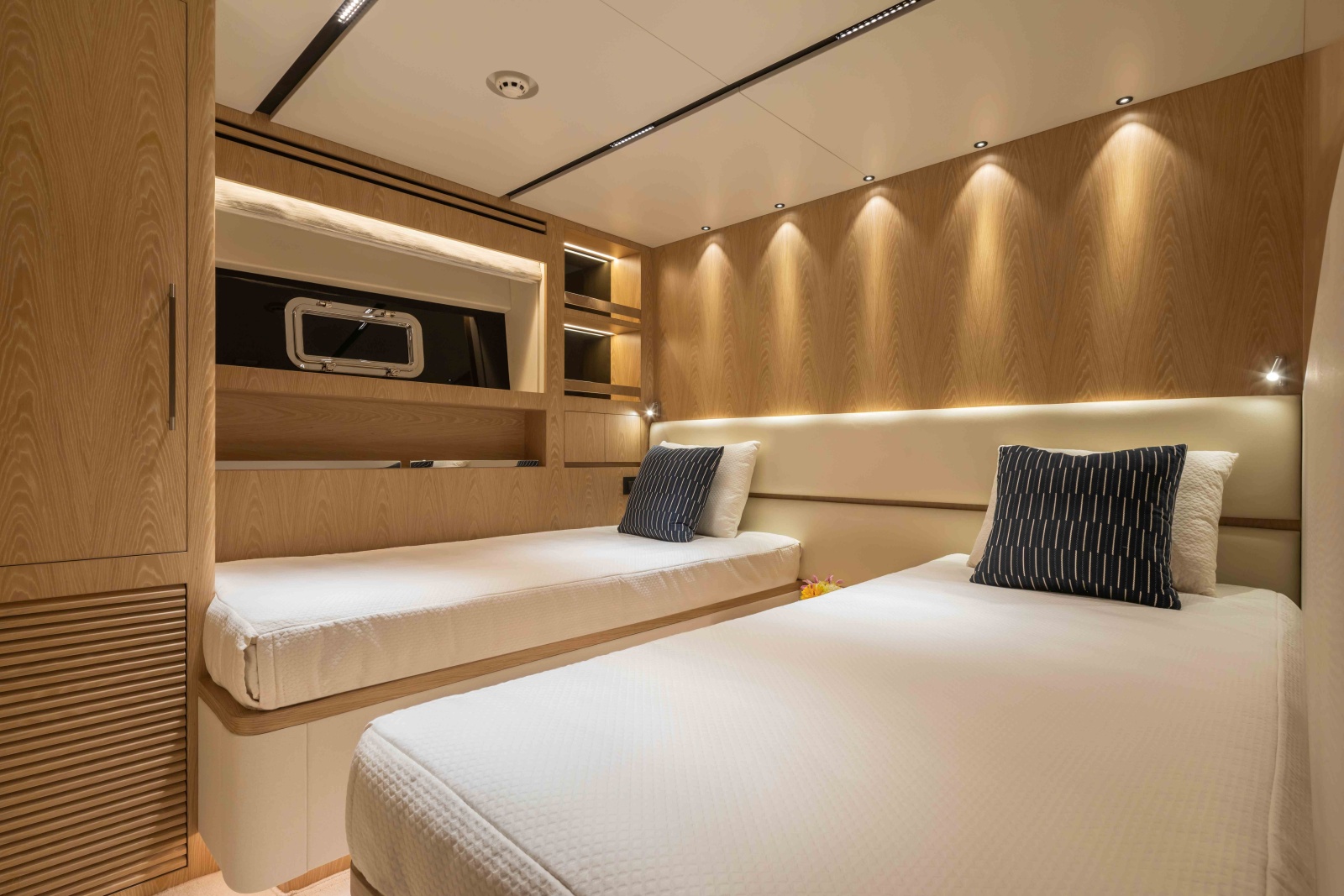

STBD. & PORT GUEST STATEROOM

STBD guest w/ queen bed, nightstands, drawers, hanging lockers

PORT guest w/ sliding bed, nightstands, hanging lockers

Ensuite head w/ sink, rain shower & toilet

43" TV

Captain's cabin w/ double bed, hanging lockers, 32" TV, and safe

(2) forward crew cabins w/ upper & lower beds, hanging lockers, storage

Ensuite head w/ sink, shower & toilet

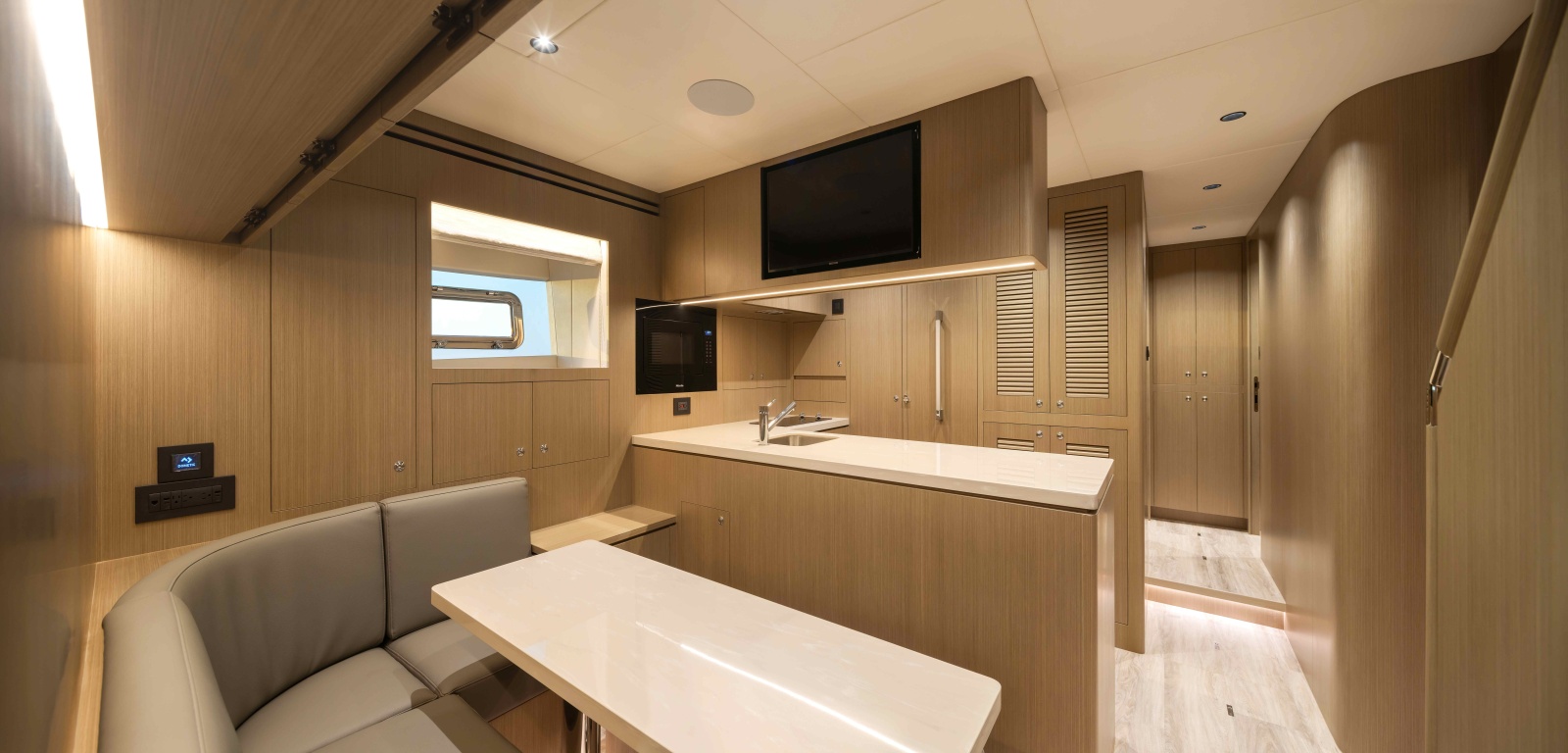

Crew mess w/ 32’’ TV dining area, cooktop, drawer-type fridge/freezer, microwave, ironing board, washer & dryer, and lockers

Pantry storage

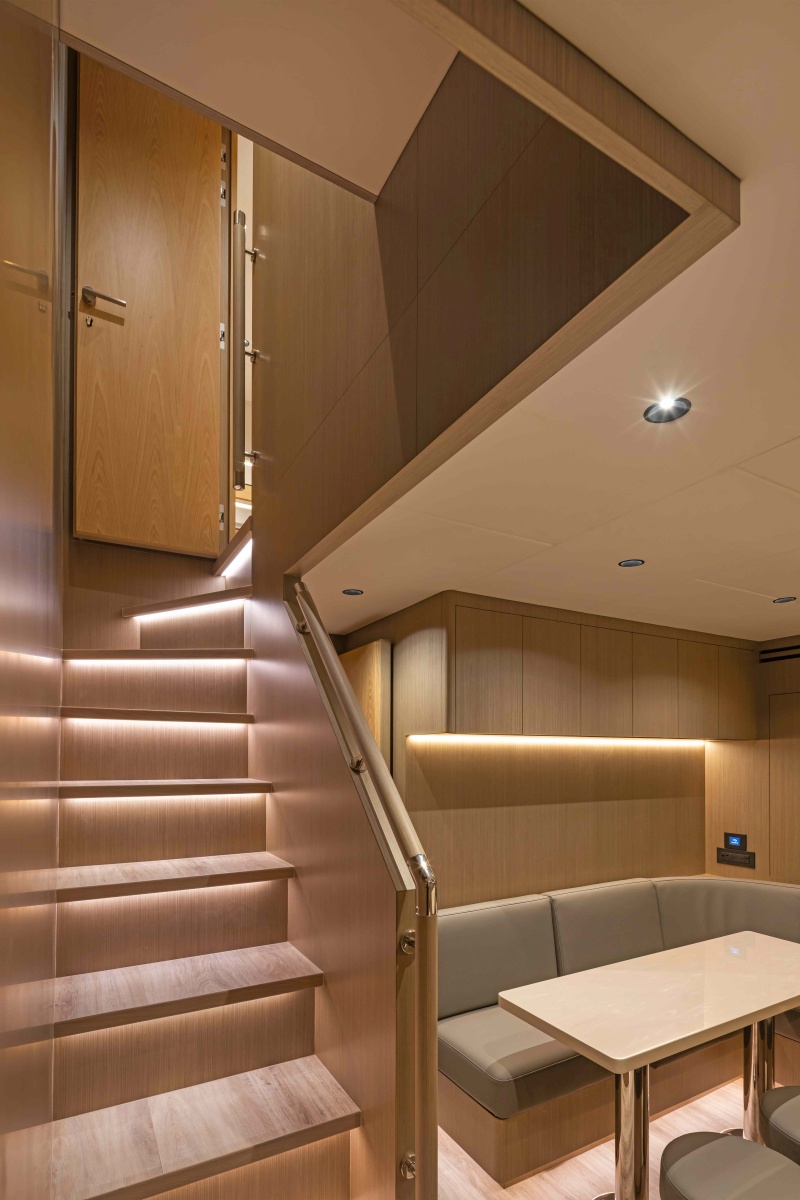

Crew staircase entrance into galley

Garmin navigational system includes:

Garmin GPS w/ Satellite compass

Garmin 48” 12kW 96nm open array and 72” 12kW 96nm open array radar system

(4) Garmin GPSMAP 9224 24" multifunction displays MBB300C for inputting the Maretron info to GARMIN display

(2) Garmin “5” color touchscreen display

(1) GARMIN "NEW" GRID 20 remote input device

Garmin Fishfinder/ Wind/ Speed/ Temp transducers

SIMRAD AP70 MK2 Autopilot System

Garmin AIS

(2) Garmin VHF

SAT TV antenna with a symmetric dummy dome & prewire for SAT phone

4G/5G Cellular router system with WiFi on board

Listing MLS by Yachtr.com
