1996 Hatteras
Overview
Specifications
Description
Built in the United States of America by Hatteras and delivered in 1996 with the original name “SEAQUEST”, and powered by Twin Deutz TBD620 V-16 Main Engines, which produce 2,700 Hp each, this Hatteras 92' is the largest and most highly optioned Hatteras Sportfish in the world.
This vessel was designed by Jack Hargrave, who also completed the naval architecture and interior design.
Featuring a four-stateroom layout with private crew quarters aft, on-deck galley, on-deck head, expansive salon, large aft deck, and luxurious skylounge and flybridge, this vessel cruises comfortably at 21 knots and reaches a top speed of 28 knots.
The main engines were rebuilt in 2012. Since her major refit in 2012, the interior has been constantly upgraded, featuring new soft goods, upholstered padded wall panels, carpeting, furnishings, artwork, and accessories, ensuring complete comfort while cruising. The vessel is also fully equipped for fishing.
Beyond Yacht Group is pleased to assist you in the purchase of this vessel. This boat is centrally listed by Merle Wood & Associates. It is offered as a convenience by this broker/dealer to its clients and is not intended to convey direct representation of a particular vessel
CONSTRUCTION
Fiberglass hull and superstructure, teak decks on Bridge deck Aft Deck and Flybridge
DIMENSIONS
General
Length Overall (L.O.A.): 92.00 feet (28.04 meters)
Beam (molded): 22.00 feet ( 6.71 meters)
Draft (loaded): 6.05 feet ( 1.98 meters)
Tonnage: 130.00 Gross tonnage
Capacities
Fuel Capacity: 4,963 US Gallons (18,786.99 liters)
Water Capacity: 840 US Gallons (3,179.75 liters)
Watermakers: 1,500 US Gallons per day (5,678,12 liters)
Lube Oil: 120 US Gallons (454.25 liters)
Waste Oil: 120 US Gallons (454.25 liters)
Holding Tank: 220 US Gallons (832.79 liters)
RPM / Speed /Consumption per hour / Range
RPM SPEED FUEL GPH per Engine Range NM
700 10.0 knots 23 US Gallons /hr. 1,800
800 12.0 knots 38 US Gallons /hr. 1,300
900 13.0 knots 51 US Gallons /hr. 1,103
1,000 14.0 knots 70 US Gallons /hr. 875
1,100 15.0 knots 92 US Gallons /hr. 781
1,200 16.5 knots 120 US Gallons /hr. 608
1,300 19.0 knots 146 US Gallons /hr. 577
1,400 21.0 knots 190 US Gallons /hr. 482
1,860 28.0 knots ---- ----

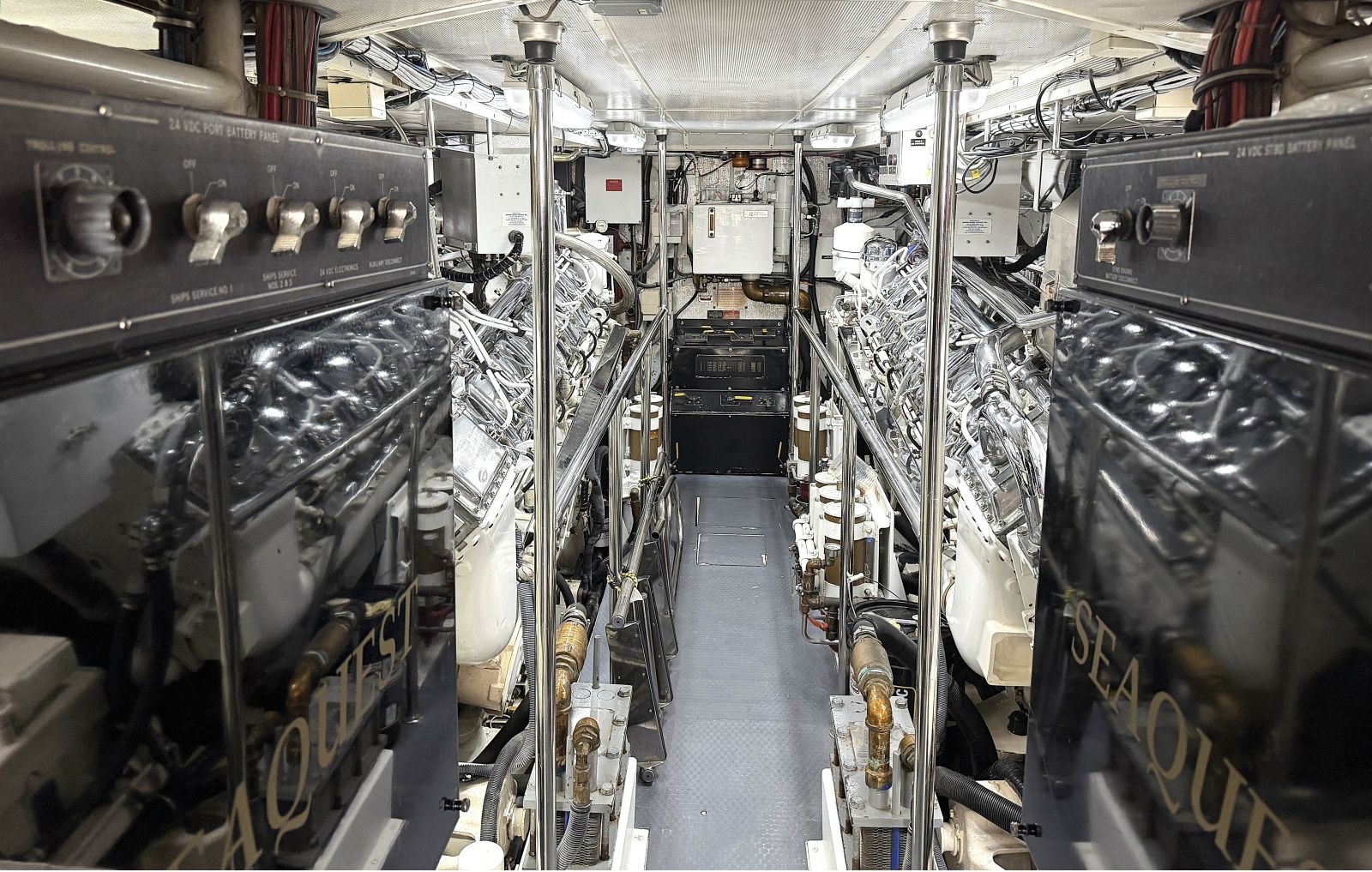

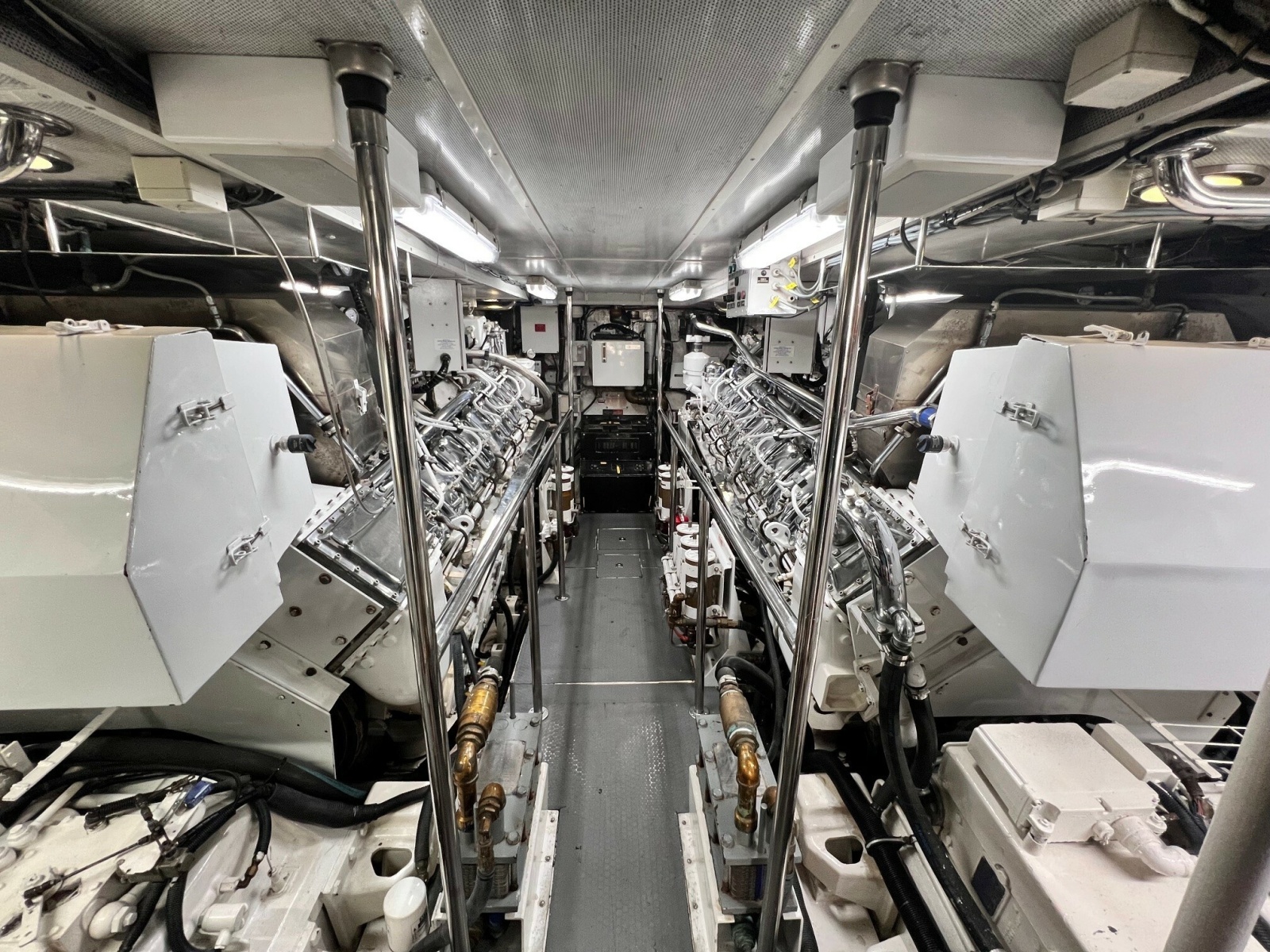

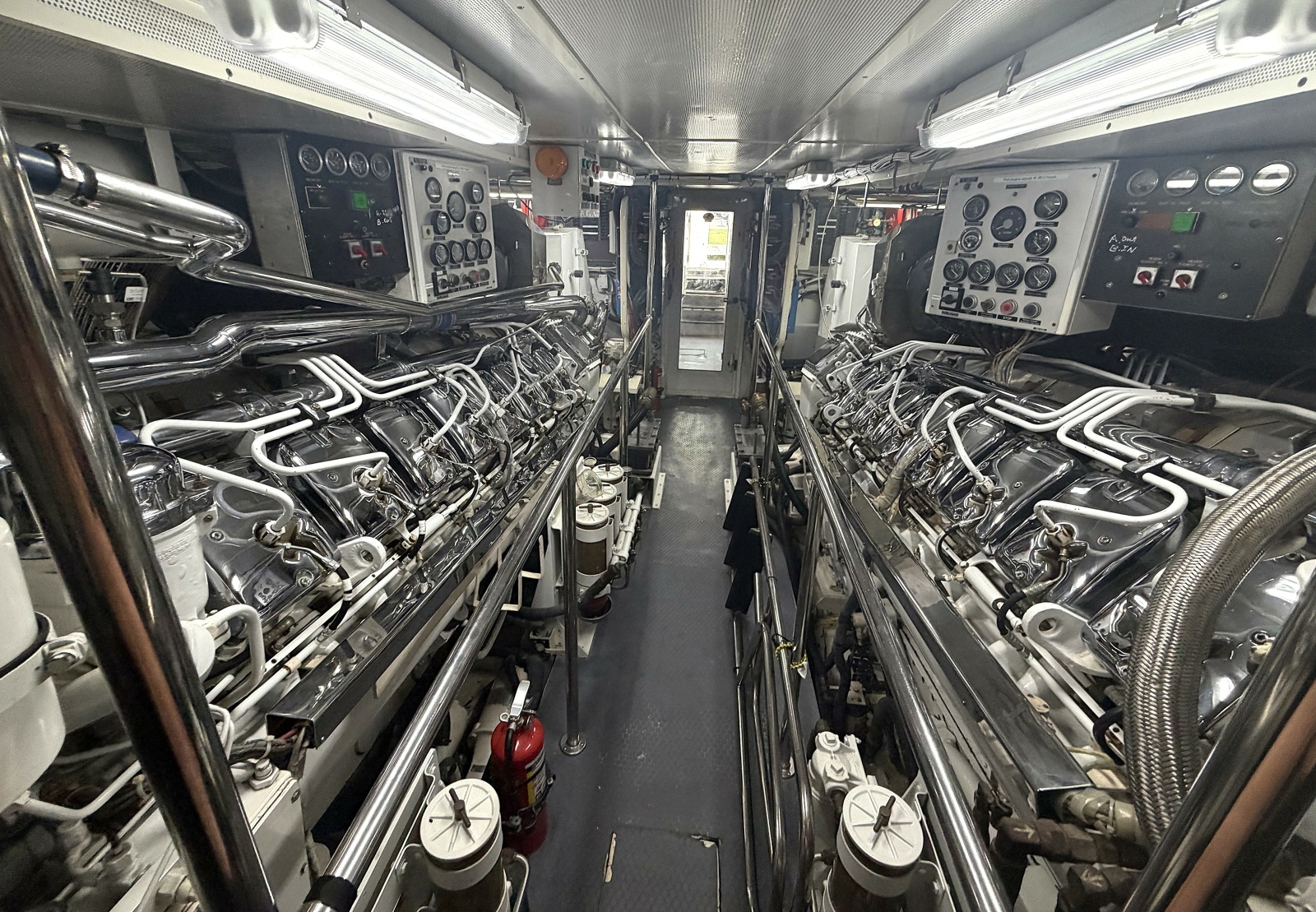

MACHINERY
Main Engines
Engine Type: (2) Deutz TBD 620 V16 Diesel’s @ 2,700 Hp each
Engine Hours:
Port: 4,217 total hrs. as of August 04, 2026
407 hrs. as of August 04, 2026, since rebuilt at 3,810 hrs.
Engine rebuilt in 2012
Starboard: 4,252 total hrs. as of August 04, 2026
392 hrs. as of August 04, 2026, since rebuilt at 3,860 hrs.
Engine rebuilt in 2012
Gearboxes for Main Engines: ZF transmissions 3.2:1 reduction
Drive: Straight
Generators & Electricity
Output: 240/110 A/C - 24 D/C - 60 Hz

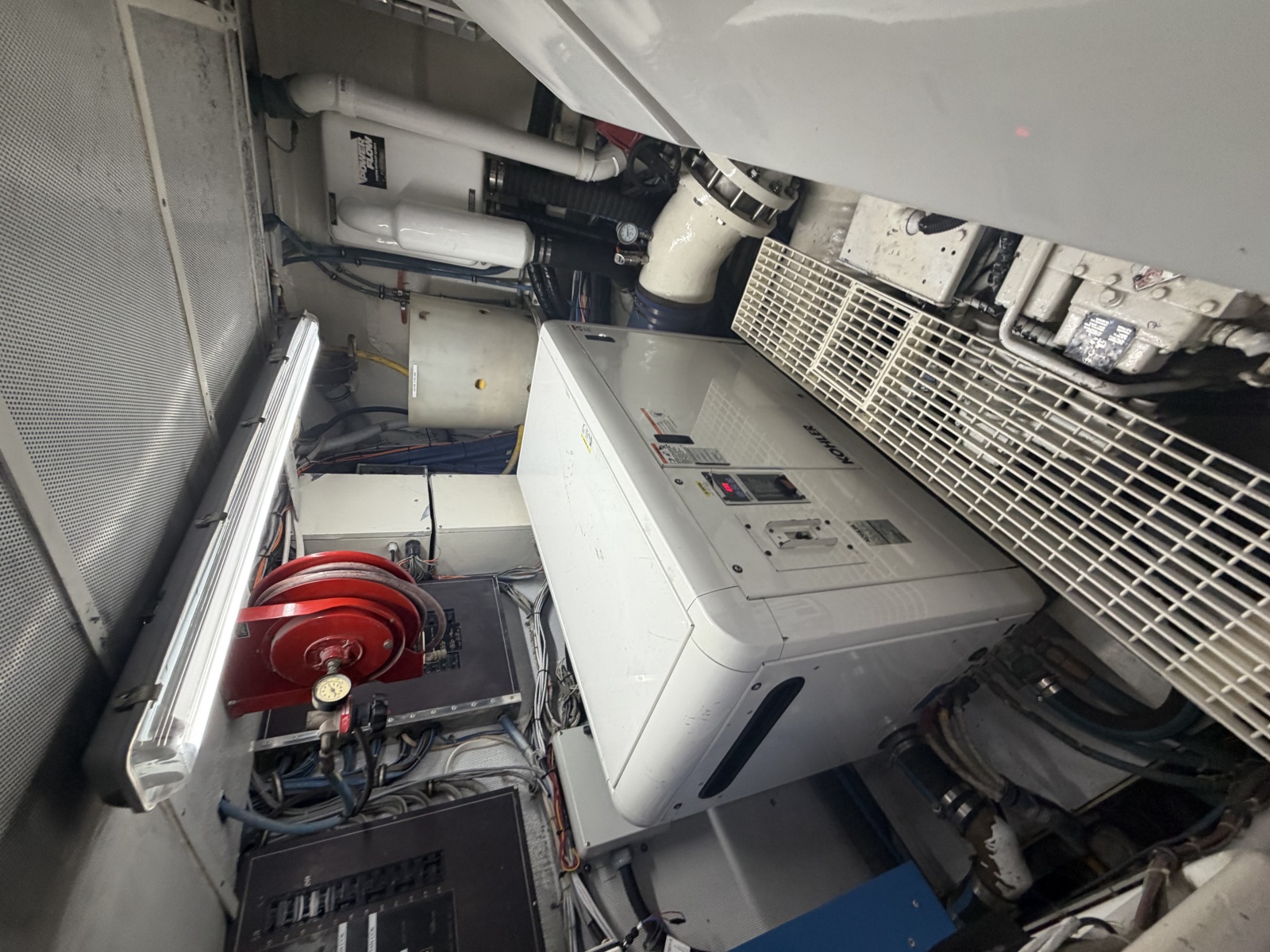

Generators: (2) Kohler 32EOZD 32kW Generators
Port Generator Hours: 499 hrs. as of August 04, 2026
New in 2012
Starboard Generator Hours: 224 hrs. as of August 04, 2026
New in 2012 – Bow Thruster PTO
Generator Fuel Consumption: Fuel burn range calculated at 4,500 gallons useable fuel and 2 GPH generator fuel consumption
Shore Power: (2) Single phase 100-amp cords with cable master
Batteries: (4) 8D Batteries – 24 Volts - Each battery bank is located outboard of the main engines in fiberglass enclosures
AC Converters: ASEA Voltage/Frequency Converter – New 2023
Air Conditioning
Type: “CTM” CW-60Hz Chilled Water A/C System
(3) 60,000 BTU Compressors - New 2026
New air handlers and controls
Other Machinery
Watermakers: 1,500 GPD watermaker (Need service)
Stabilizers: Naiad 12 square feet
Bow Thruster: American Hydraulic
Steering System: Hynautic
Fuel Separator & Filtration: Dual Racor 900 MA filters
Head System: Headhunter
Fresh Water System: Charcoal canister on tanks
Bilge Water Filtration: Yes
Marine Exhaust: (1) Completely new exhaust by Design Engineered Solutions (D.E.S.) - $130,000 - 2023
NAVIGATION, COMMUNICATION & ENTERTAINMENT SYSTEMS
Bridge Deck Helm – Navigation and Communication Systems
All New 2026
VHF/AIS: (2) Icom IC M605 with built-in AIS
AIS: (1) Furuno FA-170 safety beacon transmitter
(1) Scanstrut ROKK Wireless Edge (SC-CW-05E)
Radar, Plotter, Depth Sounder, Autopilot Interface, Fish Finder:
(3) 16” Garmin GPSMAP 8600 multifunction series with 72nm autopilot
(4) 9” Garmin GPSMAP 8616xsv multi-screen, video & sonar capable – backup system
GPS: (1) Furuno commercial-grade GPS position sensor
Systems Monitor: (1) 18” Technics BV
Magnetic Compass: (1) 8” Ritchie compass
Auto Pilot: (1) Garmin GHC 50 – helm
(1) Garmin GHC 50 – overhead
Spotlight: (2) ACR RCL-100 LED Searchlight with controllers
Flybridge – Navigation and Communication Systems
All New 2026
GPS, Plotter, Depth Sounder: (3) 16” Garmin GPSMAP 8600 multifunction series
(2) Garmin GPSMAP 743 – back up system
Stabilizer Controls: Naiad
Bow Thruster Control: Yes
Other:
(1) Furuno MCU-004 remote control joystick for chart plotter radar
Garmin GRID 20 interface w/ entire bridge navigation system – helm chair
VHF: (1) Icon
Spotlight Controls: ACR
Displays: Digital ACR displays
Entertainment System:
Video Equipment
TV’s:
(1) 55” TV - Main Salon - New 2026
(1) 50” TV - Galley - New 2026
(1) 50” TV - Master Stateroom - New 2026
(1) 32” TV - VIP Port Stateroom - New 2026
Audio Equipment
Stereo’s: Aft deck speakers with controls
GALLEY & LAUNDRY EQUIPMENT

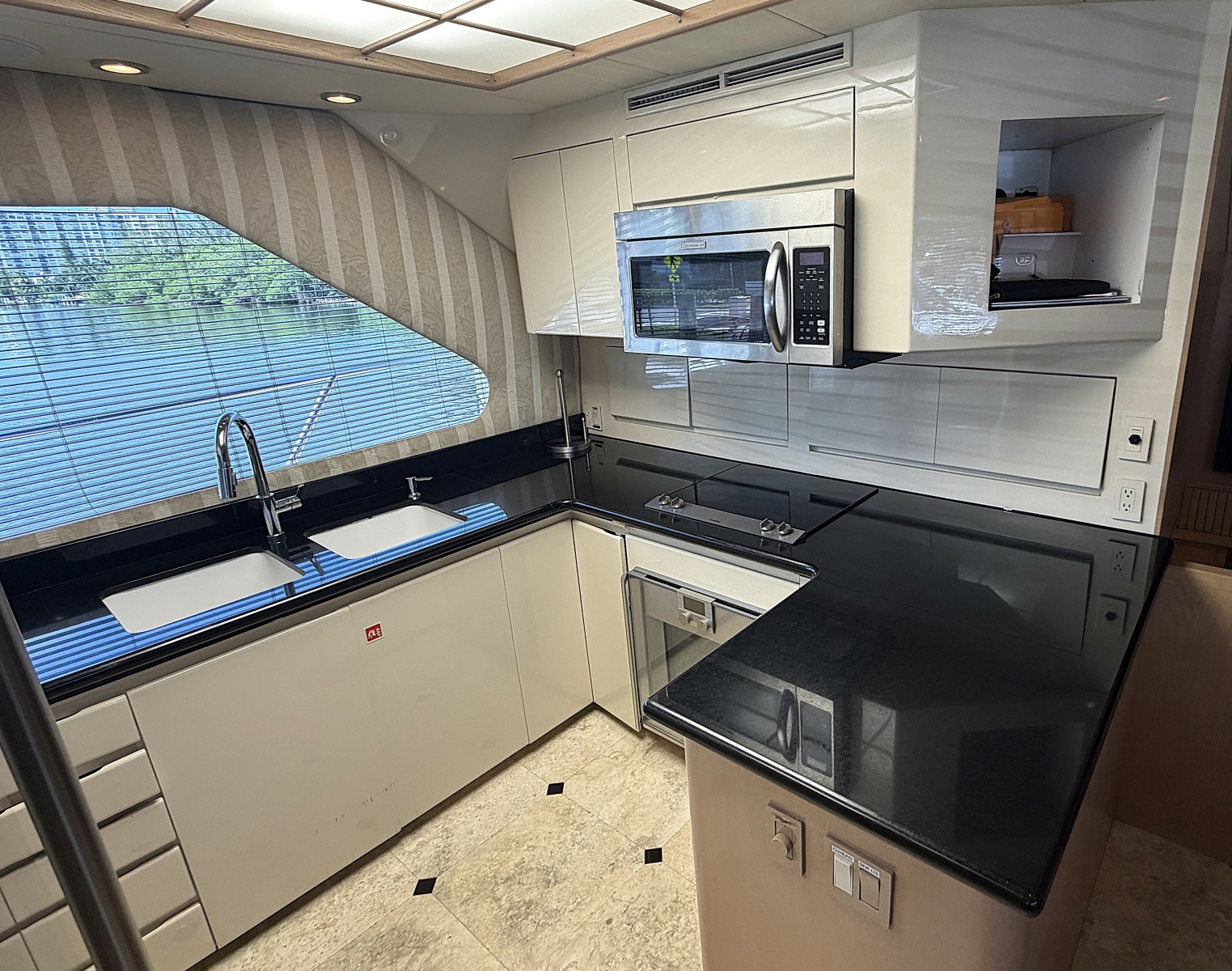

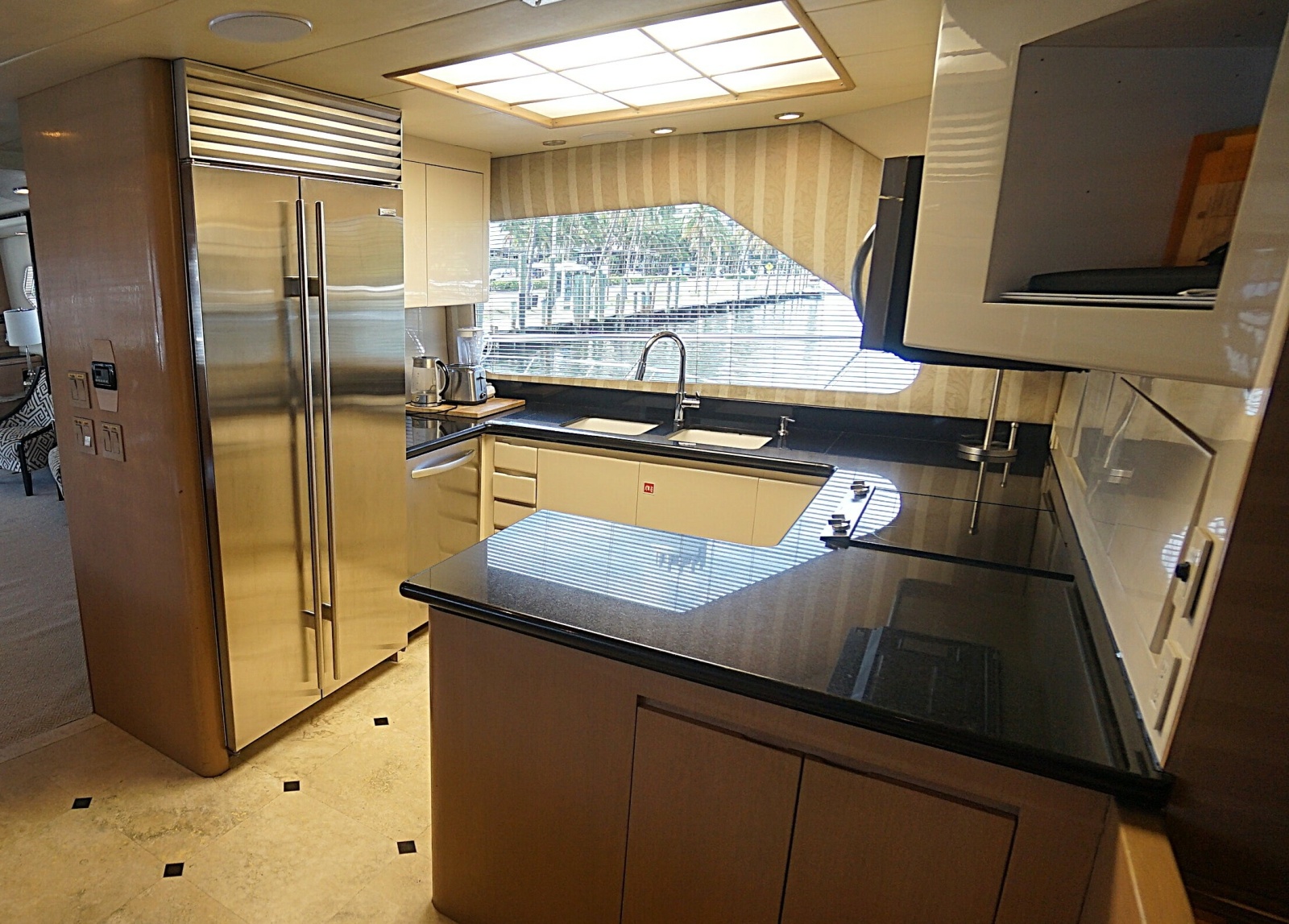

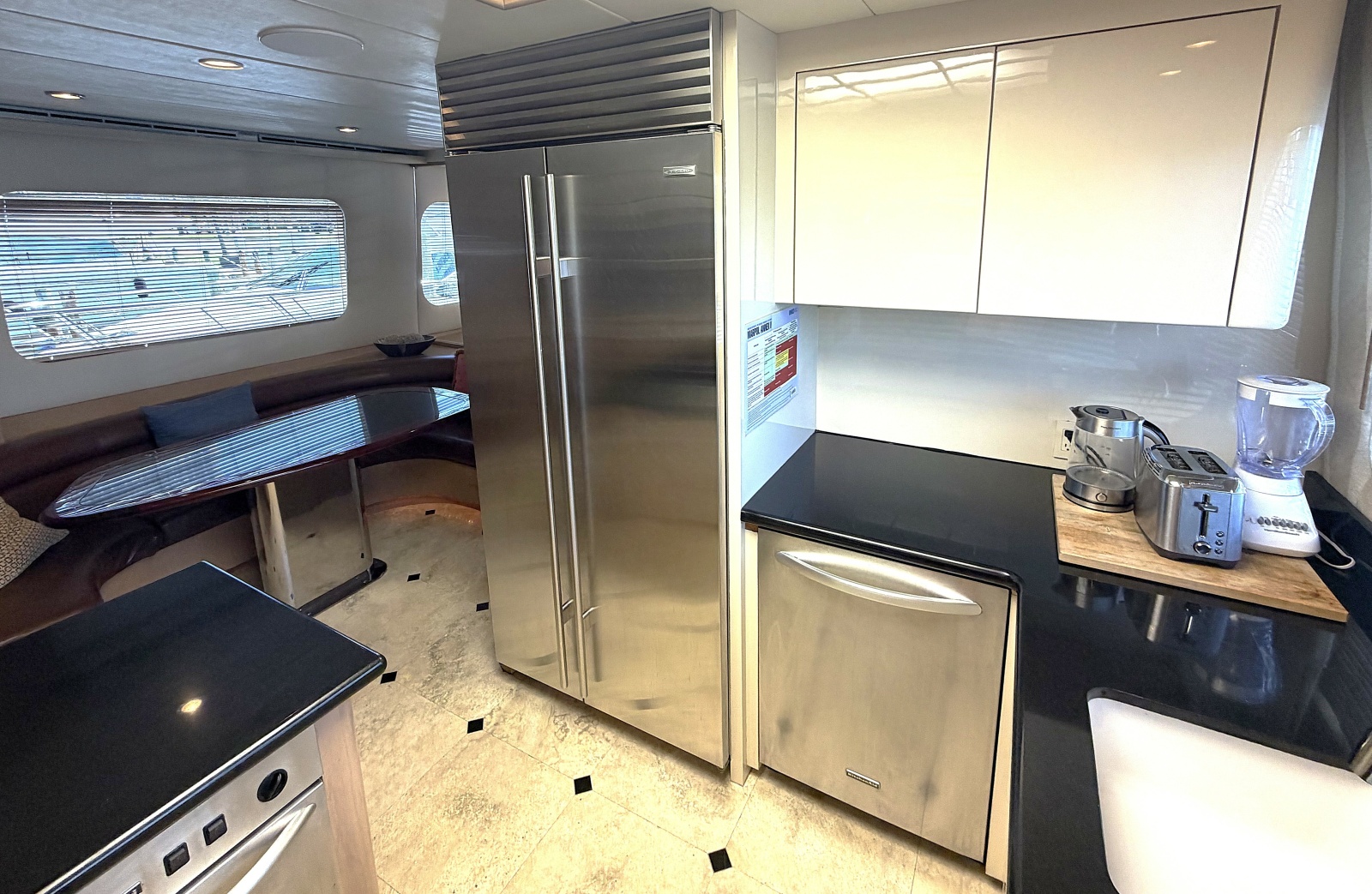

Main Galley Cooking Equipment
(1) 24" Gaggenau BI SGL oven
(1) 24" Gaggenau electric cooktop with 4 burners
(1) Kitchen Aid microwave oven
(1) Kitchen Aid 2.0CF microhood combo
Refrigeration/Freezer:
(1) Sub-Zero refrigerator/freezer
(1) 18" Kitchen Aid icemaker
Dishwasher: (1) 24" Kitchen Aid dishwasher
Other:
(1) Double recessed sink
(1) In-Sink-Aerator garbage disposal
(1) Kitchen Aid trash compactor
(1) Large pantry
(1) Kitchen Aid icemaker – Salon
5.2 Crew Galley/Mess Equipment
Cooking Equipment: (1) Panasonic microwave
Refrigeration/Freezer: (1) Scotsman icemaker
Additional Galley Equipment
Cooking Equipment: (1) Pull-out Kenyon electric grill – New 2026
Refrigeration/Freezer: (1) Front-loading refrigerator/freezer – Cockpit
New compressor
Other: (1) Wet bar with sink & storage – Aft Deck
Laundry Equipment
Main Laundry Equipment:
Whirlpool Stacked Washer and Dryer (Replaced) – Guest hallway
TENDERS & TOYS

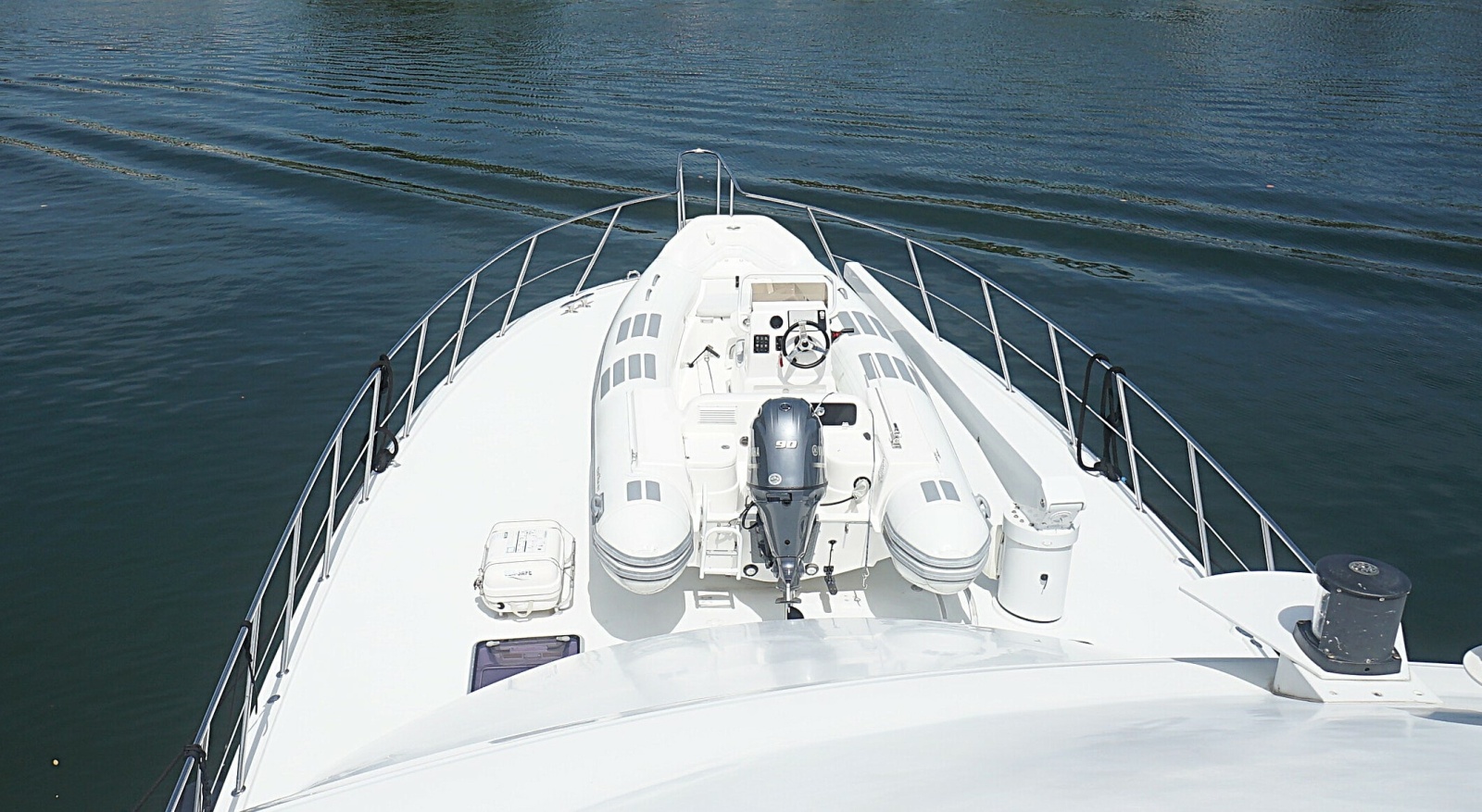

Tenders: (1) 17” DL Caribe with Yamaha 90 Hp, 2023 - (Excluded)
DECK EQUIPMENT
Anchor Windlass System: Maxwell 4,500 windlass
Anchors: (1) Anchor
Anchor Chain: 200’
Boat Crane and Davits: MarQuipt 2,500 lb. low profile davit
Swimming Platform: Yes, with ladder

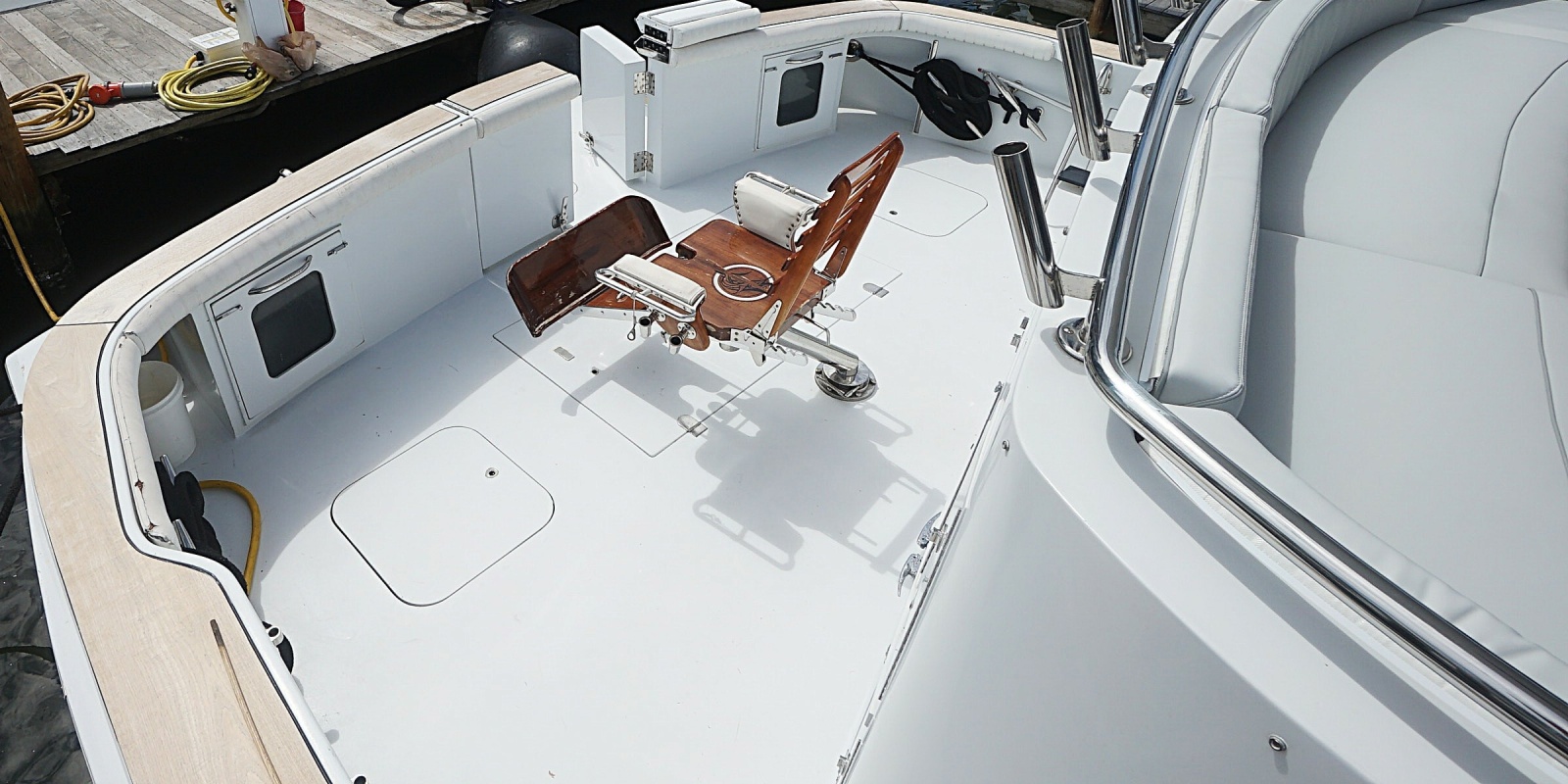

Fighting Chair: Side mounted
Outriggers: Rupp
Live Bait Wells:
Pull-outs in each corner of Cockpit
Fish box in Cockpit Deck
SECURITY, FIRE FIGHTING & SAFETY EQUIPMENT
Security Equipment
CCTV System: Garmin with Tera Rated
Cameras: (9) Cameras
Monitors: (1) Monitor
Fire Fighting Equipment
Fire Control System: Automatic
Fire Extinguishers:
(2) 300 LD FE 36
(2) ABC Dry Chemical handheld
Air Ventilation: Engine Room
(4) Delta T Systems supplies marine-grade 230V AC axial supply fans with fire dampers
Safety Equipment
Life Rings: (2) Life rings
Flares: (1) Flare in box
Other:
(2) ACR RCL-100 LED Searchlights with controller
Dual air horn
ACCOMMODATIONS

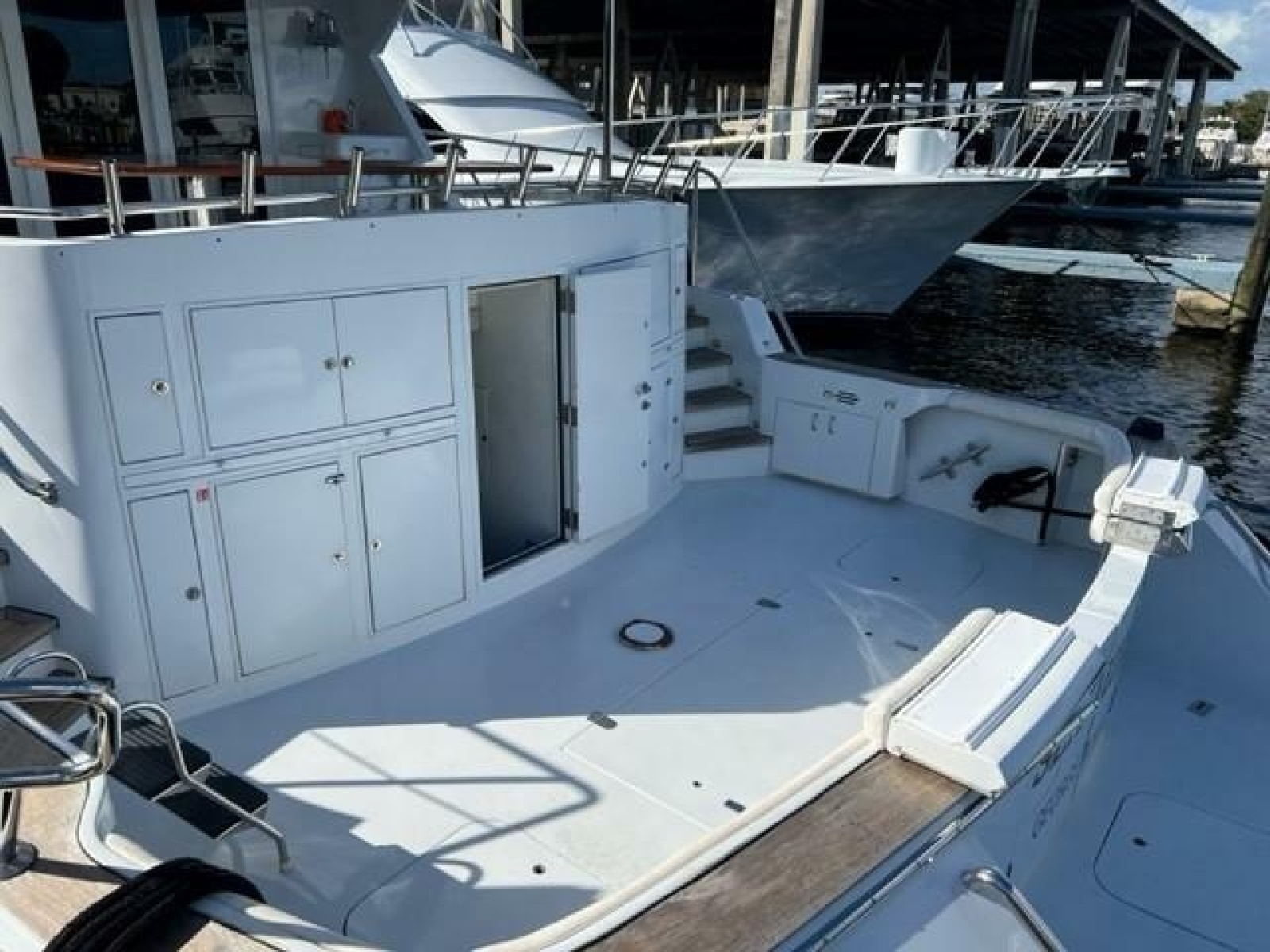

COCKPIT
• Molded Live Bait Wells in Transom
• Transom doors
• Storage cabinets with (2) sets tackle drawers
• Fish box in deck
• Cockpit coaming lights
• Swim platform with ladder
• Seawater and freshwater wash-down

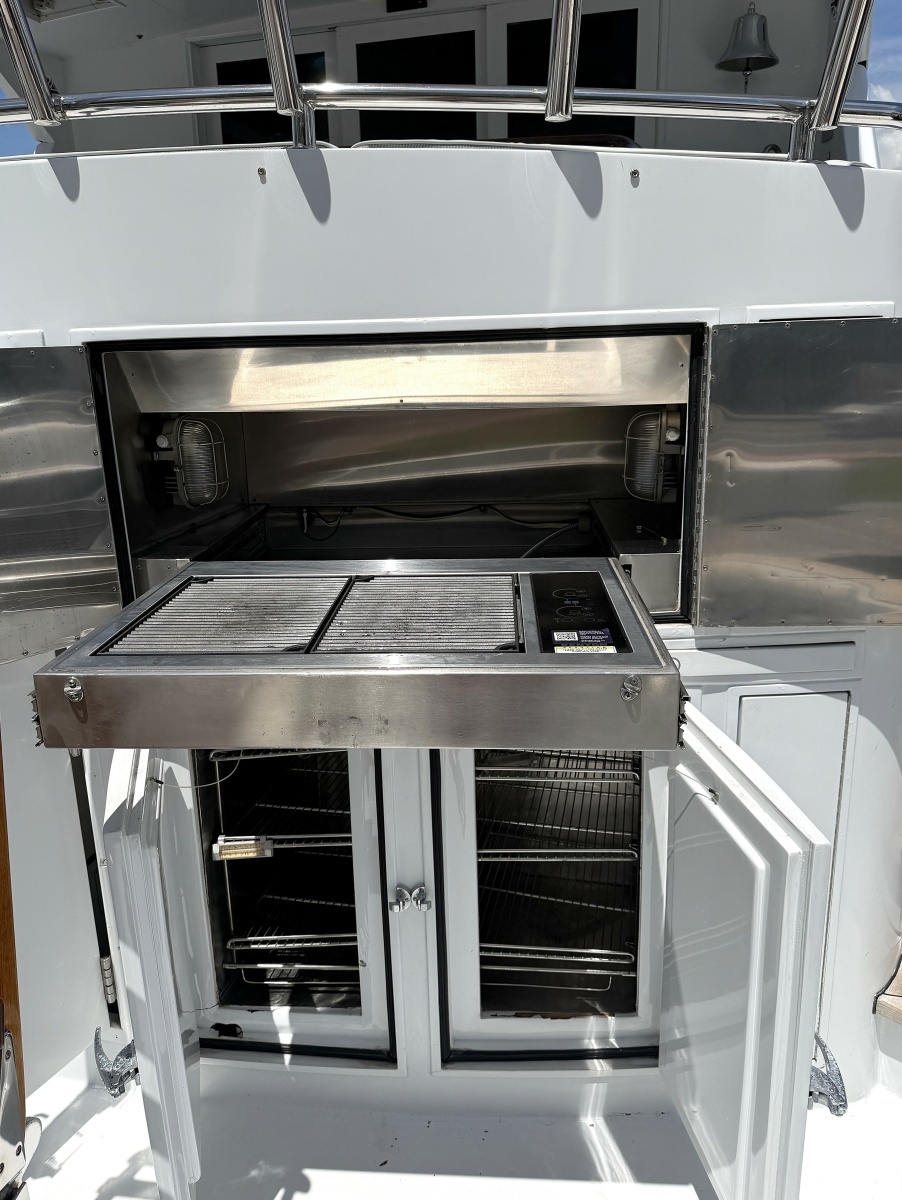

• Front-loading refrigerator/freezer with new compressor
• Access door to engine room and crew quarters
• Pull-out electric grill
• Teak coaming
• Fiberglass non-skid deck - New 2023

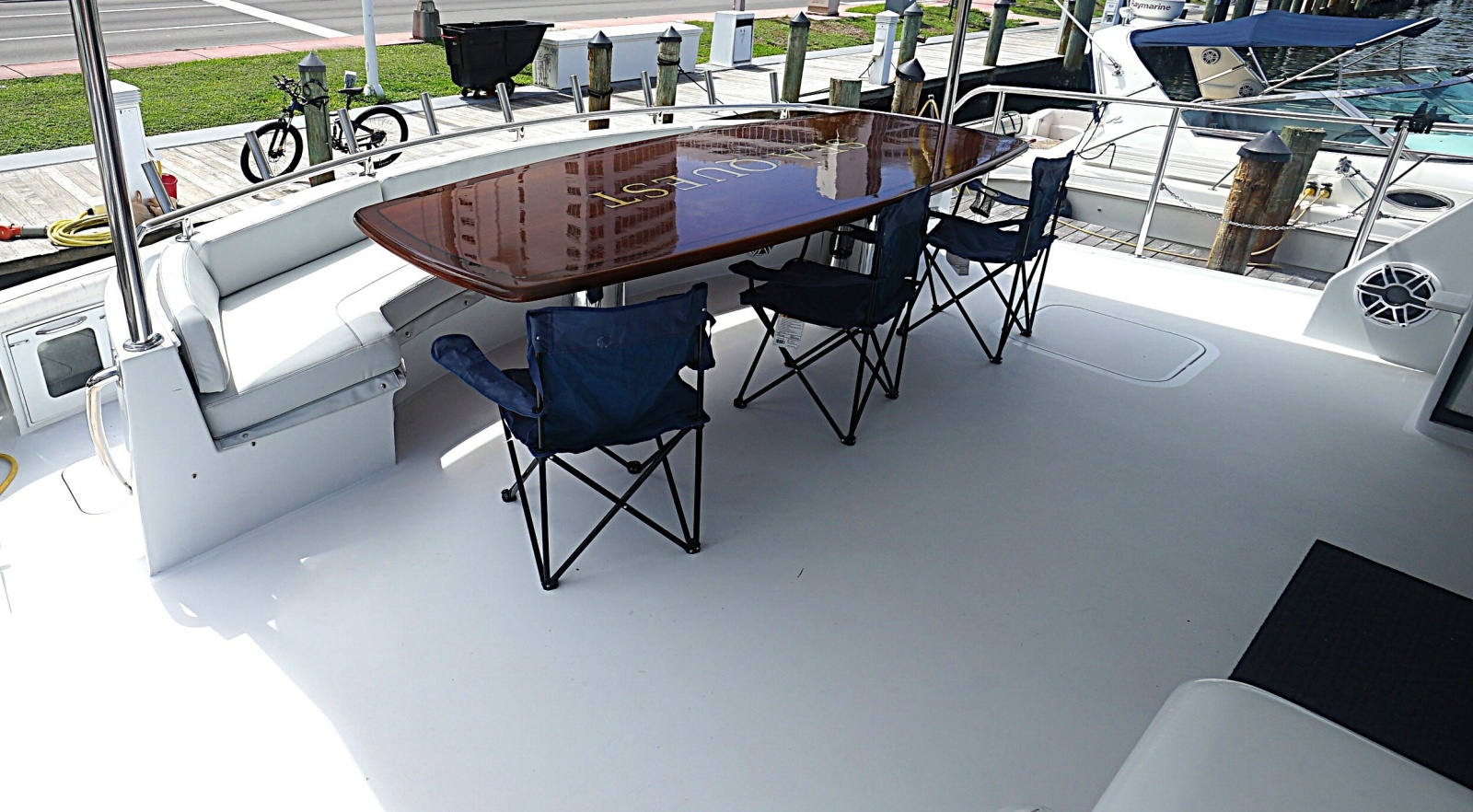

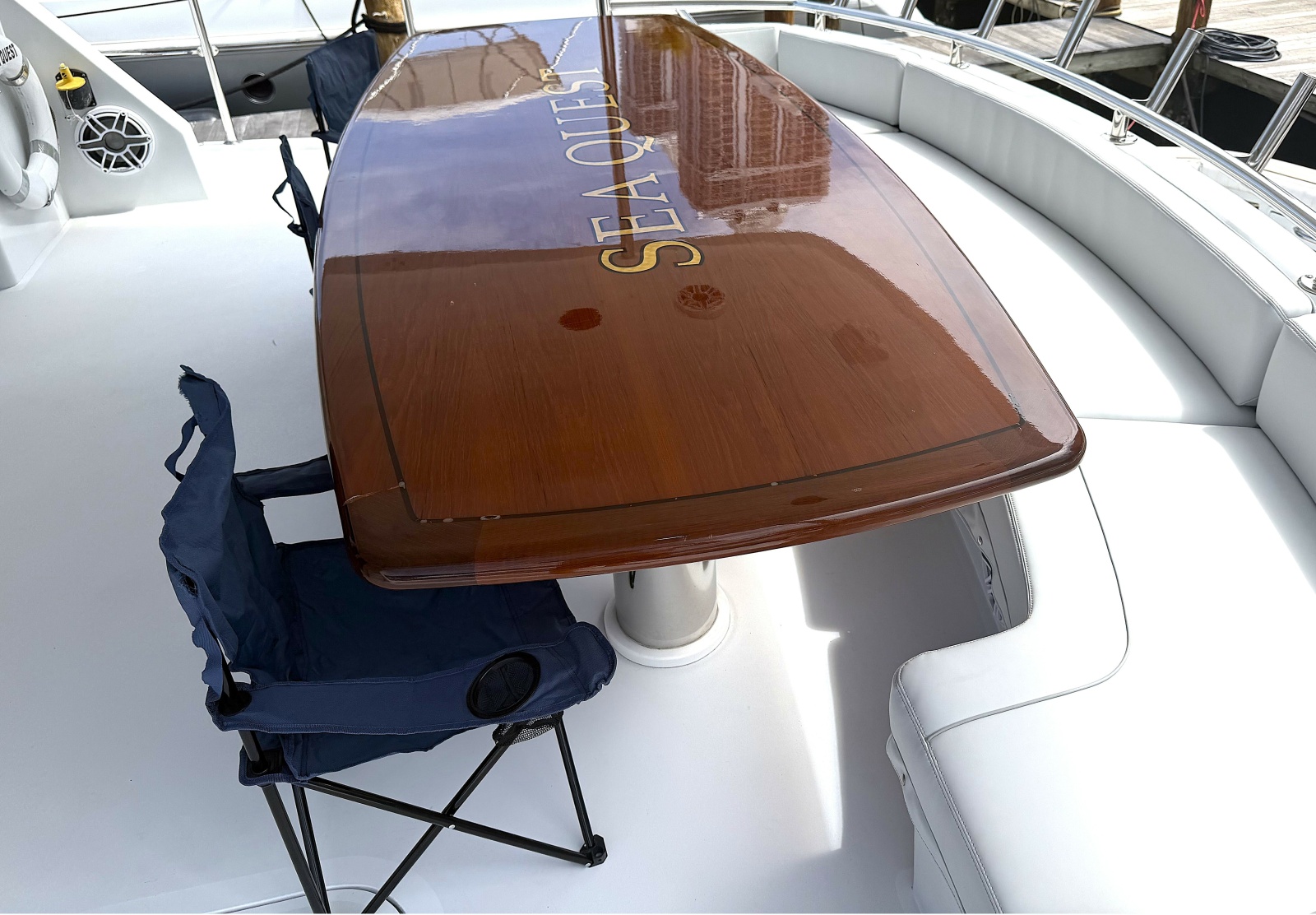

LOWER AFT DECK
• U-Shaped bench seating with new cushions - 2026
• Overhead speakers - 2026
• (4) Folding chairs
• Murray Brothers hi-gloss bow-shaped teak table
• New non-skid decks – January 2023
• Fold-down ladder to bridge
• Wet bar with sink and storage to starboard
• CCTV security camera
• Rocket launcher with (9) rod holders

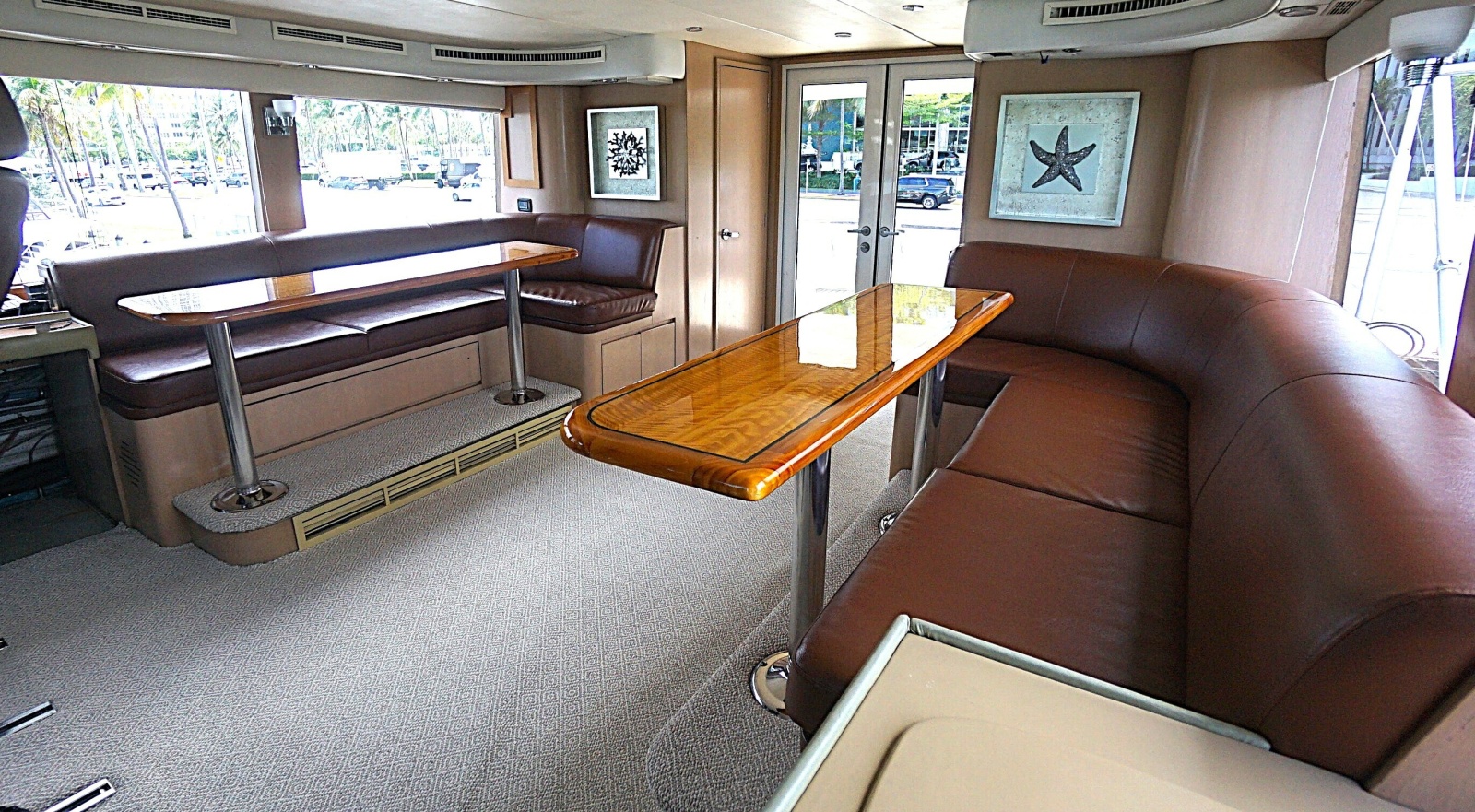

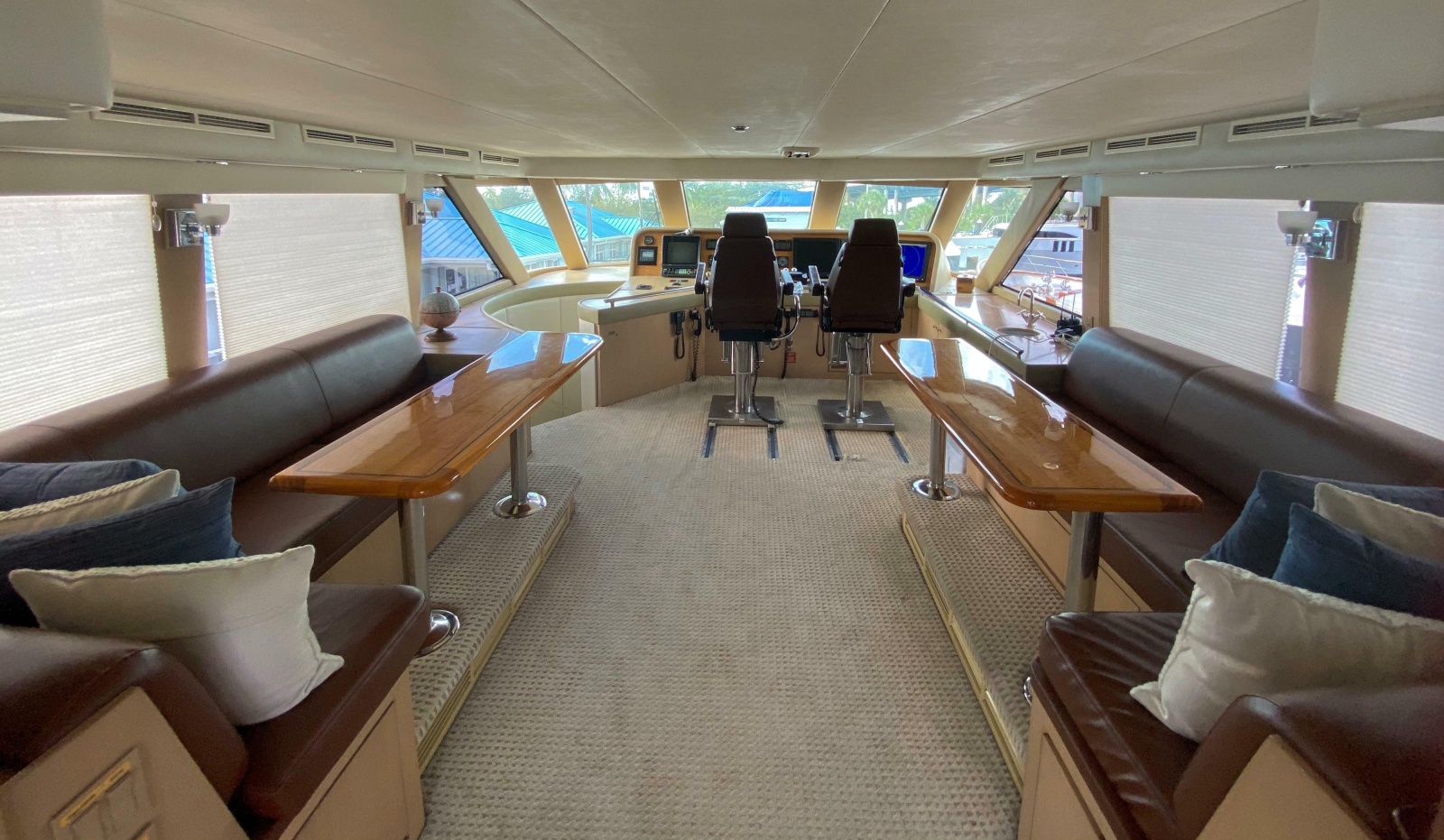

BRIDGE DECK / SKYLOUNGE

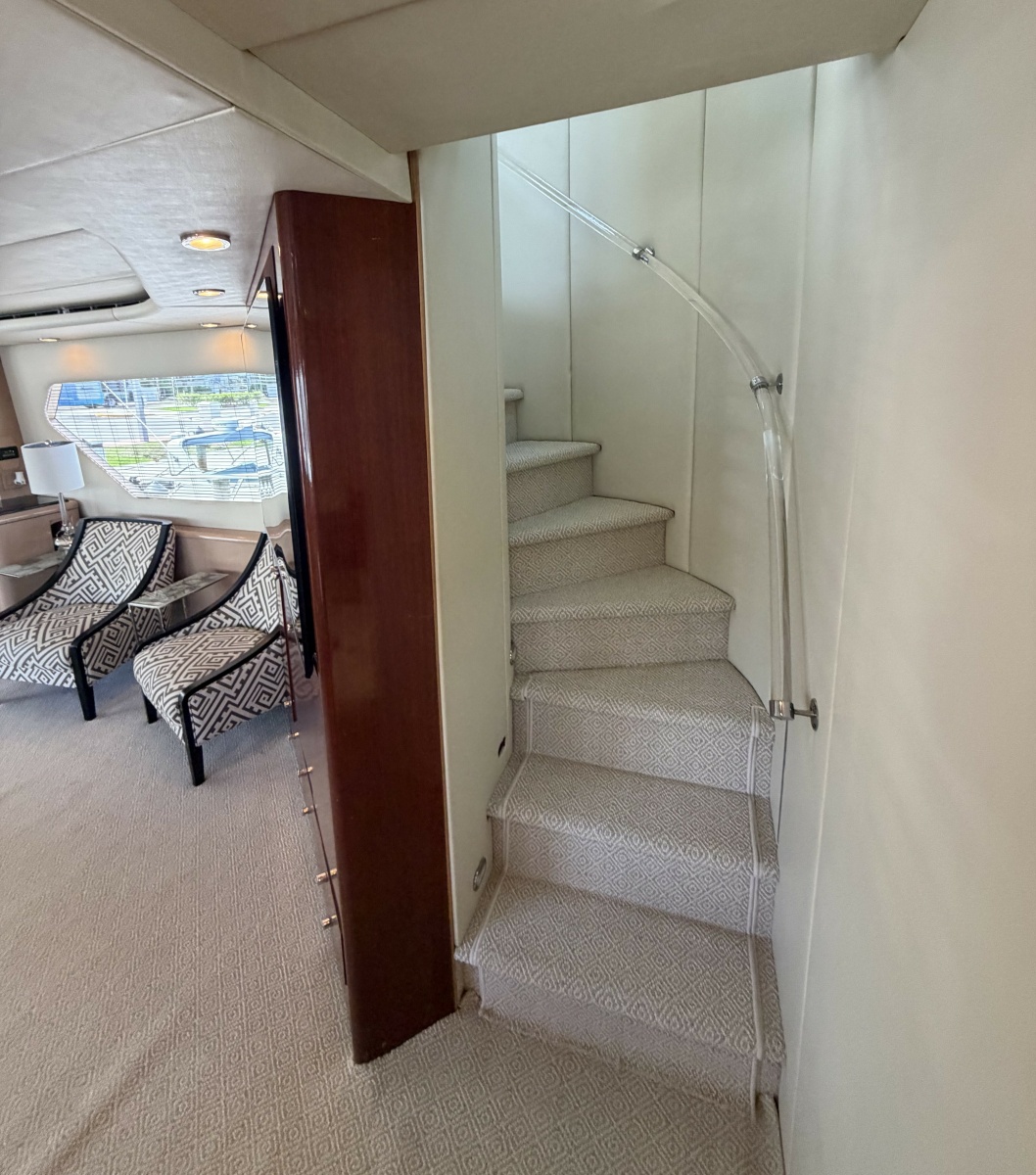

• Curved interior staircase from Salon up to the enclosed Skylounge

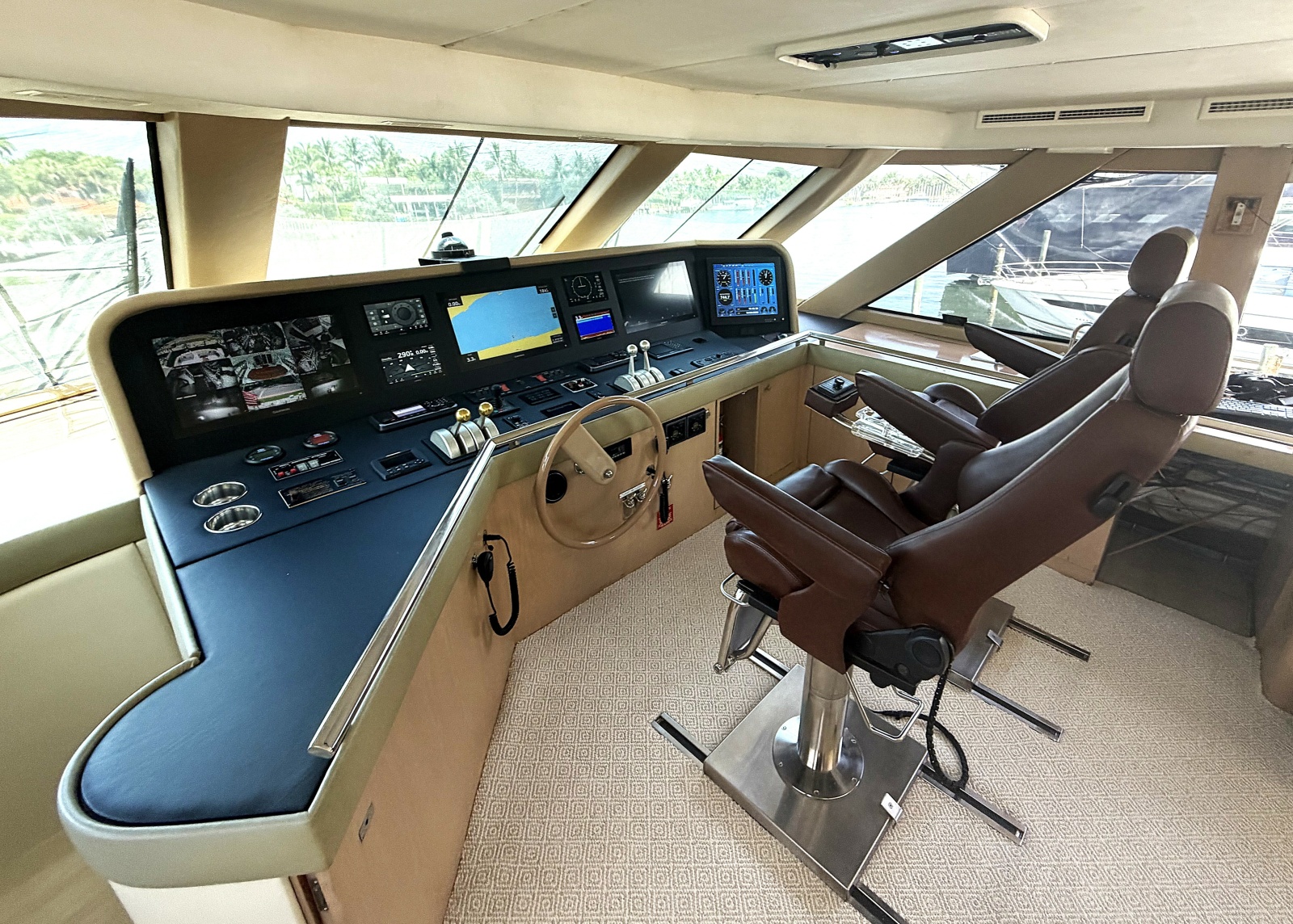

• Full helm and navigation station, forward
• Captain and companion leather helm seats

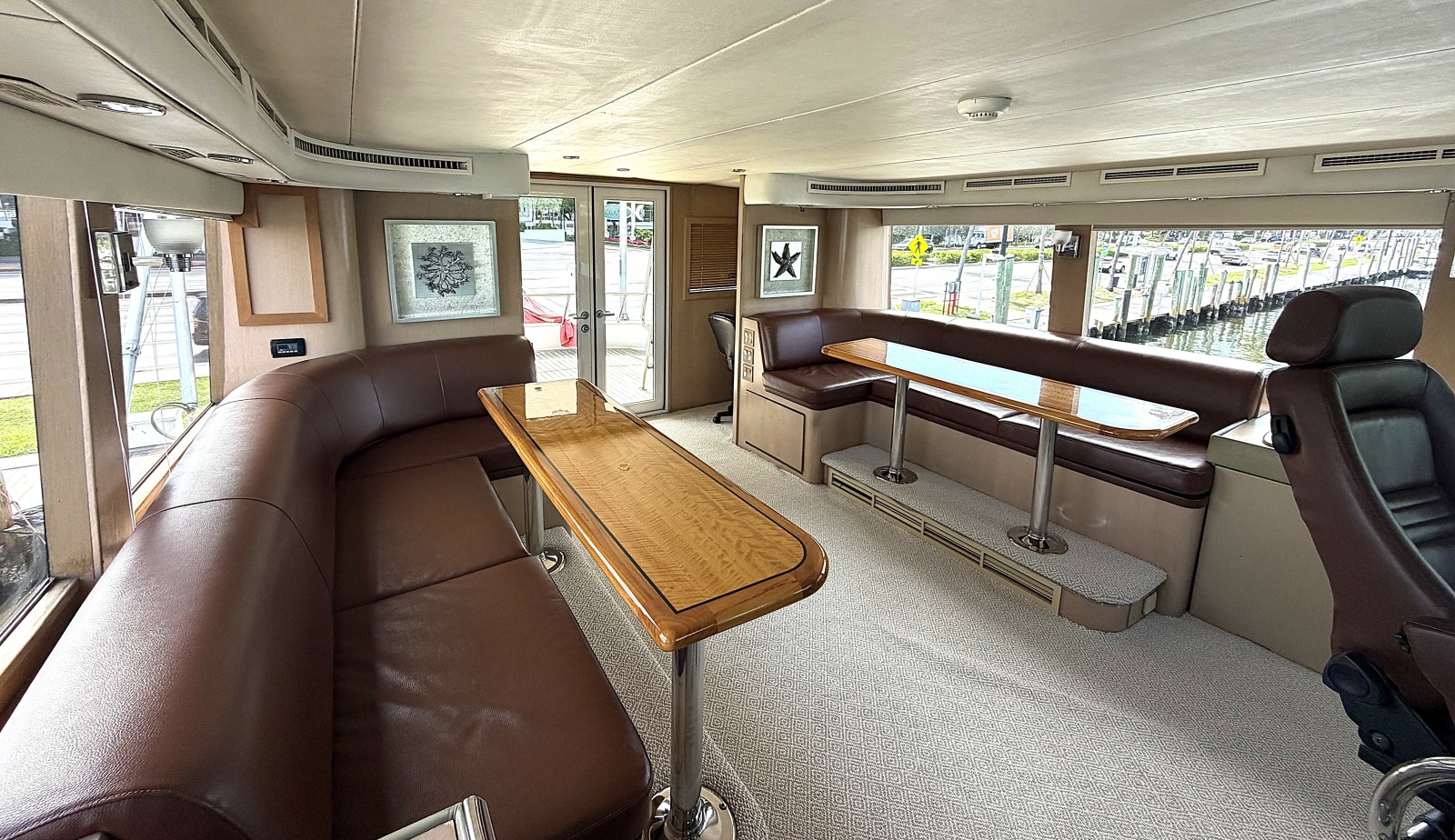

• (2) Upholstered leatherette settees with raised tables, port and starboard

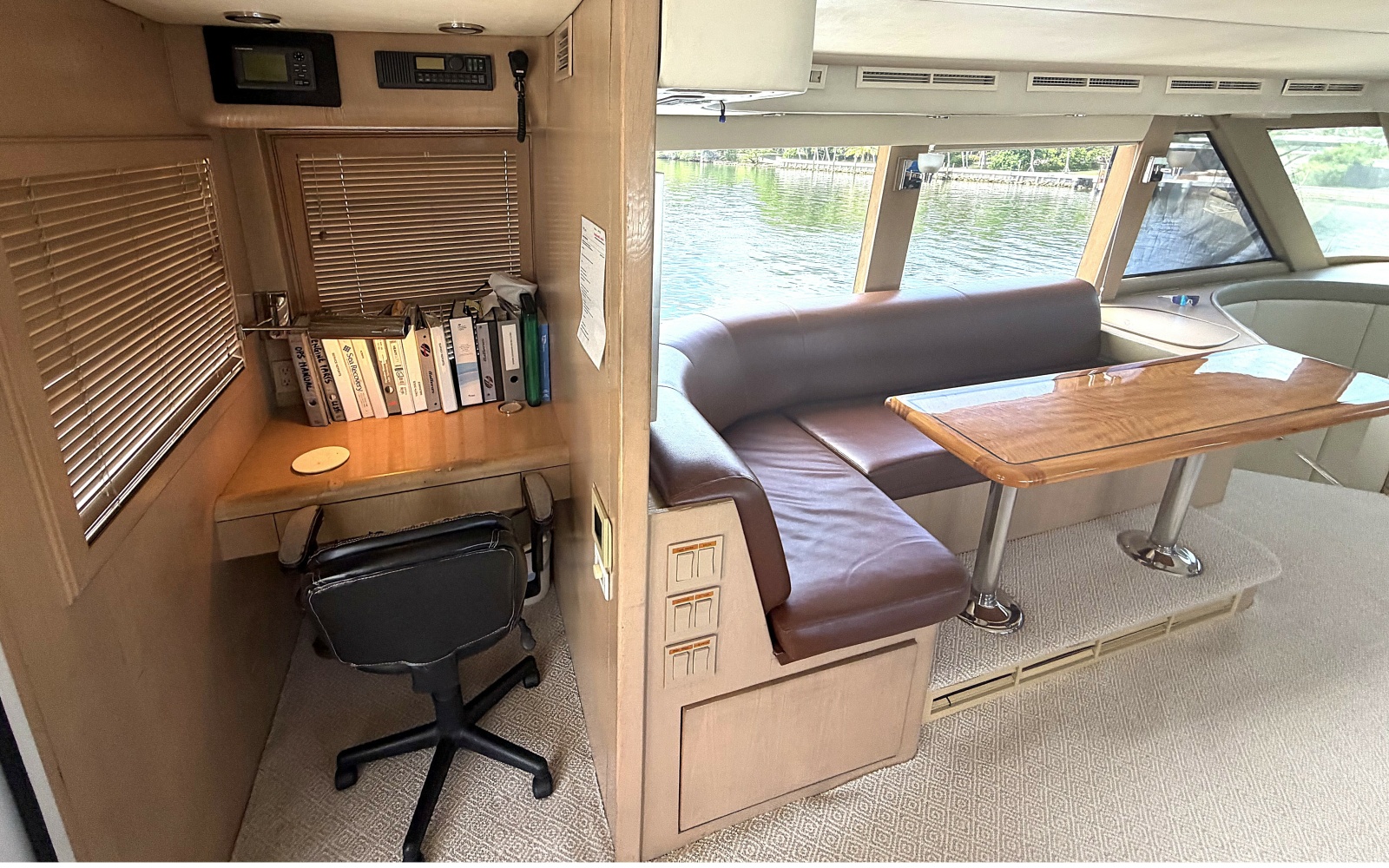

• Captain's desk aft to port with chair, lamp, Icom VHF
• Beige carpeting - 2016
• Overhead soffit with lighting

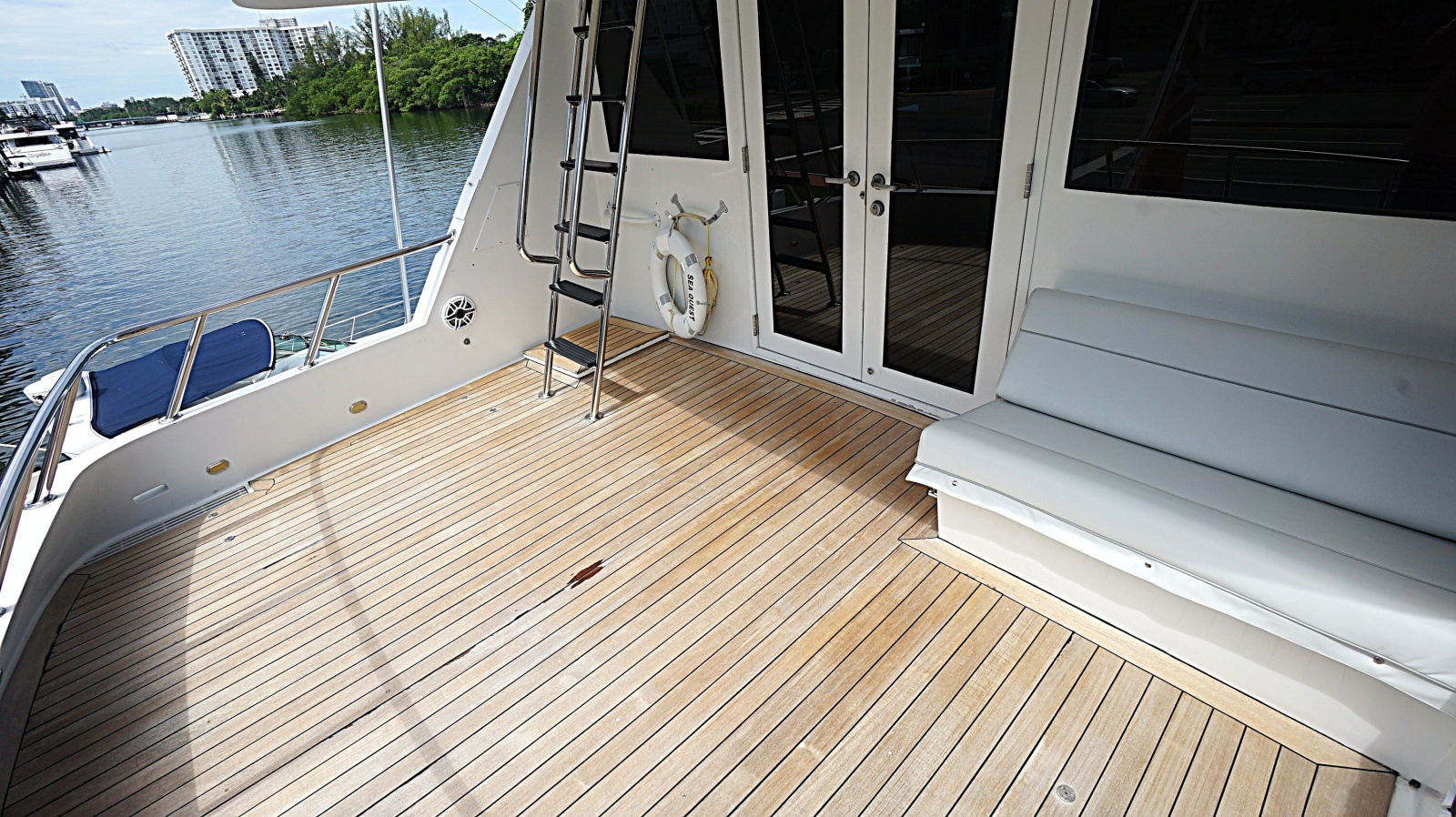

• Double glass doors to the exterior Skylounge aft deck
• Wet bar with sink and storage
• On deck head with Corian vanity, mirror, wall covering, and Amtico flooring

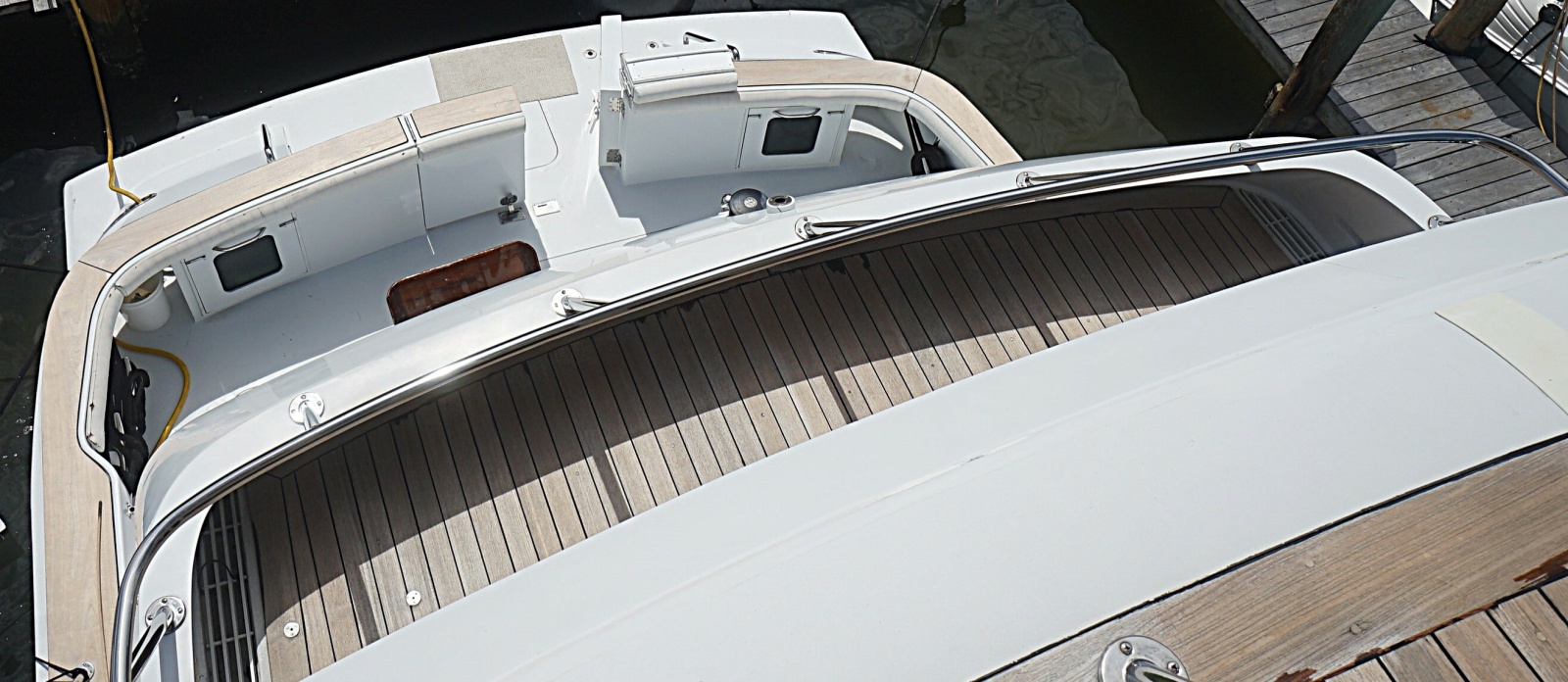

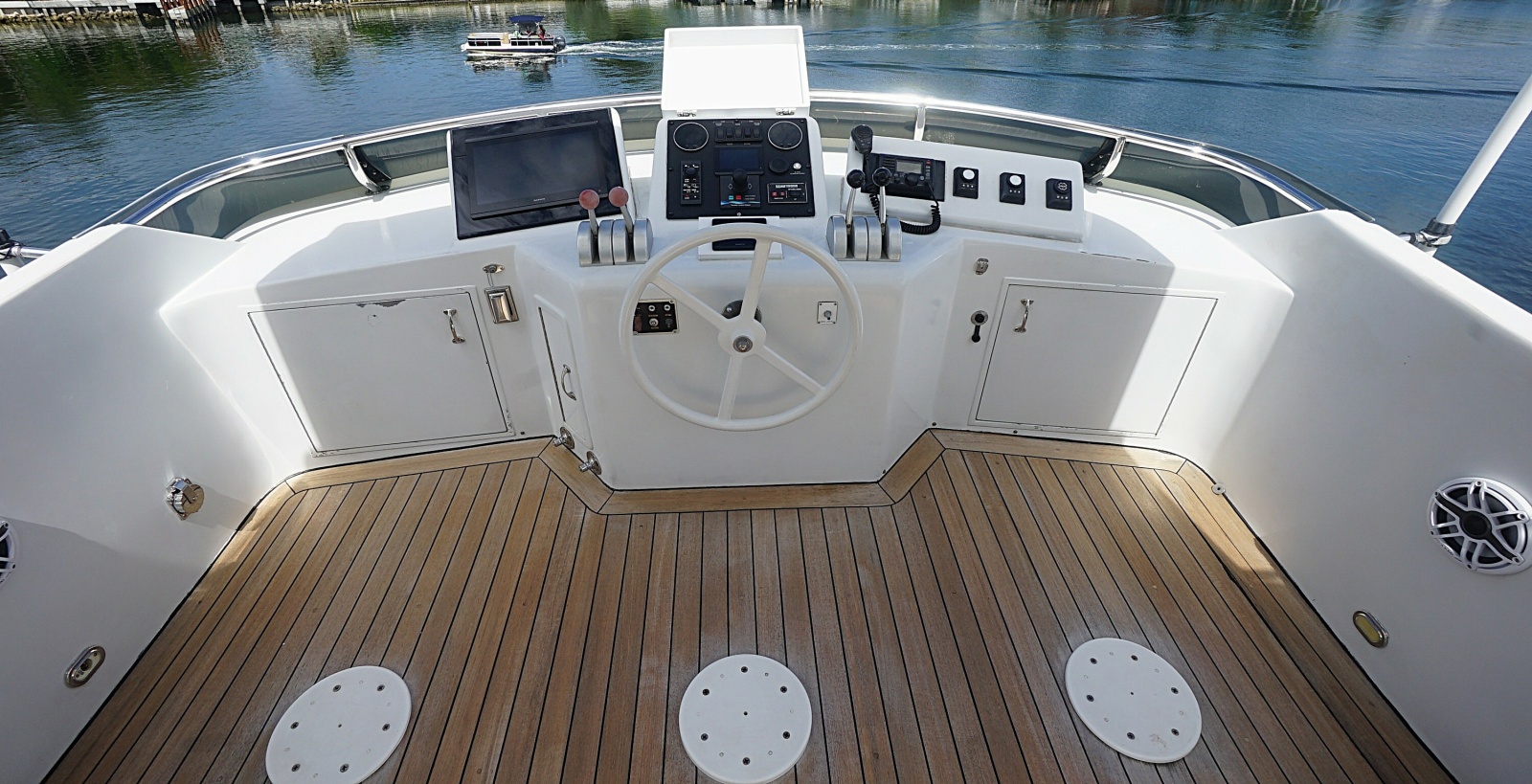

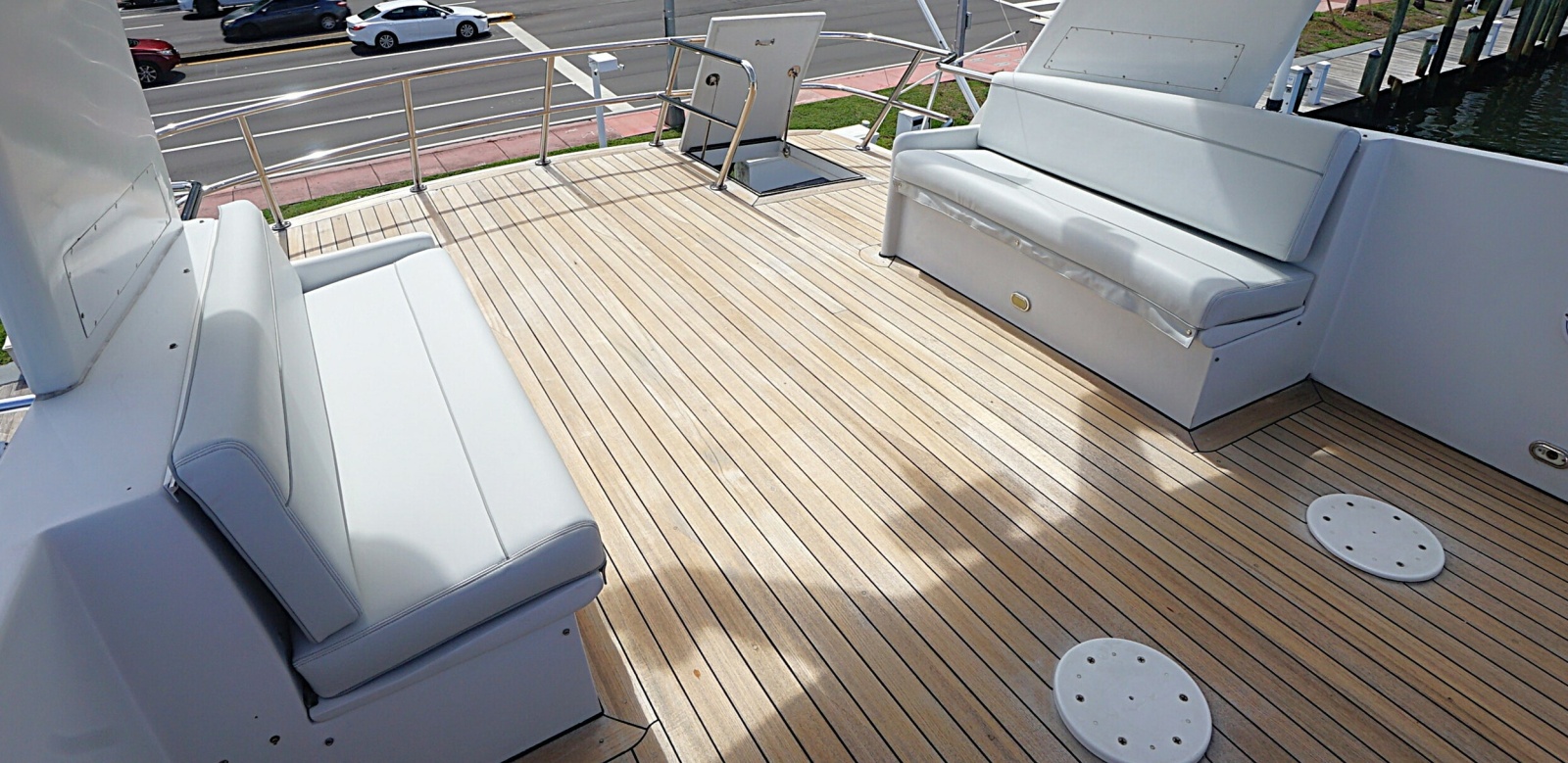

FLYBRIDGE
• Aft of the Skylounge through double glass doors to the Skylounge Aft Deck you will find the ladder up the Flybridge
• Aft control station
• Stainless steel ladder up to flybridge
• Control station on flybridge with windscreen
• Additional 2 sofas
• Stainless steel rails and stanchions
• Flybridge radar arch
OWNER

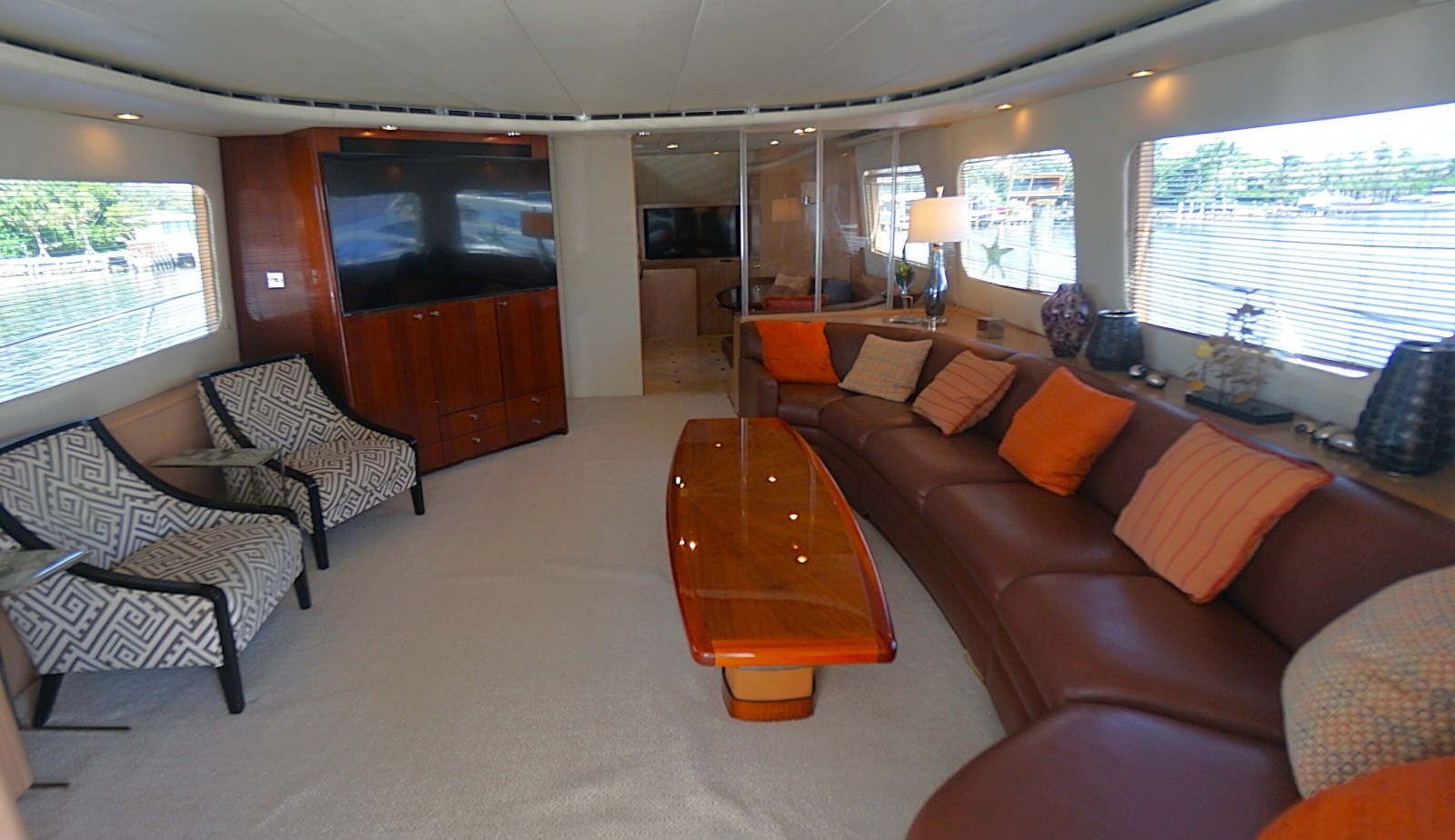

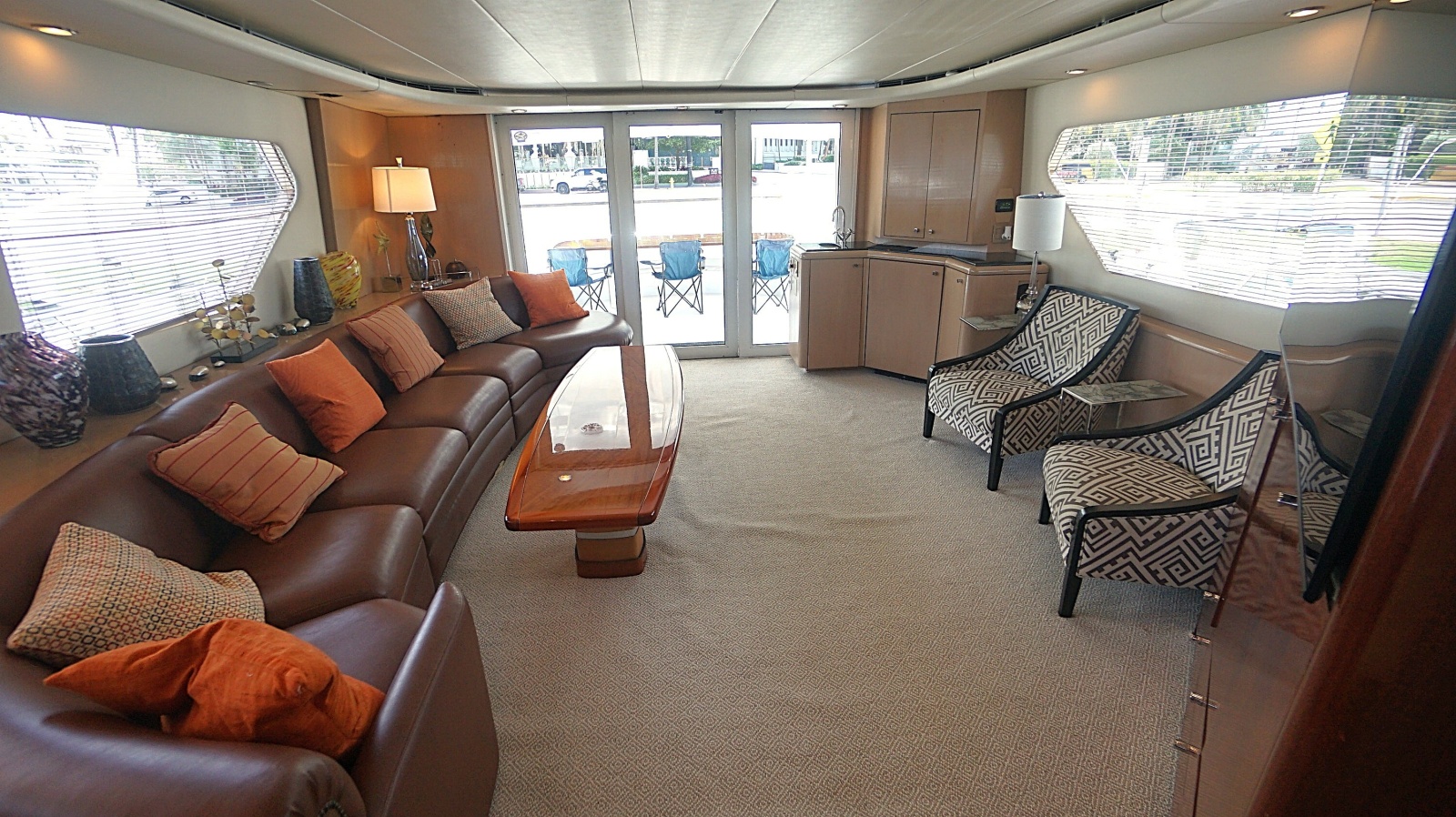

MAIN DECK SALON AND GALLEY
• Large Salon
• Oversized sofa
• Large entertainment center

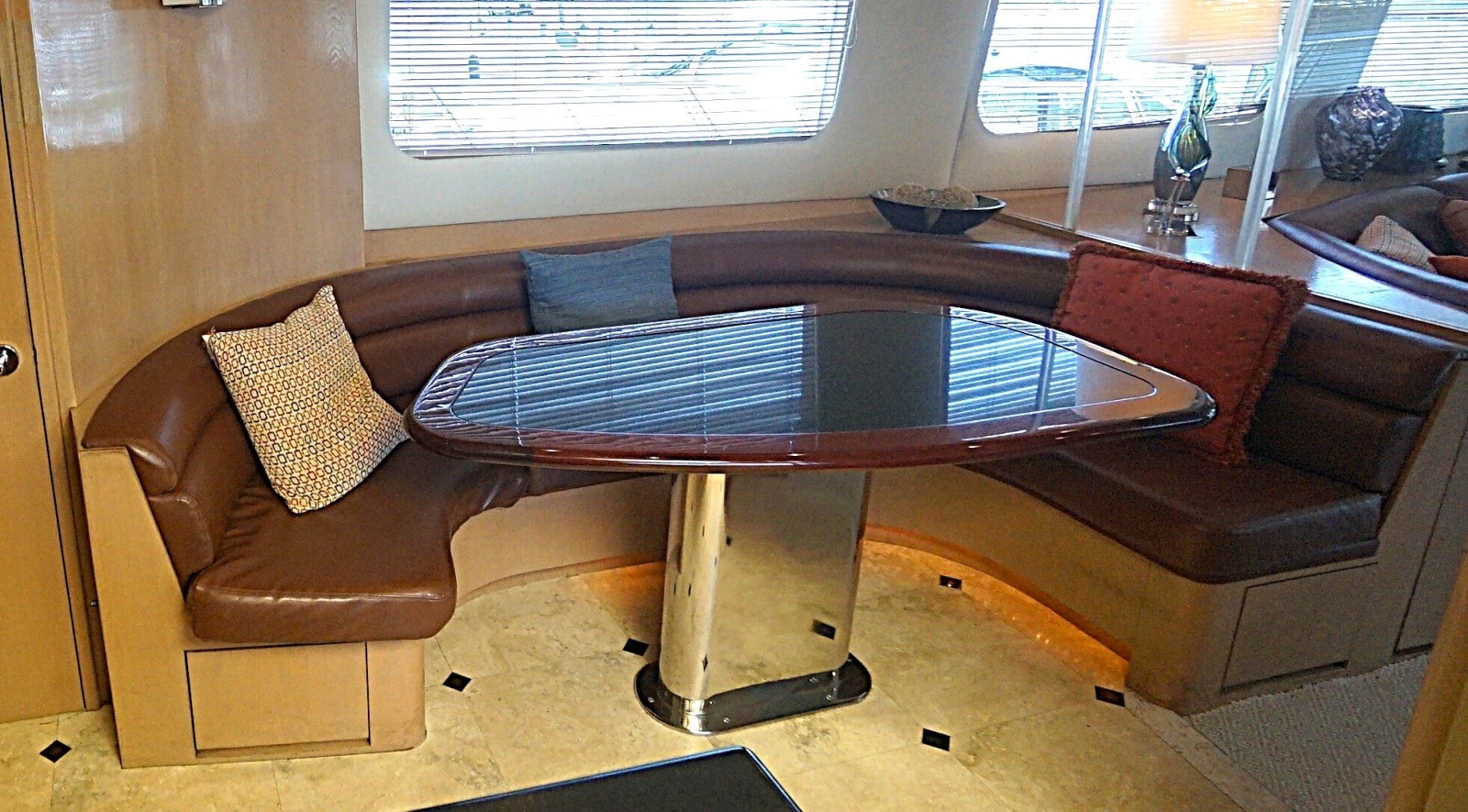

• Dinette

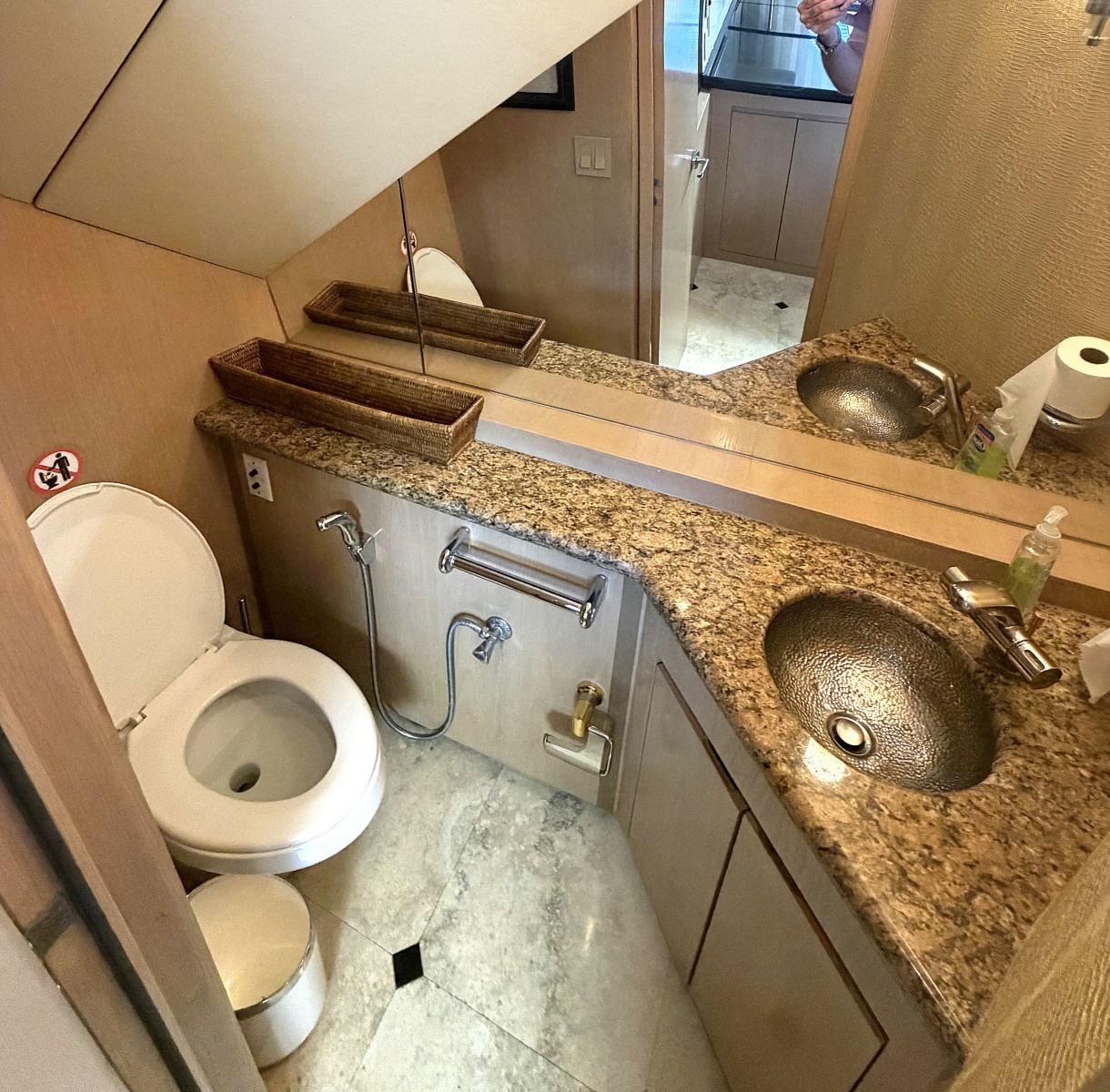

• Day Head

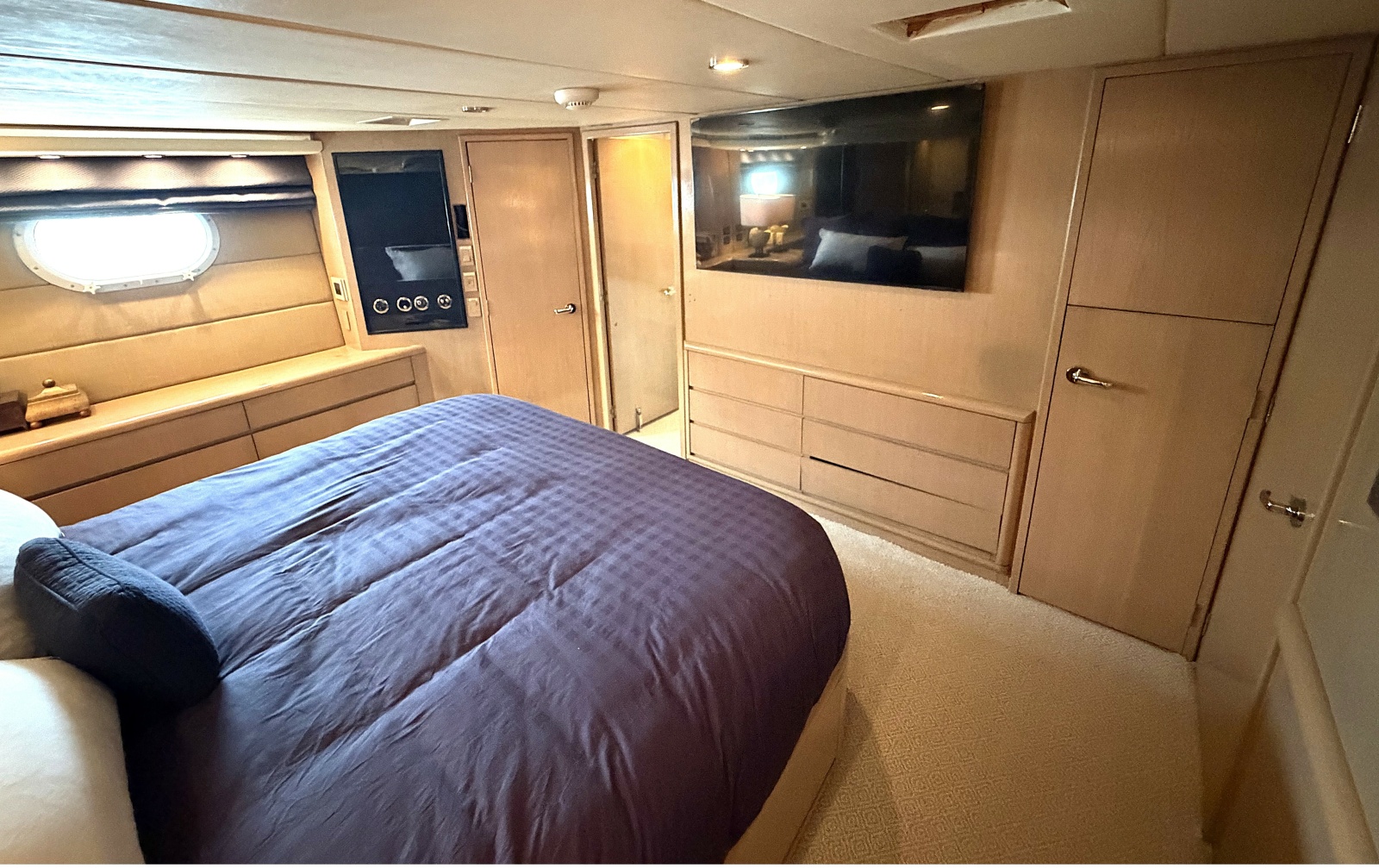

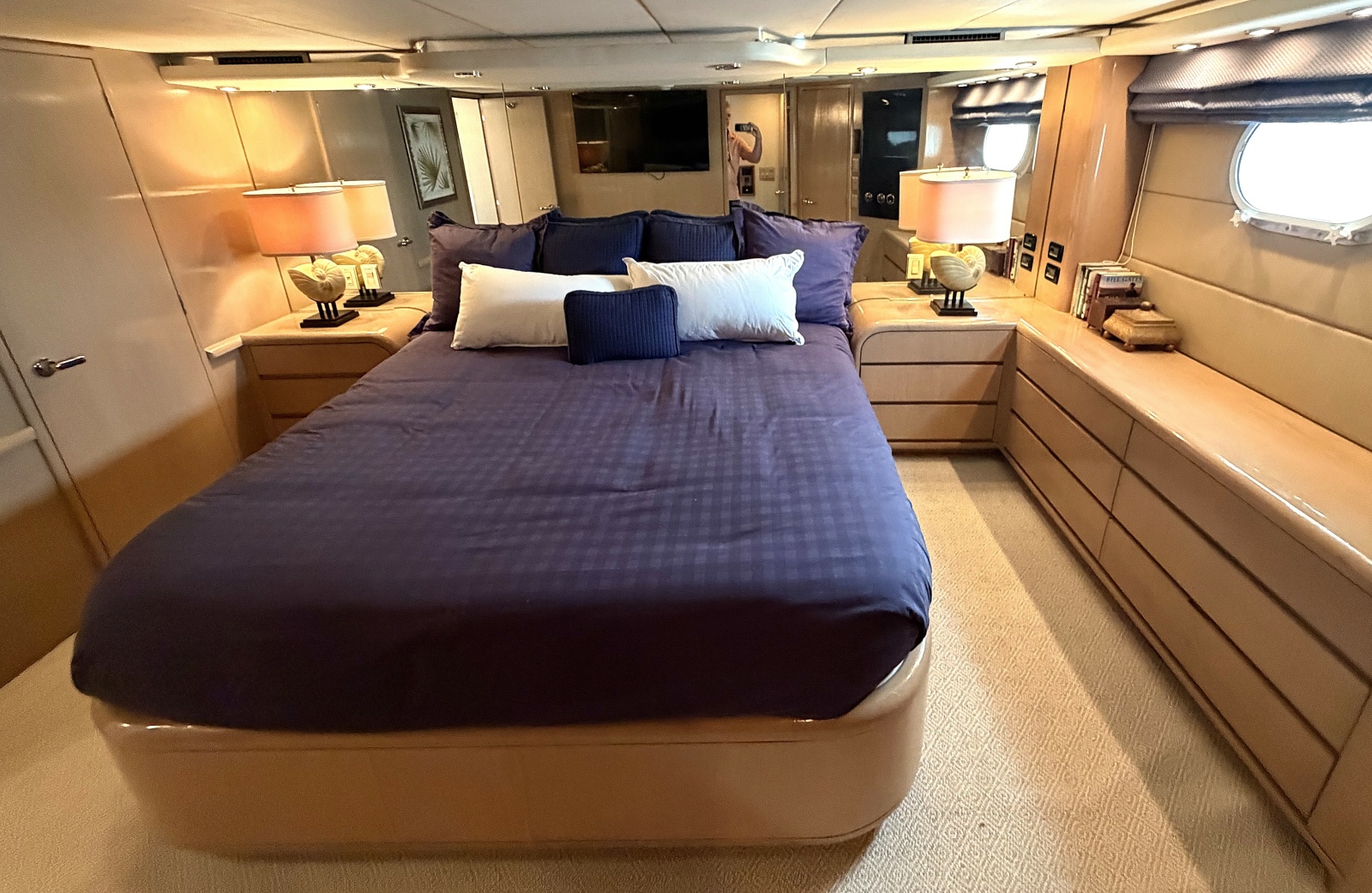

LOWER DECK MASTER STATEROOM
• King-size berth with upholstered headboard and storage drawers below
• (2) Built-in nightstands with (2) new shell lamps
• Built-in dresser with ample drawer space
• Zeno mattress
• Mirrored bulkhead
• (2) Cedar-lined walk-in hanging lockers
• Built-in safe in closet
• Custom pleated Roman shades
• CTM A/C controls

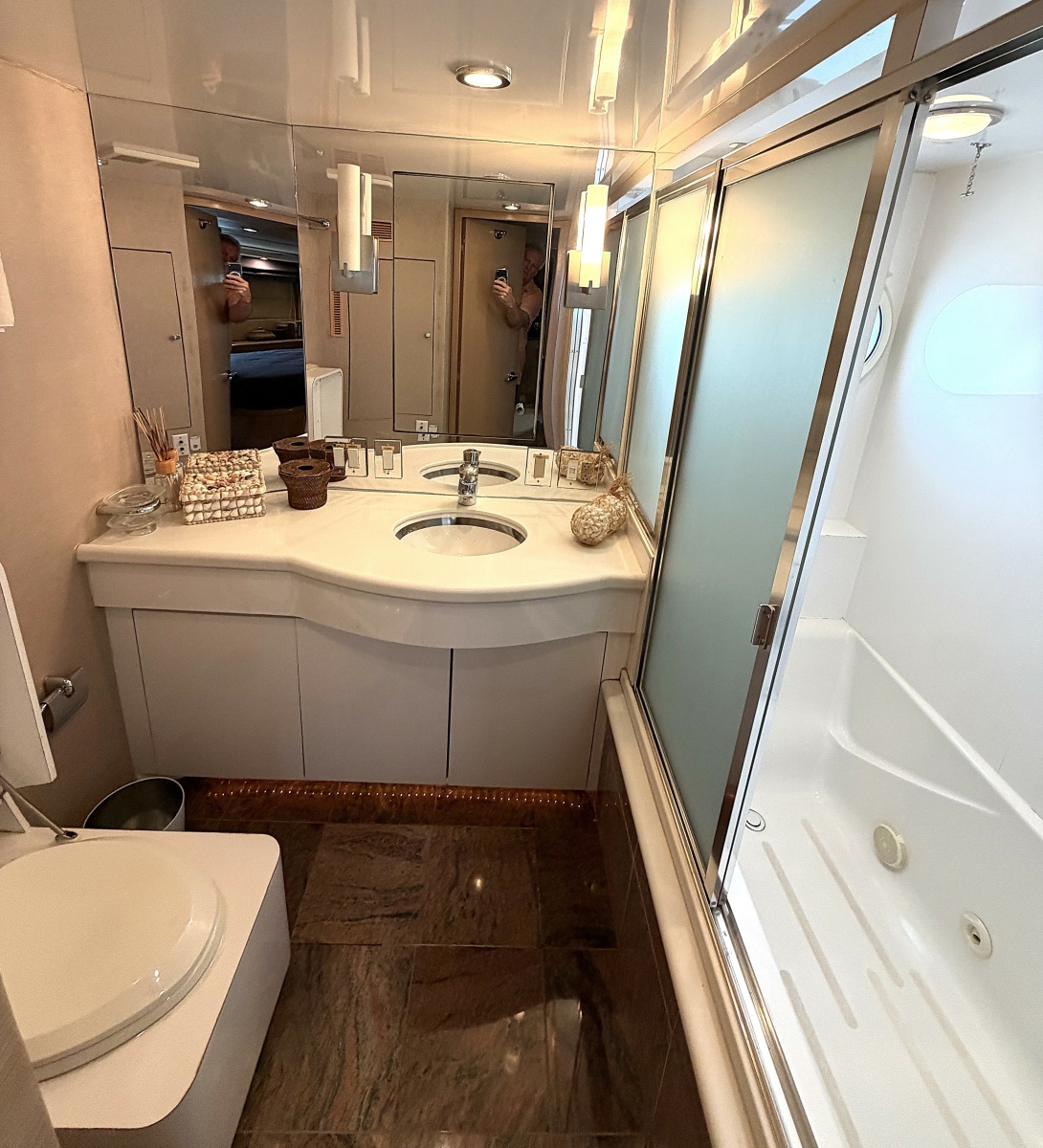

• Private bath with marble flooring, Corian vanity top, Jacuzzi tub/shower enclosure, mirror, wallcovering and head enclosure
• New Carpet - 2026
GUESTS

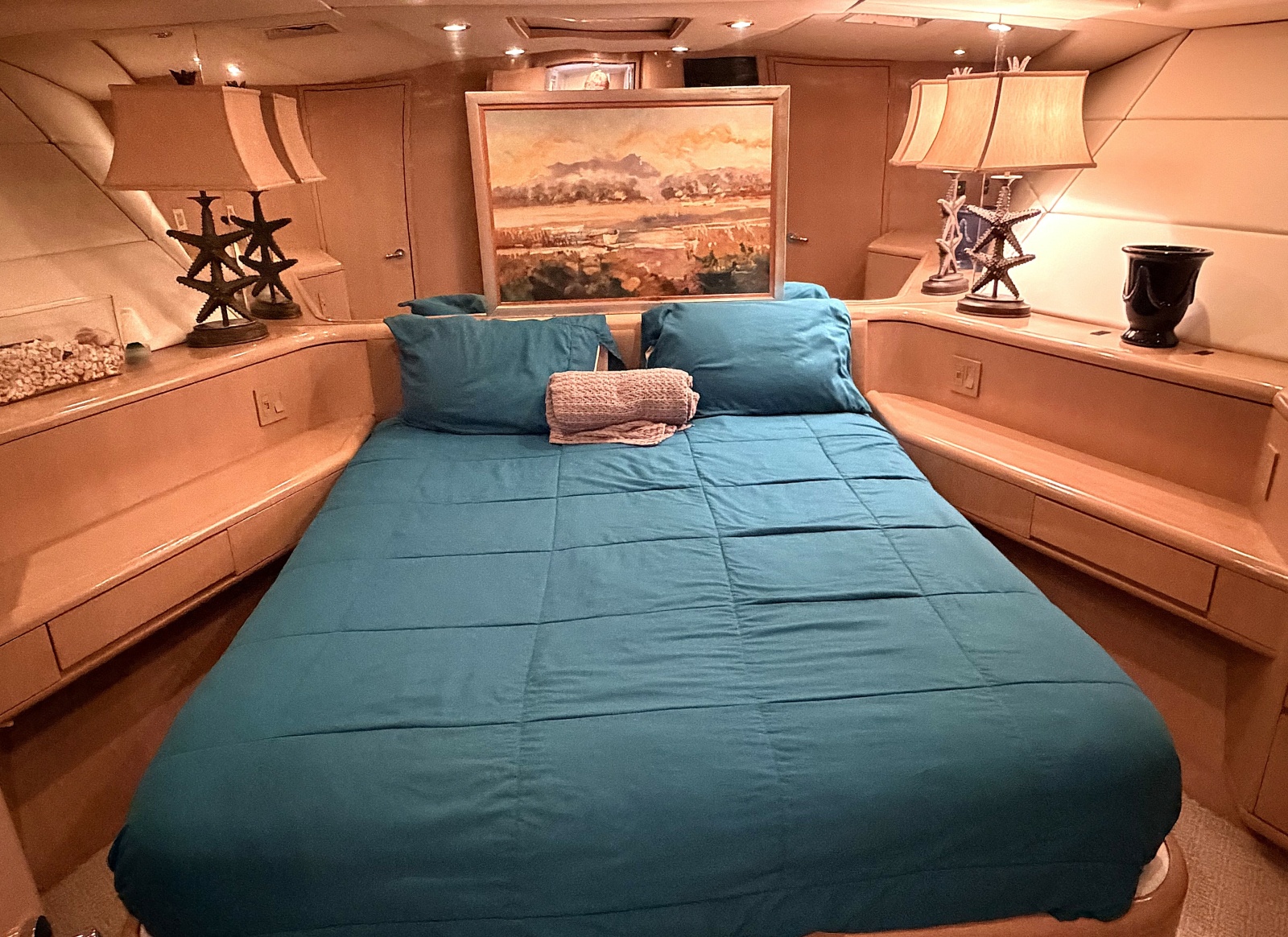

LOWER DECK VIP STATEROOM
• Queen berth centerline with drawer storage below
• Zeno mattress, comforter, shams and pillows
• Mirrored bulkhead
• (2) Starfish lamps
• Built-in cabinets with drawer storage
• Overhead lighting
• Escape hatch
• CTM A/C controls
• New carpet - 2026

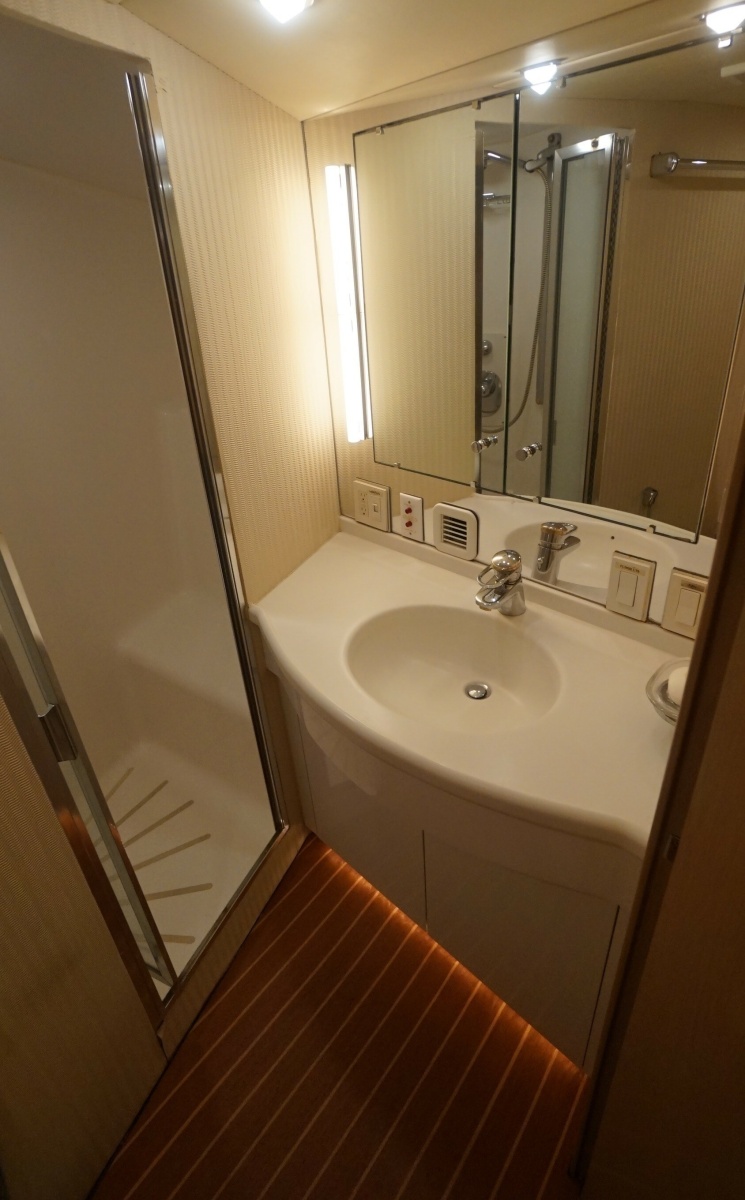

• Private head with vanity, shower, wall
covering, Amtico flooring

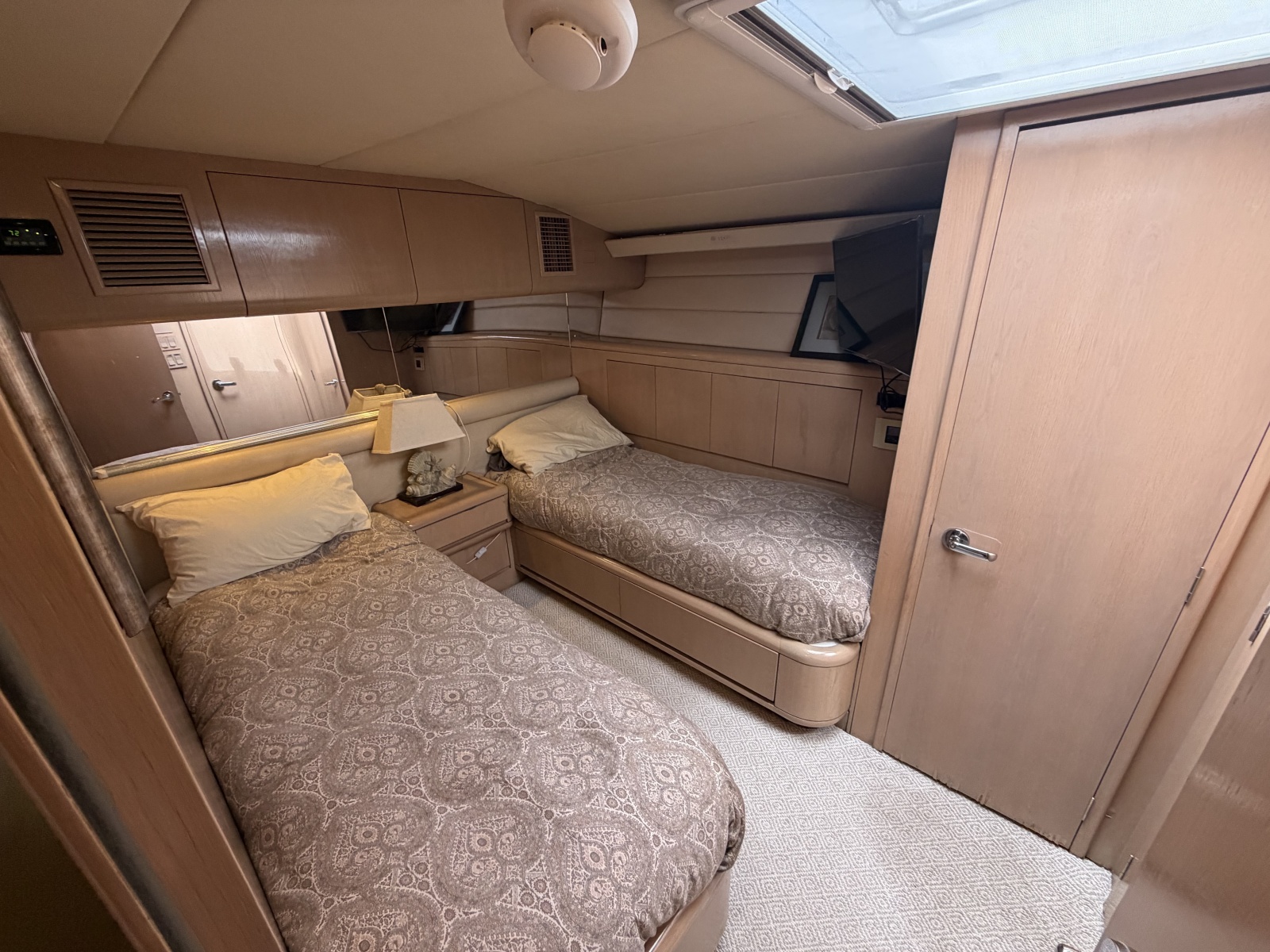

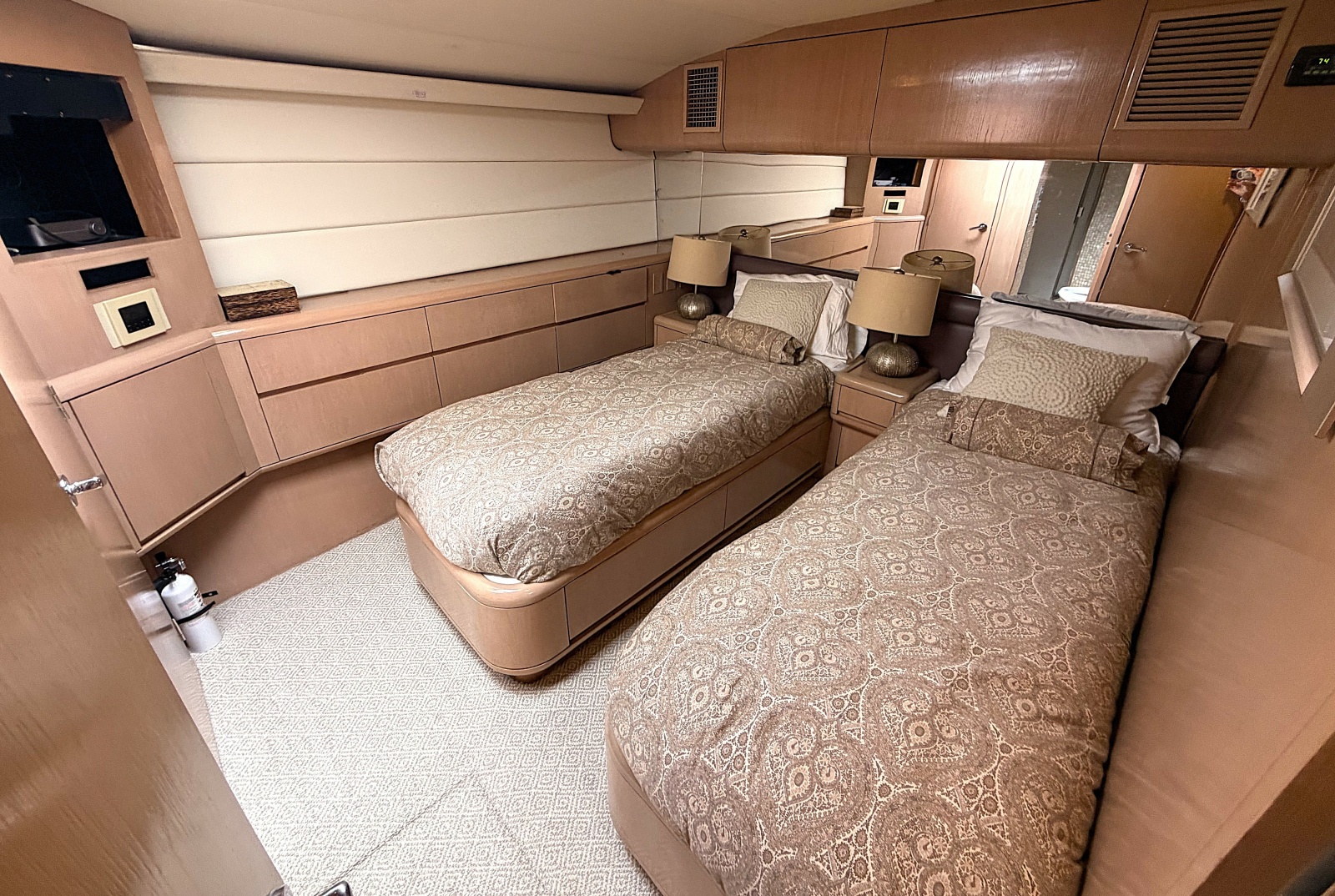

LOWER DECK (2) TWIN GUEST STATEROOMS
• Port and Starboard
• Twin berths in each stateroom slide together to convert into a double berth
• Zeno mattress, comforter, shams, and pillows
• Built-in dresser and nightstand
• Mirrored bulkhead
• New carpet - 2026

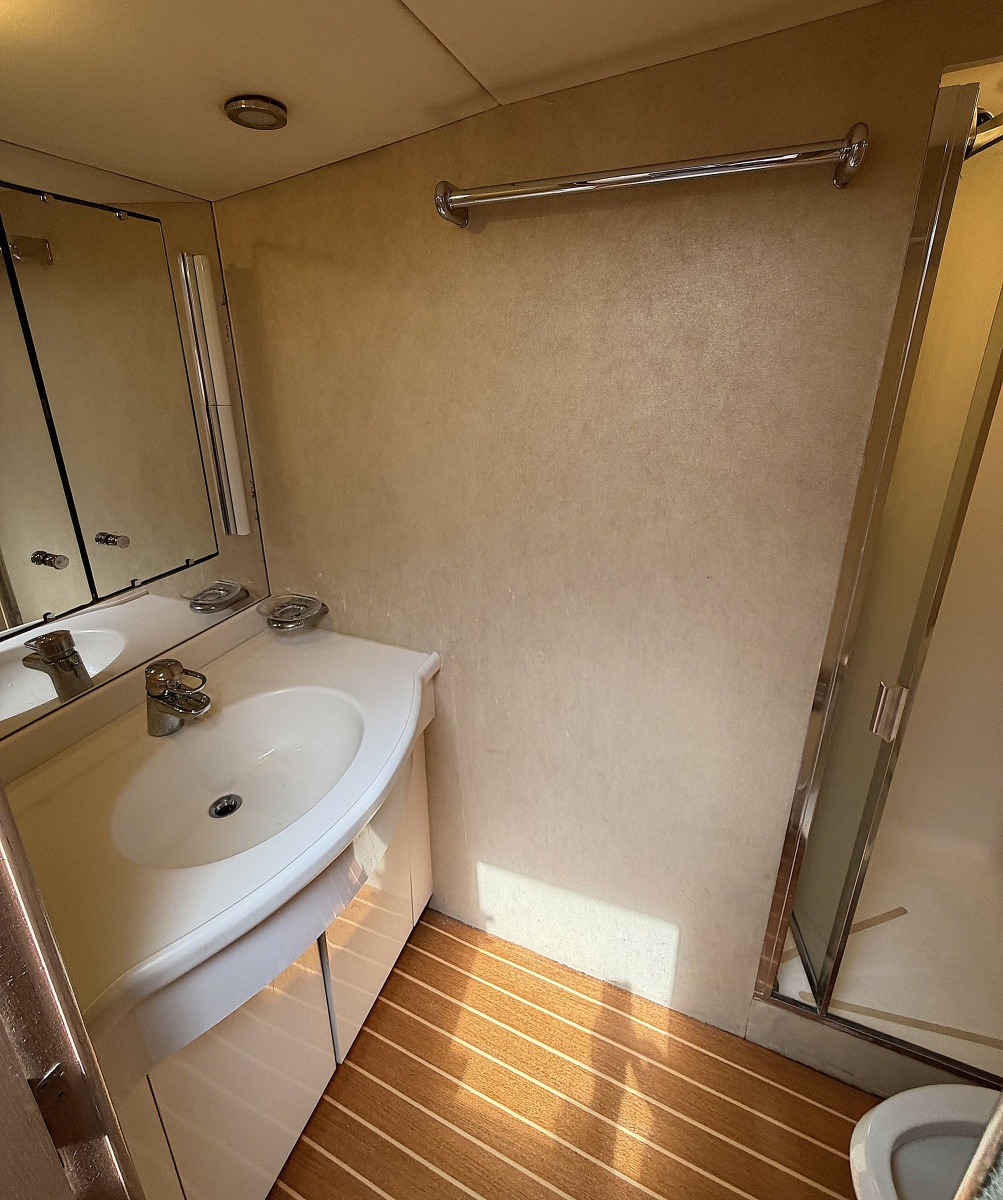

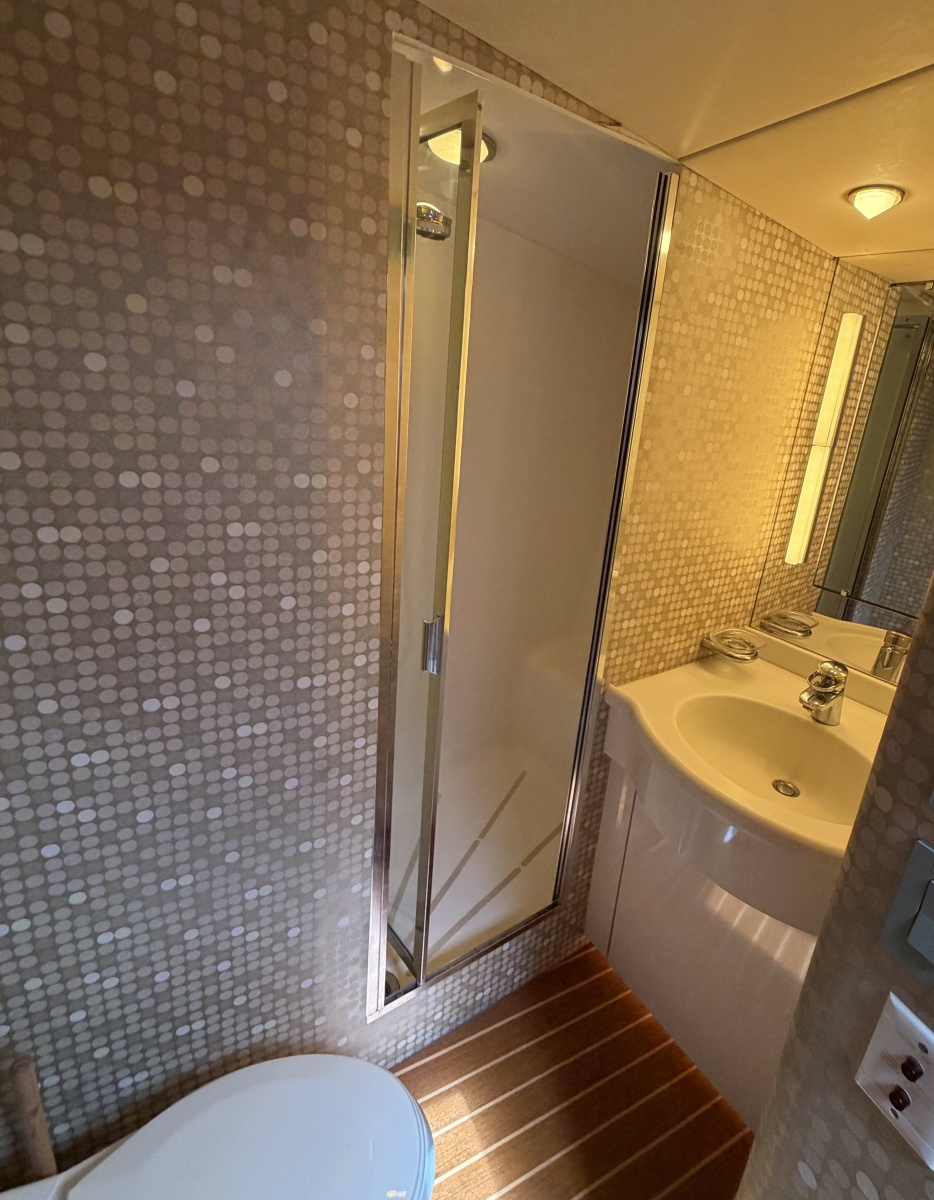

• Private bath with vanity, shower, wall covering, and Amtico flooring

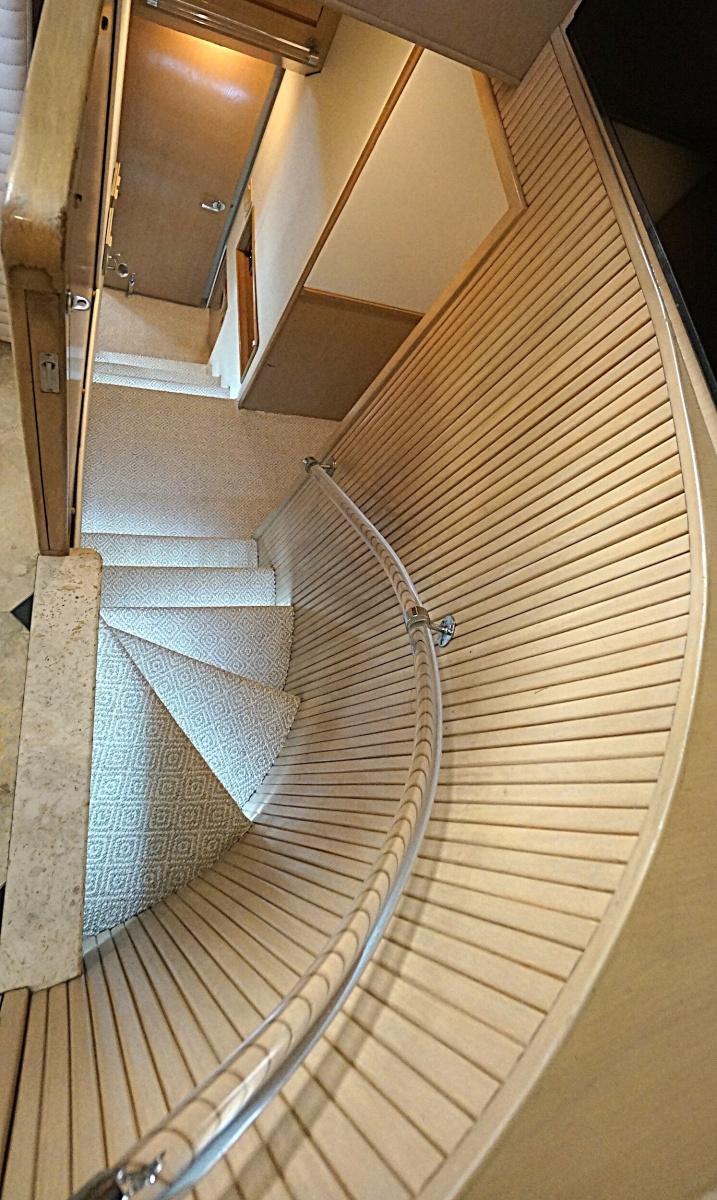

LOWER COMPANIONWAY

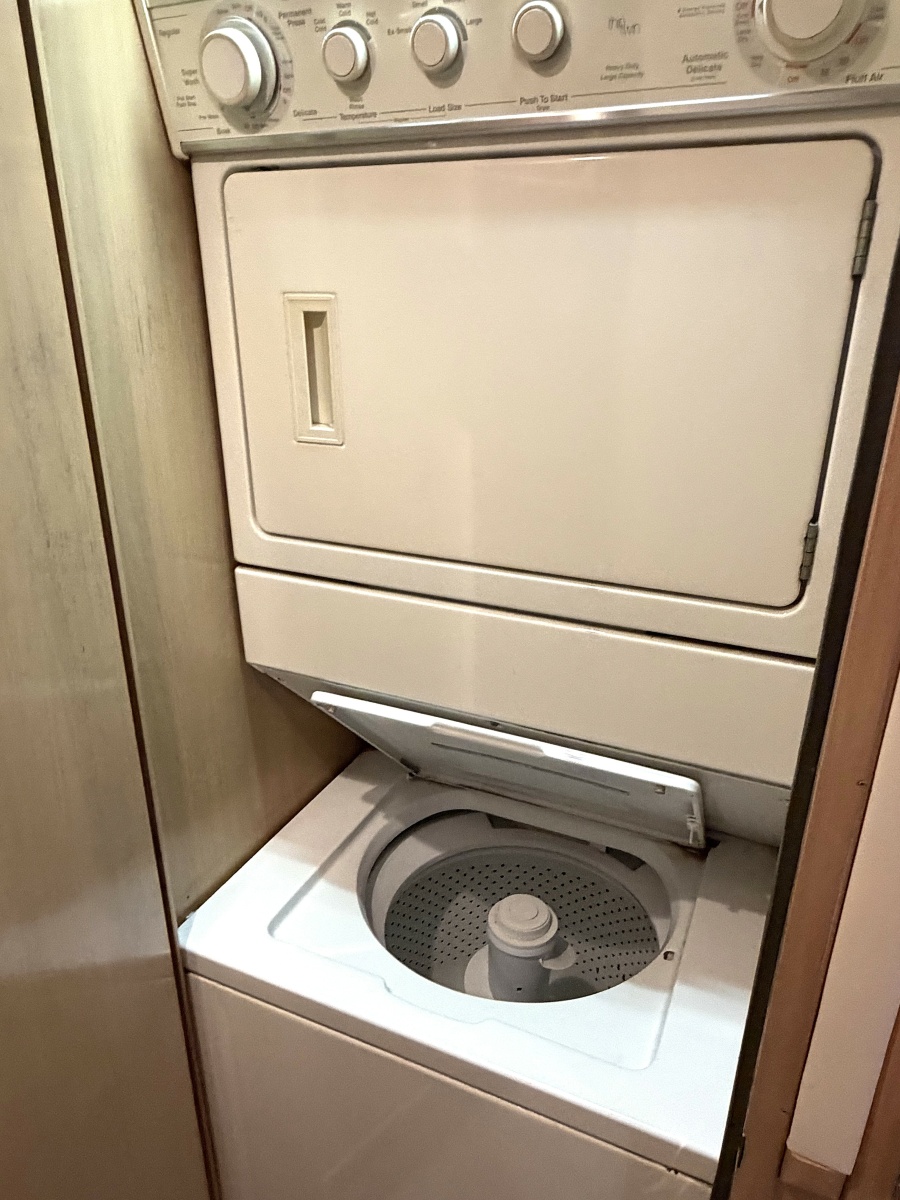

• Thin twin stacked washer/dryer
• Cedar-lined linen locker
• New carpet - 2026
CREW
• Cabin: Port side enclosed bunk beds with enclosed head
• Crew Mess : L-shaped seating that can act as a bunk bed for a third crew member
UPGRADES
2025/2026:
All new electronics - 2026
New carpet throughout - 2026
(3) New CTM CW-60 Hz A/C Compressors - 60,000 BTUs each
New air handles
All new CTM A/C controls
New upholstered wall panels in Hallway and Guest Staterooms
All new TVs
2020/2024:
Bottom painted and Propspeed applied– October 2024
All new smoke detectors – January 2024
New house batteries – January 2024
(3) new bow thruster joy sticks– January 2024
New exhaust system by Design Engineered Solutions (D.E.S) – $130,000 upgrade - February 2023
New exhaust spray rings by D'Angelo Exhaust – February 2023
New non-skid on the Aft Deck – January 2023
All new fans and damper controls in Engine Room – January 2023
(2) new isolation transformers – January 2023
Fire equipment updated by Fireline
New steering lines
New galley air handlers
New and rebuilt engine monitors and shutdown systems
Cockpit and Swim Platform teak decks removed and replaced with non-skid decks
All new thru-hull sea valves
Stabilizers serviced
New steering hoses and steering pump seals
Engines and generators fully serviced
2019:
Port side Delta-T fan replaced
New sea power converter
Port engine injectors cleaned and serviced
Furuno F170 AIS System installed
2018:
New electric fuel pump for the main generator
New heat exchanger for the port generator
New tachometer installed on the starboard main engine
Port main engine plate cooler cleaned
Port stabilizer potentiometer replaced
Starboard batteries replaced
Starboard battery charger replaced by Tess Electric
Stainless-steel braided hose to the mixer gauges replaced
New turbo ring installed on the starboard main engine by Metcalf Marine
New compensator installed on the starboard exhaust in the crew area
New temperature switches installed in the fiberglass exhaust pipes in the crew area
Starboard crossover pipe and stainless-steel crush ring installed by Metcalf Marine
Both generator heat exchangers cleaned
Port auxiliary gear control plug replaced by Tess Marine Electric
Crew toilet macerator pump relay replaced
Crew macerator pump rebuilt
VIP toilet discharge line repaired
Starboard crossover pipe and mixer repaired
Turbo rings removed and refurbished
New thermostat installed in the crew area
Port crew bilge control box rebuilt
Bolts and gaskets replaced on both gearbox oil coolers
Starboard shore cord storage system control switch replaced
3” check valve replaced on the port main engine
Damaged cushion clamps replaced outboard of the port gearbox
New flush timer installed on the starboard guest toilet
Generator wood base replaced
Stabilizer hydraulic hoses replaced by Mendel Marine
Most steering system hoses replaced by Mendel Marine
Both main engine fuel coolers cleaned
Port main engine crossover removed by Metcalf Marine
New interior wall panels
New salon chairs and accent pillows
New davit motor
Davit repainted
Various fresh and raw water pumps replaced
Cockpit bilge tanks cleaned
Various paint touch-ups completed
Engine alignment performed
Propellers removed, balanced, and reinstalled
Shafts pulled, rebedded, and fitted with new shaft seals
Cockpit step halogen lighting converted to LED
Cockpit floodlight repaired
Cockpit grill lighting replaced with 230V bulbs
Shaft bearings replaced
Rudder bearings replaced
Fuel booster pump replaced on the starboard generator
Crew cabin bilge pump replaced
No. 1 Racor filter in the transfer system rebuilt
Engine room DC halogen lighting converted to LED
2017
Air-conditioning system serviced
New Shakespeare 390 SSB 23-foot antenna
New Shakespeare 5208-R VHF 23-foot antenna
New watermaker membranes
New water heater
New fire extinguishers and engine room fire suppression system
Partial interior refit in the main salon
Davit serviced and repaired
New stabilizer seals
New caulking around bridge windows
New bow hatches
New deck lighting throughout the main deck and cockpit
Engine room bilge tanks cleaned
Four (4) new 8D batteries installed on the port side
Port shore power converter rebuilt
Ballast replaced in the port inboard aft engine room fluorescent light
Engine room bilges professionally cleaned by MWM
Tender davit rebuilt by Signature Marine
Spray rail repairs completed
Crew quarters steps rebuilt
Battery condition meter replaced on Distribution Panel No. 2
2012
USD 1.6 million in upgrades, including:
New generators
Rebuilt engines
Vessel painted from waterline up
New interior
New appliances
EXCLUSIONS
Tenders: DL 17 Caribe with Yamaha 90 Hp, 2023
Exclusions include all of Owner's personal effects
DISCLAIMER
"All speeds, capacities, consumption, etc. are approximate or estimated; measurements can also be approximate. Specifications are provided for information only and particulars herein obtained from sources believed to be correct, but are not guaranteed. Buyer should instruct his agent and/or surveyor to check all details for accuracy. Offered subject to prior sale, price and/or inventory change, or withdrawal from the market without notification."
Listing MLS by Yachtr.com
Speak with us
Send your inquiry below, or reach out directly — we’ll respond within one business day.
